Hydranti COBALT 3-Stage UF Filtration System
Model: H-COB-3UF
Package Contents
(Pictures not to scale)

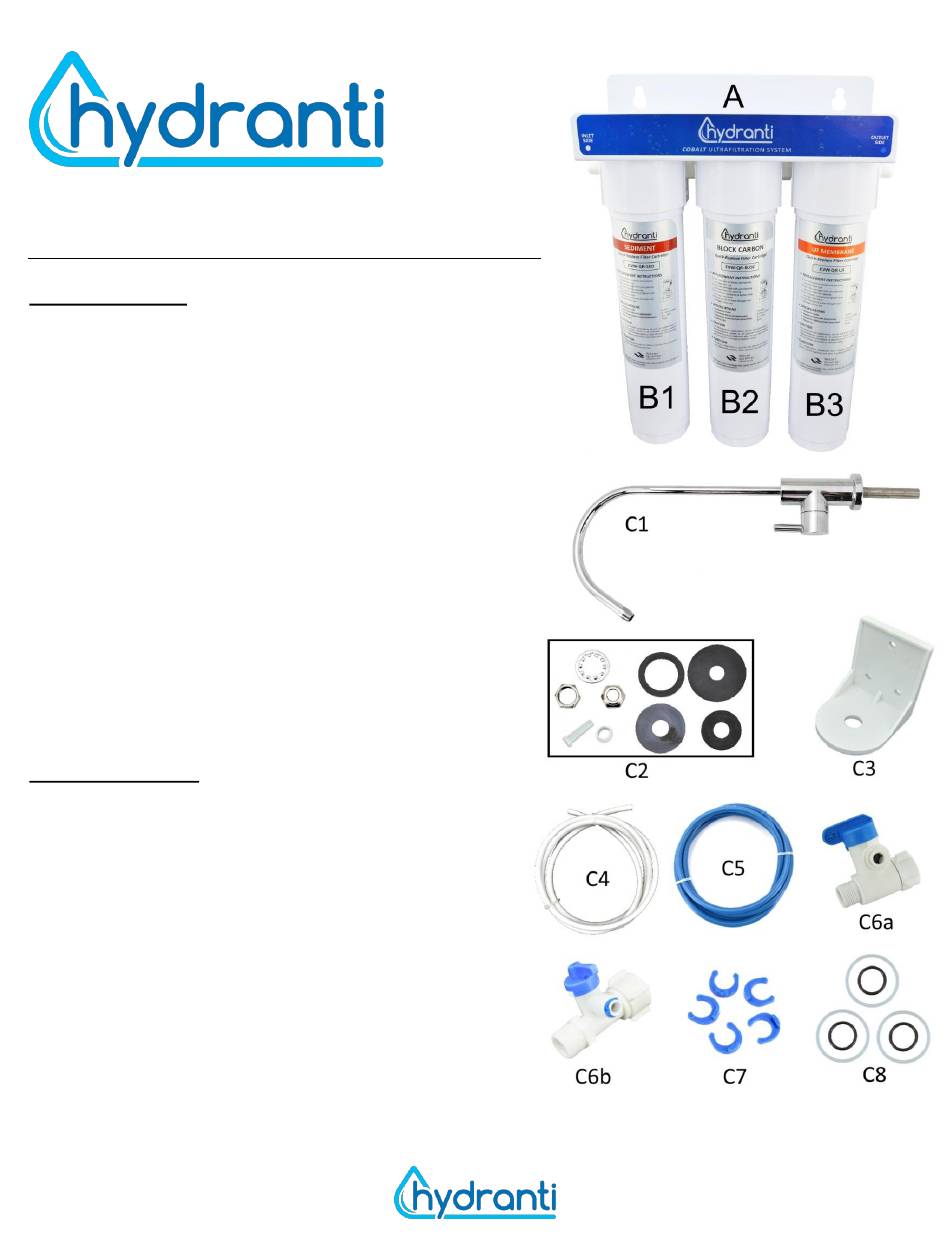

(A). Triple Stage Head
(B). Twist-Lock Cartridges
(B1) PP Sediment Cartridge: EVW-QR-SED (RED)
(B2) Block Carbon Cartridge: EVW-QR-BLOC (WHITE)
(B3) UF Cartridge: EVW-QR-UF (ORANGE)
(C). Installation Kit
(C1) Chrome Faucet
(C2) Faucet Assembly Kit
(C3) Faucet Mounting Bracket
(C4) White 1/4" Tubing – 5 ft. (INLET)
(C5) Blue 1/4" Tubing – 5 ft. (OUTLET)
(C6) Kitchen Faucet Adapter Valves (use one)
a. John Guest
Hydranti Adapter Valve (1/2")
b.
(C7) Clips for Tubing Connections
(C8) Spare O-Rings for Filter Cartridges
Tools and Materials
•
Adjustable Wrench
•
Tape Measure
•
Safety Glasses
•
Masking Tape
•
Newspaper or Towels
•
Bucket or Pan
•
1/8" Drill Bit
•
Center Punch
•
Drill with 1/4" & 9/16", or 5/8" Drill Bits
•
7/8" to 1" Philips Screw – (2) – OPTIONAL
•
Philips Screwdriver – OPTIONAL
•
Hollow-Wall Anchor Bolts or Toggle Bolts –
OPTIONAL
PASVPP1 (3/8")
Advertisement
Table of Contents
Summary of Contents for Hydranti COBALT H-COB-3UF
- Page 1 Hydranti COBALT 3-Stage UF Filtration System Model: H-COB-3UF Package Contents (Pictures not to scale) (A). Triple Stage Head (B). Twist-Lock Cartridges (B1) PP Sediment Cartridge: EVW-QR-SED (RED) (B2) Block Carbon Cartridge: EVW-QR-BLOC (WHITE) (B3) UF Cartridge: EVW-QR-UF (ORANGE) (C). Installation Kit...
- Page 2 Kitchen Faucet Adapter (C6a / C6b). • Ensure you have all appropriate fasteners and adapters to fit your plumbing. • Watch our installation video if you are unsure of what to do at any point during installation: https://www.hydranti.com/cobalt-uf-installation Hydranti Filtration hydranti.com...
- Page 3 Step 1 Mount Auxiliary Faucet Note: This faucet is designed to fit a 9/16” hole. Most standard sinks come with 1-3/8” or 1-1/2” diameter water sprayer holes that can be used to mount this faucet. If the pre-drilled holes cannot be used or are not in the desired position, a new hole must be drilled using either a 9/16”...
- Page 4 Step 3 Mount the System Head 1. Select an easily accessible area under the sink to mount the filter system. 2. Note: Mount system to a solid cabinet wall or wall. If this is not an option, use toggle bolts or hollow-wall anchor bolts (not included) to secure the system to the surface.
- Page 5 Step 5 Install Blue Plastic Tubing for Water Supply Line from System Head Outlet to Faucet 1. Determine the length of blue tubing (C5) necessary to connect the system head outlet to the threaded faucet stem making sure to allow enough tubing to prevent kinking in the line. 2.
- Page 6 Cartridge Replacement 1. Turn off the cold water shut-off valve to the filter system. 2. Place a bucket or pan under the filter system to catch any water drips. 3. Turn each cartridge clockwise until it releases. Gently pull each cartridge down to remove from the system head.
