OPERATORS MANUAL

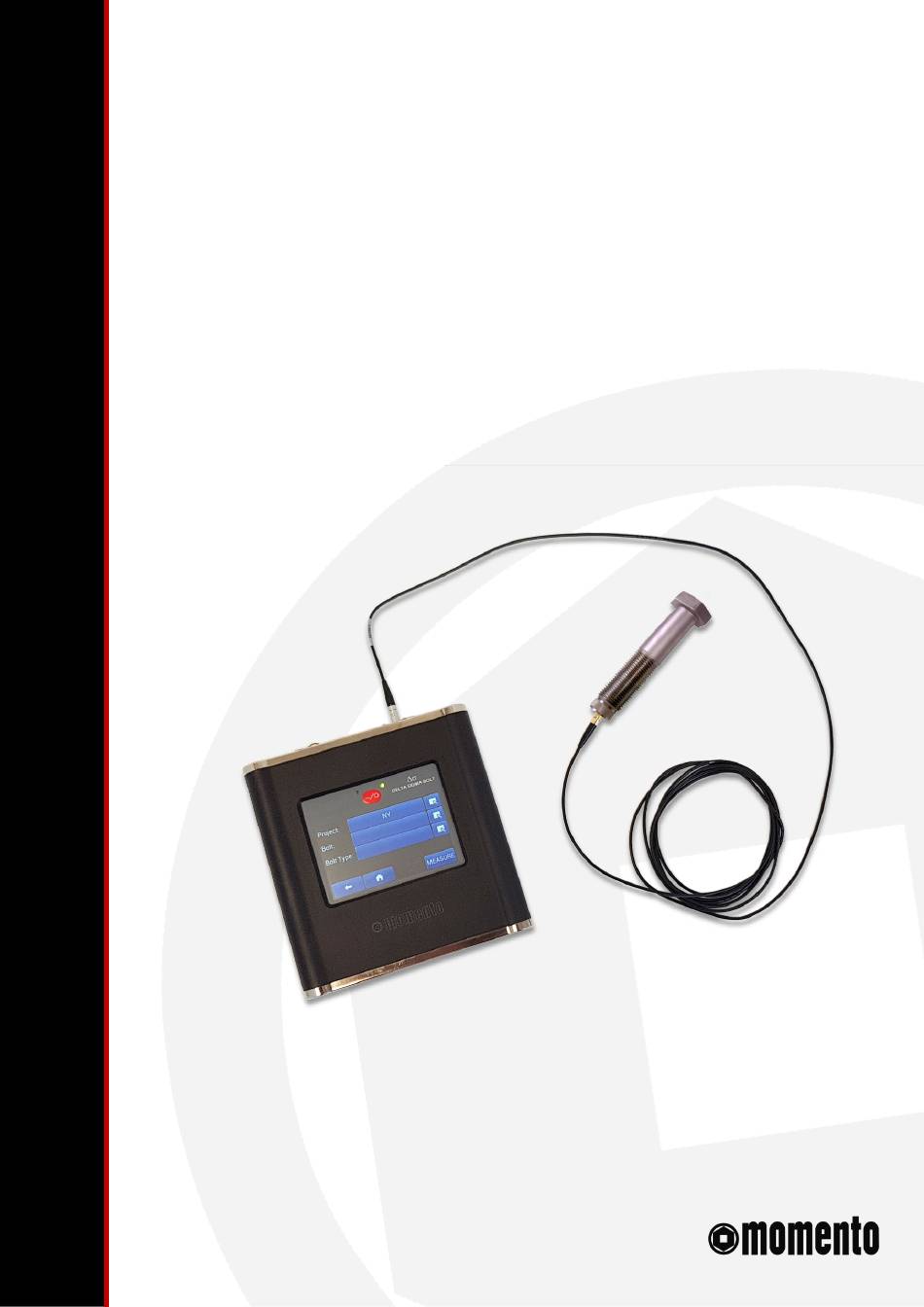

DELTA SIGMA Ultrasonic instrument
www.momento.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELTA SIGMA and is the answer not in the manual?

Questions and answers

Summary of Contents for Momento DELTA SIGMA

  • Page 1 OPERATORS MANUAL DELTA SIGMA Ultrasonic instrument www.momento.se...

  • Page 2: Table Of Contents

    EXPORT SYSTEM PROJECT DATA FROM THE DS TO A PC ..................20 IMPORTANT NOTES ON OPERATION OF THE DS SOFTWARE ................. 22 Specifications & Features: ................................23 Appendix A……………………………………………………………………………………………………………………………………………………………..24 Appendix B……………………………………………………………………………………………………………………………………………………………..25 Appendix C……………………………………………………………………………………………………………………………………………………………..26 Appendix D……………………………………………………………………………………………………………………………………………………………..27 Appendix E……………………………………………………………………………………………………………………………………………………………..28 Appendix F……………………………………………………………………………………………………………………………………………………………..30 Page: 1 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 3: Introduction

    The charger/battery system is designed for long, safe battery life, the charger will not over charge and the unit will re-set if a high current operation is call with low batteries. We highly recommend users to watch instruction videos, visit www.momento.se Page: 2 / 32...
  • Page 4 The Δσ pulse-echo ultrasonic time-of-flight measurement device; measures, displays, stores and transfers bolt load data. The Delta Sigma uses a sealed colour touch screen for all operator I/O. All data is entered and presented on a 4.3” colour, resistive touch screen. Data and digital signal traces are stored for later display and transfer.

  • Page 5: Operation Of The Ds

    (3 PIN LEMO) I/O PORT TRANSDUCER PORT PITCH / CATCH PORT: P-C (6 PIN LEMO) PULSE-ECHO: P/E (SINGLE PIN LEMO) (SINGLE PIN LEMO) EXTERNAL CHARGER PORT MINI-USB PORT Page: 4 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 6: Project / Bolt Data Files

    This information is stored in the Bolt Type File. A bolt type must be named and entered for bolts with different geometries, grip lengths and/or loading requirements. Page: 5 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 7 To shut off the instrument, press the POWER OFF button, and then press YES in order to power down the instrument. All data is automatically stored, so there is no risk of loosing data by powering down the instrument. Page: 6 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 8: Setup Screen

    2.3 SETUP SCREEN On your first screen you have an option to press SETUP in order to configure the Delta Sigma. You can backup your files. By entering this option you can select what • FILE BACKUP: projects you need to backup to drive B If you need to delete all stored data, Choose the the data you want to delete.

  • Page 9: Measurement Process

    NEW button. You will then enter the Project Data Screen as shown on the next page. Page: 8 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 10 The unit will use the receiver settings for the master bolt for all following bolts. NB: This is only to be used if the bolt group is homogenous. Page: 9 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 11 DAC 0% & DAC 100%: The DS will output a 0-10V DC analog signal from the I/O port. The value you enter for 100%, for example 0,1mm, means you will have 10V analogue output at 0,1mm elongationPress NEXT. Page: 10 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 12 Now, the project is named, the bolt type has been assigned to the bolt, you are now ready to start measuring bolts. This is the main bolt reading entry screen. Press the MEASURE button to start. Page: 11 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 13: Measure Bolts

    Standard Magnetic Transducer CONTINUE. Let the instrument work for a few seconds while it determines the best echo peak for this bolt. The LED-light will flash red/green while working. Page: 12 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 14 Ref Len scope traces are auto stored • ADJ If enabled, this will let you manually set the oscilloscope mode. • ACCEPT will store time reading and receiver settings. Page: 13 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 15 Once you have reached the required elongation, you press DONE and the elongation data is stored in the DS. Page: 14 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 16 In most standard bolts, you may never experience these geometry-based issue, the first echo back in a fastener is the end of the bolt. Page: 15 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 17: Measure New Bolt

    Type: button, you can select or enter a new bolt type. From the Bolt Info screen push the MEASURE Button and read data on the new bolt. Repeat bolt data input process. Page: 16 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 18: Export Excel Format Data From The Ds To A Pc

    You can generate files from all projects, but you must enter each project to do In the next screen you have the option to choose report type (short/medium/long), pending need for measurement data. Page: 17 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 19 Do not alter or enter these files, you will lose the stored scope traces, not the bolt data. Page: 18 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 20 It is not possible to export this excel data back to the DS. That is covered in next section. Also, in drive B are the system scope traces and the CSV/TSV formatted scope traces: Page: 19 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 21: Export System Project Data From The Ds To A Pc

    The $TYP folder contains all the Bolt Type data. 12. Paste folders to the Back Up folder you have created on your PC 13. Unplug USB cable 14. Go back to MAIN and continue. Page: 20 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 22 The DS will overwrite any Project data in secure memory! 9. RESTORE ALL bolt Types also. 10. Return to MAIN menu All Project and Bolt type data is ready to call up and re-read. Page: 21 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 23: Important Notes On Operation Of The Ds Software

    Materials Evaluation/44/April 1986, Glenn M.Light, Narayan R.Joshi, Soung-N.Liuc Page: 22 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 24: Specifications & Features

    Temperature transducer Class A PT100 • Microprocessor • 32-bit ARM® • Single shot • Time resolution to 0.1ns or better 100dB receiver • • Programmable pulser: amplitude, frequency, cycles Page: 23 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 25 Real time clock – date-time stored with every reading Sleep mode and auto shut off • Continuous read on bolt Power/sleep LED • Designed and manufactured in the USA • Page: 24 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 26: Appendix A

    AE SPECIFICATIONS 1038 Gr.2 0.275 232000 5892800 29.9 Gr.5 0.275 232000 5892800 29.9 Gr.6 0.277 232000 5892800 29.9 Gr.8 0.274 232000 5892800 29.9 Gr.9 0.275 232000 5892800 29.9 Page: 25 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 27: Appendix B

    4. Place a cover of plastic over the newly glued transducer, place a magnet or weight on top of it to let it harden. Leave for 5-10 minutes and remove plastic. 5. The bolt is now ready. Page: 26 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 28: Appendix C

    The results of the load factor calculation is now displayed on the load factor entry row (make sure to store the value by completeing the bolt type entry sequence) Page: 27 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 29 Engagement factor 1: 0,50 diameter to the clamp length Engagement factor 2: 0,40 Engagement factor 1: 0,50 Engagement factor 2: 0,50 Page: 28 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...

  • Page 30: Appendix E

    The value of the Modulus of Elasticity (Young’s Modulus), of the bolt material should be provided by the manufacturer of the bolts being tested. A tabulation of E for common bolt materials is presented in Appendix A. Page: 29 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
  • Page 31 A number of theories have been proposed as to the stressed length within the head of the bolt and the within the nut. However, testing by use of the calibration function of the Delta Sigma reveals that no single theory is valid for all bolt configurations.

  • Page 32: Appendix F

    3x3mm Glue-on transducers – P/N 3000-01 The glue-on transducers comes in sheets of 100 transducers. They are simply glued-on the bolts and tested by using the 4000-TC or 4000-RH cable. Page: 31 / 32 Document No: DELTA SIGMA-USM Version 4 Revision 3.94.2...
