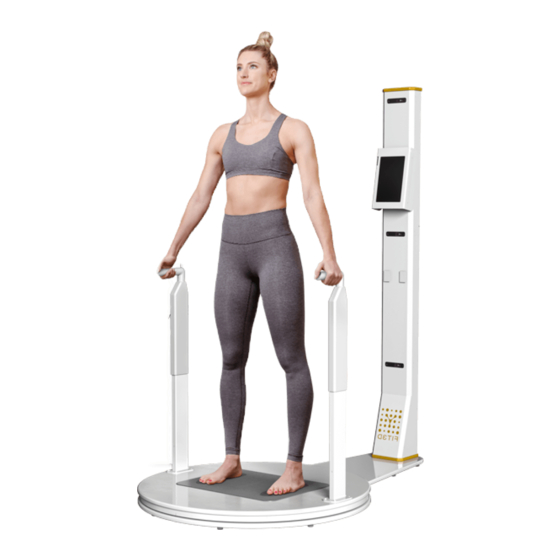

Fit3D ProScanner Setup Manual
  1. Manuals
  2. Brands
  3. Fit3D Manuals
  4. Scanner
  5. ProScanner
  6. Setup manual

Fit3D ProScanner Setup Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Enlarged version
ProScanner Setup Guide
This guide will walk you through the steps to get
your Fit3D ProScanner up and running.
?
QUESTIONS?
Visit our online help center at
support.fit3d.com
1

Select a Location

for the ProScanner
For the best scan quality, please ensure the
environment for ProScanner is appropriate.
The three most important factors are:
• Adequate spacing;
• No reflective surfaces;
• No natural sunlight.
Please see notes below for more info.
Adequate space is CRITICAL for scan
processing and accurate data. A clear
area 62 x 78 in (157 x 198 cm) is required.
at least
1-foot
(30 cm)
Spacing Advisory for ProScanner System
No reflective surfaces
in view of the cameras
Mirrors, glossy posters,
windows, and chrome
finishes can cause poor
quality scans and failures.
at least
1-foot
(30 cm)
No natural sunlight in
view of the cameras
Natural sunlight can
cause poor quality
scans and failures.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProScanner and is the answer not in the manual?

Questions and answers

Summary of Contents for Fit3D ProScanner

  • Page 1 ProScanner Setup Guide This guide will walk you through the steps to get your Fit3D ProScanner up and running. QUESTIONS? Visit our online help center at support.fit3d.com Select a Location for the ProScanner For the best scan quality, please ensure the environment for ProScanner is appropriate.
  • Page 2 Prepare the Camera Tower Assembly Unfold camera tower Hook and push both Carefully insert the camera to stand upright latches down to secure tower into the base Camera Tower Carefully Attach 4 thumb nuts to Raise the secure camera tower Tower Attach the Camera Tower to the Turntable Ensure connection...
  • Page 3 Prepare the Camera Tower Assembly Set the tablet into the bezel Attach the left and right Connect the USB Type-C mounting brackets to the bezel and Type-A angle adapters as shown with four of the included screws Route the cables underneath Connect the tablet power supply and the USB cable to the the mounting bracket as adapters.
  • Page 4 All of the lights on the camera tower will illuminate and the turntable will begin to rotate When you power the ProScanner on for the first time, the turntable will spin around once and stop facing the camera tower. On the back panel, you should only see the blue light...
