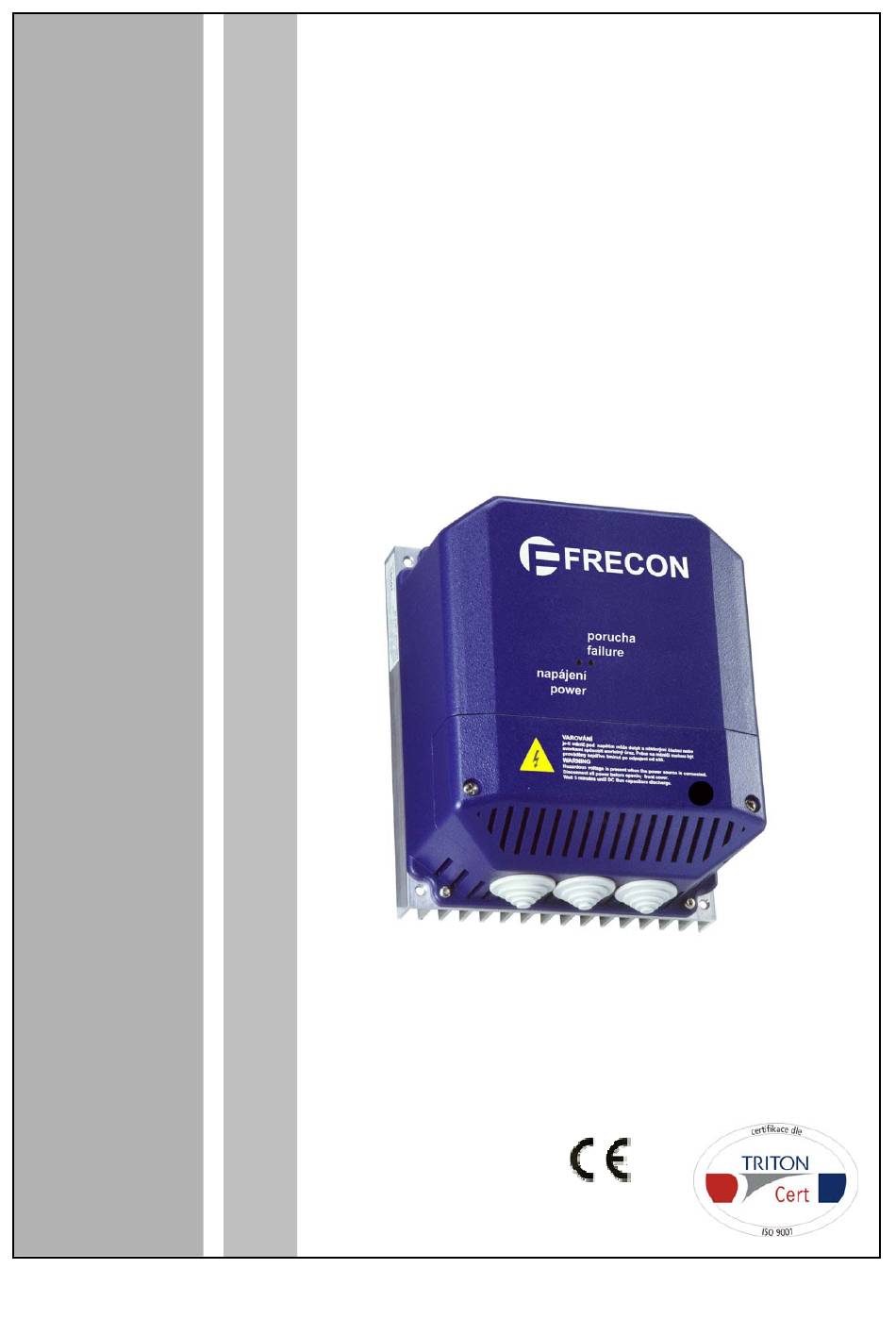

FRECON
FIA-L18, 37, 55, 75, 110, 150, 220, 250
PROGRAMMABLE SPEED DRIVES
FOR
STANDARD AC INDUCTION MOTORS
0,18kW TO 2,5kW
INSTALLATION AND USER MANUAL
FRECON, spol. s r.o.
Hodkovická 115, 142 00 Praha 4, CZECH REPUBLIC
tel.: +420-241 71 32 44-45 fax: +420-241 72 10 52 E-mail: info@frecon.cz http://www.frecon.cz
Advertisement
Table of Contents
Summary of Contents for Frecon FIA-L18
- Page 1 FIA-L18, 37, 55, 75, 110, 150, 220, 250 PROGRAMMABLE SPEED DRIVES STANDARD AC INDUCTION MOTORS 0,18kW TO 2,5kW INSTALLATION AND USER MANUAL FRECON, spol. s r.o. Hodkovická 115, 142 00 Praha 4, CZECH REPUBLIC tel.: +420-241 71 32 44-45 fax: +420-241 72 10 52 E-mail: info@frecon.cz http://www.frecon.cz...
- Page 2 All units have passed FRECON´S quality control standards and conform within tolerance to the enclosed specifications. ENTIRE CONTENS COPYRIGHT FRECON s.r.o. ALL RIGHTS RESERVED, REPRODUCTION IN WHOLE OR IN PARTS WITHOUT PERMISSION IS PROHIBITED. FRECON FIA-L IS A PRODUCT OF FRECON...
-
Page 3: General Characteristics
• Motor speed continuous - controlled from 0Hz to 125Hz (option - up to 500Hz) • Logic and analogue inputs for remote control • FRECON MINITERMINAL - control pod : combines keypad and display, operational functions of the drive can be changed from the keypad. -
Page 4: Electrical Installation
4. Mechanical installation 4.1. Location The installation must be located in a place free from dust; corrosive vapours; gases and all liquids. Care must also be taken to avoid condensation of vaporised liquids, including atmospheric moisture. 4.2. IP rating IP 20 or IP 00 (e.g. location in a switchboard ) or IP 54 4.3. -
Page 5: Motor Speed
Output voltage of the drive FRECON FIA - L : 3 x 230 V ! MOTOR WINDING CONNECTION MUST BE COMPATIBLE WITH THIS VOLTAGE ! IN THE MOST CASES : DELTA CONNECTION 5.2. -
Page 6: Control Connections
5.3. Control connections 5.3.1. Connection procedure • remove the front panel that is secured with screws. • for control connections use cable of 0,5 mm screened • connection cable should enter at bottom. • connect screen to earth at the drive only . •... -
Page 7: Operating Procedures
7. Operating procedures CHECK THAT : The motor rating is compatible with the drive rating The motor winding connection is compatible with the drive output voltage (refer to chapter 5; section 1.3.) AC input power circuit breaker of the correct rating is installed upstream on the low voltage switch - board (refer to chapter 5, section 1.2.) the drive is firmly attached in an upright position and is properly ventilated 7.1. - Page 8 Reset mode is set by parameter "CRTR" (refer to user manual for the MINITERMINAL) NOTE : restart of the drive ("START" signal activation) is recommended when the motor is stopped ! 9. Options 9.1. FRECON MINITERMINAL (control pod) Combines keypad and display functions : • local /remote control selection •...
-
Page 9: Braking Unit
A decelerating AC motor regenerates energy into the inverter drive. This energy can only be dissipated within the drive, it cannot be returned to the AC supply by the FRECON unit. If the regenerated power is less than approx. 4% of rated drive power, the braking unit is not necessary to use. - Page 10 Input cable into the filter (filtered cable) and no control circuit should be run parallel to an unscreened motor cable or unfiltered supply cable with a spacing less than 0,3 m and over a distance exceeding 1m. refer to user manual for the speed drive FRECON FIA-L/PI 9.5. PI controller: With spec.
