AutoConnect AC100GPS3G Quick Install Manual

12V
ONLY!
STEP 1
Determine Installation Type and Options
Depending upon the requirements, the AC100GPS3G module can be installed
in two ways.
Type1 – AC100GPS3G GPS Tracking ONLY!
Type2 – AC100GPS3G GPS Tracking with starter kill and/or input
STEP 2
Complete the wire connections according to the selected installation type
Please see the install diagrams for detailed instructions and wiring.
Red: 12 Volts (+) Constant
White: Ignition (+) (MUST be a true ignition source)
Black: Ground
Green: Starter Disable Output (-)
GROUND MUST BE CONNECTED DIRECTLY TO CHASSIS WITH PAINT REMOVED
STEP 3
Position the AC100GPS3G Module in an Optimal Location
Failure to adhere to these suggestions will result in a weak cellular and/or GPS signal and will
affect the performance of the device.
• Secure in upper portion of dash in a hidden location with correct side pointing
skyward (label will indicate proper orientation). Example: Above instrument cluster.
• Do not cover with metal or position near any source of interference (Vehicle Radio, BCM).
Keep a safe distance of at least 24".
STEP 4 Confirm LED Status
B u l : e F a l h s n i g C o n n
Green: 1 Flash / Second Valid GPS
For live Tech Support:
Call Certified Tracking Solutions
1.780.391.3800
CALL
Toll Free 1.855.287.4477
NO W
1
8AM to 5PM
CERTIFIED
TRACKING
SOLUTIONS
Monday to Friday MST
Yellow: Input 1(-) Optional
e c e t d / O n n i l e

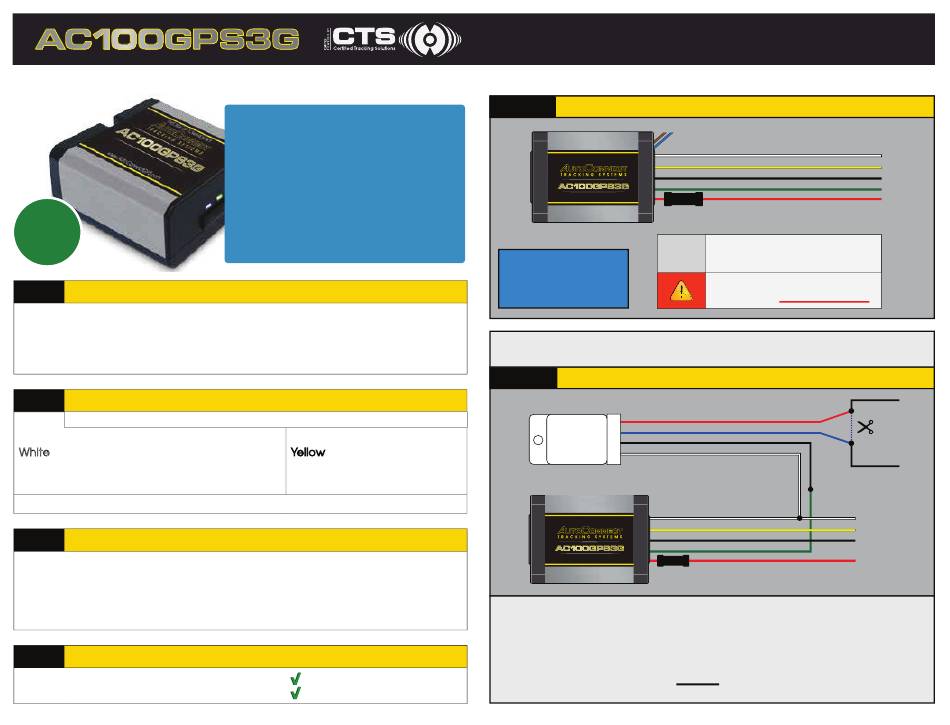

QUICK INSTALL GUIDE
Type 1 AC100GPS3G only
THIS SIDE UP TOWARDS SKY
AutoConnectGPS.com
1-2-3!
For Live Tech Support:
Call Certified Tracking Solutions at
1.780.391.3800
Toll-Free 1.855.287.4477
8AM - 5PM Monday to Friday MST
Numerous installation options exist to interrupt a vehicle's start sequence.
Please see one possible option below.
Type 2 AC100GPS3G with Starter Kill and/or input (optional)
87A
30
RELAY
85
86
THIS SIDE UP TOWARDS SKY
Fuse
AutoConnectGPS.com
* Vehicle Start Interrupt Wire
This is a wire that when cut the vehicle is not able to be started by a key.
Due to data bus systems on newer vehicles this wire may not be at the
ignition switch. When cutting a wire be sure to test that the vehicle cannot be
started by key and when reconnected the vehicle starts without fault codes
being displayed by the vehicle. DO NOT CUT THE WIRE THAT WILL SHUT
DOWN THE VEHICLE WHEN RUNNING BY THE KEY.
Brown/Blue - DATA ONLY
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
Red (12V+) - Constant
Fuse
1. Connect Red wire to Constant +12V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
ATTENTION:
Connecting the device to 24V or 12V to the
Brown or Blue wire WILL VOID THE WARRANTY!
Red
Blue
CUT
Black
White
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
Red (12V+) - Constant
Vehicle Start
Interupt Wire*
REV010517
