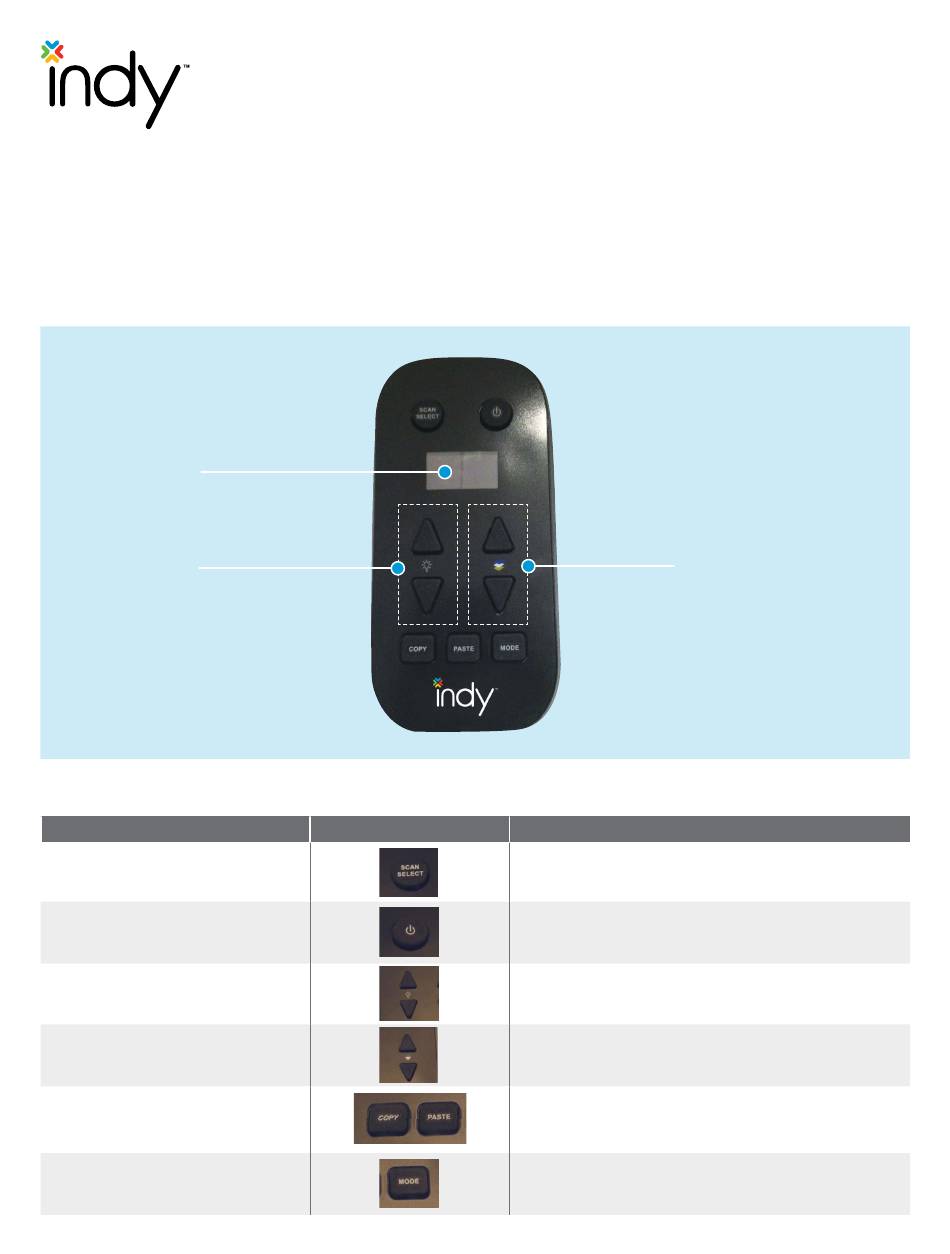

Light Commissioning Tool (CTTOOL)
Operation Instructions
Light Commissioning Tool Functions
Display
Dimming/Saturation
Button Descriptions
Buttons
SCAN SELECT
POWER
DIMMING (UP/
DOWN ARROW KEYS)
CCT (UP/DOWN ARROW KEYS)
COPY/PASTE
MODE
Document #: 065-1140
3
Acuity Brands
| Indy
Light Commission Tool Operations Instructions
®
™
CCT/Hue
Description
Scans the network to discover luminaires and then
selects an individual lamp to control.
Controls the lamp power on/off.
Adjusts Dimming levels from 100% to 1%. These buttons
can also adjust Saturation after hitting Mode button.
Adjusts CCT in increments of 25K. These buttons can
also adjust Hue (Color) after hitting Mode button.
Copies lamps settings from one ChromaControl
and "pastes" it onto another ChromaControl fixture.
These buttons also set SCENE PRESETS.
Toggles between CTTOOL programming modes.
fixture
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the CTTOOL and is the answer not in the manual?

Questions and answers

Summary of Contents for Indy CTTOOL

  • Page 1 Copies lamps settings from one ChromaControl fixture ™ COPY/PASTE and "pastes" it onto another ChromaControl fixture. These buttons also set SCENE PRESETS. MODE Toggles between CTTOOL programming modes. Document #: 065-1140 Acuity Brands | Indy Light Commission Tool Operations Instructions ® ™...

  • Page 2: Scan Select

    • The current mode and settings will be shown in the display. • To turn the luminaire off, press the POWER button. POWER Button • The luminaire OFF button is disabled when in Preset Edit Mode. Document #065-1140 Acuity Brands | Indy Light Commission Tool Operations Instructions ® ™...
  • Page 3 • The selected color temperature is shown in the display. CCT DOWN Note: If Dim is not shown in the display, press the MODE button to display Dim and CCT Button Document #065-1140 Acuity Brands | Indy Light Commission Tool Operations Instructions ® ™...
  • Page 4 Changing CCT in Saturation and Hue Mode • To change the CCT used to initiate saturation and hue, press MODE and the CTTOOL reverts to the CCT and DIM mode. • The CCT and DIMMING levels appear on the display.

  • Page 5: Copy And Paste

    • The display will read “Paste”. PASTE • The luminaire will flash twice to indicate a successful paste Button • The CCT and DIM levels appear in the display. Document #065-1140 Acuity Brands | Indy Light Commission Tool Operations Instructions ® ™...
  • Page 6 The display will read “Executing”. • If No (PASTE) is pressed, SCENE PRESETS are stored but not activated and the lamp reverts to CCT/DIM and SAT & HUE mode. Document #065-1140 Acuity Brands | Indy Light Commission Tool Operations Instructions ® ™...
  • Page 7 ©2017 Acuity Brands Lighting, Inc. The marks appearing in this catalog are trademarks of Acuity Brands Lighting, Inc. Products shown in this brochure may be covered by U.S. and international patents and patents pending. Specifications subject to change without notice. Printed in the U.S.A. Acuity Brands | Indy Light Commission Tool Operations Instructions ®...
