StreetWise NightWatcher Use And Care Manual

Movement tracking flood light and hd security camera with wi-fi

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

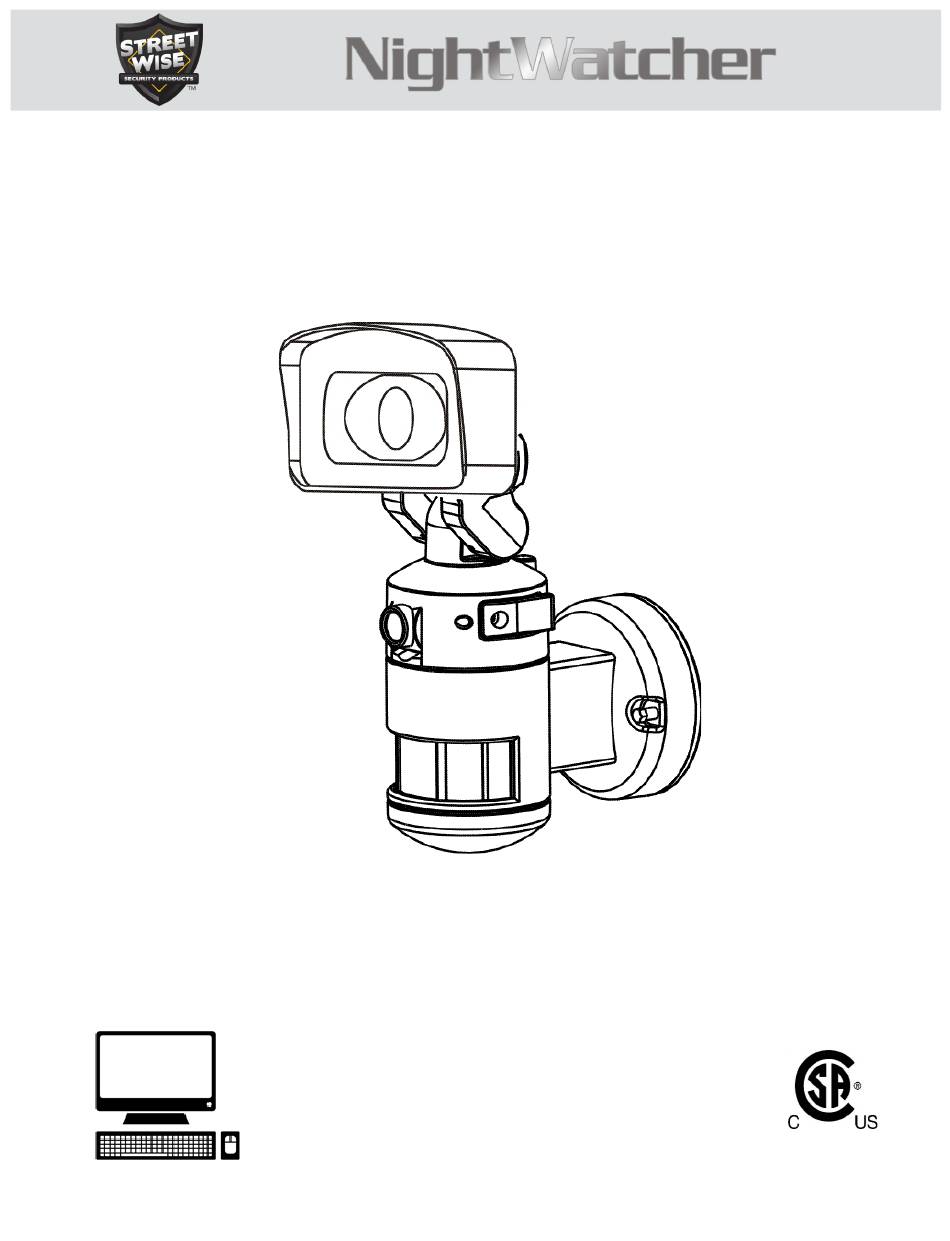

USE AND CARE GUIDE

MOVEMENT TRACKING FLOOD LIGHT

AND HD SECURITY CAMERA WITH WI-FI

Questions, problems, missing parts?

Before returning to the store,

call Streetwise Security Products Customer Service at

1-866-220-0272

Micro SD Card

Windows 2000 / XP / Vista / 7 / MAC

1GB SD ~ 64GB SDHC (max) Class 4

Model #

LISTED

Table of Contents

Need help?

Do you have a question about the NightWatcher and is the answer not in the manual?

Questions and answers

Summary of Contents for StreetWise NightWatcher

Page 1 MOVEMENT TRACKING FLOOD LIGHT AND HD SECURITY CAMERA WITH WI-FI Questions, problems, missing parts? Before returning to the store, call Streetwise Security Products Customer Service at 1-866-220-0272 Windows 2000 / XP / Vista / 7 / MAC Micro SD Card...
Page 2: Table Of Contents
Changes or modification to this unit could damage it and technician for help will void the warranty. This NightWatcher Wi-Fi camera is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to electric shock and will void the...
Page 3: Warranty
Warranty 12 MONTH WARRANTY Streetwise Security Products extends a 12-month warranty to the SWNW760 against defects in materials or workmanship, with the following exceptions: 1. The warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product, loss of parts, or improper installation.
Page 4: Pre-Installation
Pre-installation WARNING: DUE TO THE INHERIT RISKS OF WORKING WITH ELECTRICITY, WE RECOMMEND THAT THE INSTALLATION OF THIS PRODUCT BE DONE BY A QUALIFIED ELECTRICIAN. PLANNING INSTALLATION Never attempt to turn the light head by hand as this can damage the internal motor components and will void the warranty.
Page 5: Package Contents
Pre-installation (continued) PACKAGE CONTENTS NOTE: Nightwatcher Wi-Fi camera is designed to illuminate, record video and produce audio warnings when a person enters the detection area. While it will detect a moving heat source, there is no guarantee implied that it will provide total security or prevent illegal entry.
Page 6: Nightwatcher Overview
NightWatcher Overview Top View Bottom View Front View Side View Camera angle adjustable downward by 25 degrees...
Page 7: Installation
To prolong the lifespan of the NightWatcher it is advised to install the unit in an area that is not directly exposed to extreme weather conditions and if possible under an eave...
Page 8: Operation-Programing Your Nightwatcher
Operation Detection range Adjusting the settings □ □ This light is equipped with three motion sensors: Selecting working mode: There is a “Mode” LED zone 1 covers 60 degrees, zone 2 covers 100 indicator hidden inside the motion detector window degrees and zone 3 covers 60 degrees.
Page 9: Memory Card
Ensure that any required images are saved to an Before removing the micro card from the slot, please press the mode button on the bottom of the NightWatcher for 3 seconds alternative folder prior to formatting. to stop the light from turning – the “Mode” LED will flash - Place micro card into the card adapter supplied orange.
Page 10 - Press this RESET button for 5 seconds, the automatically after 10 seconds. camera will restore the functions to default settings. 2. The NightWatcher SWNW760 can hold 2 custom- recorded messages. If you have recorded one message, repeat above step for message 2.
Page 11 Operation (continued) Viewing recorded videos Viewing images by computer through a card reader. □ Press the mode button on the bottom of the unit for 3 seconds to stop the unit from turning. □ Open the weatherproof cover on the unit. □...
Page 12 “12345678” □ Once the connection is established, open “Streetwise NightWatcher” app and the camera screen will appear on your smart phone or tablet. ※ Note if the message “Cannot connect to internet through Smart Guard HD-XX” or “Internet connection unstable Smart Guard HD-XX“...
Page 13 Operation (continued) 1.2 Link camera with home AP □ Link camera with home AP allows user to watch their camera from anywhere in the world as long as they have internet access. □ Touch the screen twice, you will see 5 red function keys on the right side. □...
Page 14 Operation (continued) □ Select your home AP from the Site Survey menu. □ Enter Home AP password if is encrypted, and click “Join” LED indicator □ Click “OK” and exit the app. □ Wait for 60 seconds for the camera to boot up again and link to WIFI AP router. If Join home AP connection is successful, LED indicator next to the weatherproof cover will display a RED light.
Page 15 Operation (continued) Launch “Streetwise NightWatcher” APP again and you will see video streaming from Smart Guard HD.  Note: You may access your camera from anywhere as long as there is internet access. 1.3 Set Camera name and password □...
Page 16 Operation (continued) 1.5 Frequency Setting: Set Power Frequency 1.6 PIR Notification: Notifies your smartphone/tablet when the unit detects motion □ Click OFF: Will not send PIR Notification □ Click ON: Will send PIR Notification □ and press “ →” for the selected camera. Clicking “Notification” will also send the PIR You also can go to Camera List notification to your smartphone/tablet.
Page 17 Operation (continued) NOTE: If you click ”PIR Notification” and there is no micro card inside the unit when motion is triggered, it will send PIR (motion) Notification signal continuously to your smart phone until there is no more motion detected 1.7 Set Description name: You can set your own name for this Description.
Page 18 □ When PIR is activated to start Auto Recording, the left bottom side will show Orange Ball icon. Record a video of 20 seconds and video will be saved on your NightWatcher’s micro card. 2.3 PLAY BACK □...
Page 19 GREEN (MANUAL control), the other users will also see this bulb icon in GREEN. When all the users close the Streetwise NightWatcher APP, this icon will return to RED (AUTO control) and the NightWatcher’s LED light will also turn off.
Page 20 2.6 Check APP version • If there is an micro card inside the NightWatcher, the screen will show this icon • If there has no micro card inserted or the micro card can not be read, the screen will show this icon 2.7 Check APP version...
Page 21 • Firmware Online Update NOTE: Press Upgrade FW and your APP will close. There is no need to turn off the NightWatcher. Wait for approx. 3 minutes until upgrade is completed, then open the APP again. Make sure your APP is the newest version 2.8 The speed is shown on the right bottom corner of the screen.
Page 22: Troubleshooting
2. The NightWatcher has stopped recording to the micro card. Remedy: The date needs to be set for the NightWatcher to record correctly. If there has been a prolonged power outage, the date will need to be reset. Check the LED beside the camera lens. It should be GREEN when it is recording.
Page 23 F.A.Q. (Frequently Asked Questions) Section Q. How many videos does the memory card hold? It depends on the size of the memory card. A 4 GB card is included with the unit but it can operate with cards up to 32 GB (sold separately). In addition, the size of each 20-second video clip will vary depending on the amount of brightness, color, and movement in each video clip.
Page 24 A: If the network signal is unstable or several people are connected to the WIFI at the same time, it will take longer to connect. Q. What can I do if I accidentally delete the UID? A: Reset the NightWatcher and reenter the settings according to the instruction manual. Q. What should I do if the screen shows error -19?
Page 25: Error -19 Diagram
Error -19: if your screen shows this error follow the diagram below Check your smartphone version： Please update smartphone system version Android 4.0 and later IOS 8.0 and later Change the code of Home AP (router) Check if CAM LED indicator remains RED to WPA2 ※...
Page 26 Retain this manual for future use.

This manual is also suitable for:

Swnw760
