Ultralox Colonial Series Installation Instructions

Colonial Series Glass Railing
Installation Instructions - Deck Application
Items Required for Installation
• Appropriate fasteners for mounting posts to deck
• Miter saw with carbide-tipped non-ferrous blade
• Cordless drill
• Tape measure
• Level
• Power cords, drop sheets and safety glasses
• Drill bit 3/16"
• #2 Square driver bit
• Bottom receiver jig - optional

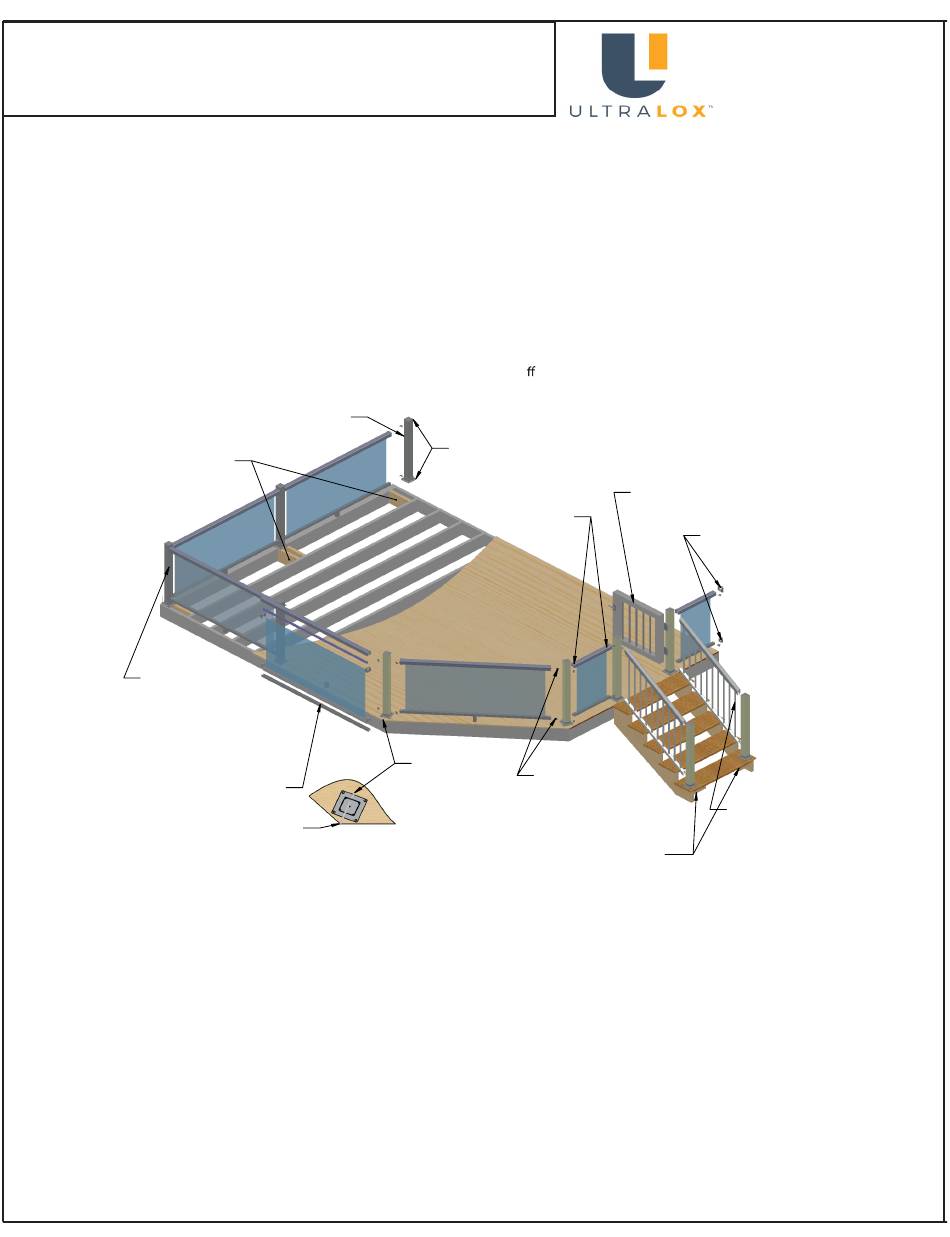

DECK MOUNT SCREWS
SOLD SEPARATELY
(4) 5/16"X4" EXTERIOR
CONSTRUCTION LAG SCREW
CCTX-516400
1/4" GLASS PANEL KIT
36" X 6' P/N HG 231206
"GLASS SOLD SEPARATELY"
Key Notes
• Review materials and UltraLox installation instructions to ensure
all necessary materials are present prior to beginning installation.
On wood structures, review outer deck framing and determine post
•
placement. Solid, structural blocking is required at all post locations.
Typical rail centerline is 3" from deck edge; however, rail centerline can
be adjusted to suit the application.
• Review and confi rm a solid, structural mounting surface is present at
building/column locations where railing ends connect to the structure.
• Refer to www.ultralox.com for stair installation instructions.
36" POST
P/N HP041336
REF. BLOCKING
METHOD 2 X 6
VERT.
REF. 45°
CORNER
DETAIL PLAN VIEW
For the most recent installation instructions, go to our w ebsite
at www.ultralox.com
Prior to construction, check with your local regulatory
agency for special code requirements in your area.
Common railing height is 36" or 42". Post spans will
vary depending on job site conditions. Never span more than
6' on-center between railing posts. Spans longer than 12 '
in length will require reduced post spans. Refer to the system
evaluation at the end of these instructions. For all other applica-
tions, consult a design professional or an UltraLox representative
for more information. Read instructions completely to get an
understanding of how the product goes together and how each
piece a ects the other.
POST MOUNT KIT
P/N KB 011505
FITS 36" & 42"
POSTS
DECK RAIL ATTACH KIT
P/N HC06400
* CAUTION *
45° CORNERS, 22.5° PANEL
POST MUST ATTACH KIT
BI-SECT CORNER (Use for 45° Corners)
& USE 22.5 KIT P/N HC06422
• Posts may require shimming to ensure all posts are plumb and level.
• For installations into wood framing, drill pilot holes through deck
boards to prevent splitting.
• When installing posts, ensure proper blocking is installed under post
attachment locations. Use proper attachment screws or anchors as
directed in these instructions. Deck a ttach m ent screws are not provided
with railing kits.
• Consult your UltraLox representative for installation methods
not covered in this instruction guide.
2910 Waters Road
Eagan, MN 55121
855-742-7245
GATE KIT
UP TO 40" OPG.
P/N HG07514
STRAIGHT
WALL MOUNT
ATTACH KIT
P/N HC29100
36" X 6' STAIR
PANEL KIT
REF.
P/N HS252306
BLOCKING
METHOD
