PCsensor TEMPerHUM Manual

1. Description

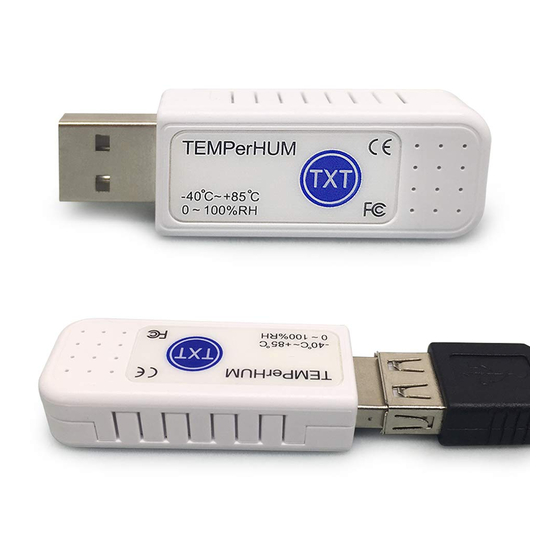

Hid TEMPerHUM thermometer & hygrometer is a measurement
device using USB port to connect to a computer . It can measure the
temperature and the humidity of the machine and the environment
accurately and can calculate the dewpoint automatable. It must be
connect to the computer to start working .Hid TEMPerHUM can be
use in computer room, weather, environment and special
environment temperature and humidity testing.
2. Function & Feature
Range of temperature: TEMPerHUM -40~+85 C; -40~+185F;
Resolution rate of temperature: 0.06C

Temperature sensor :

(1) +/- 0.5C accuracy (Typical)
(2) +/-1C accuracy (Maximum @ 0 to 70C)
Range of humidity:0~100RH%
Resolution rate of humidity:0.03RH%;
Precision of humidity: +/- 4.5 RH% 20RH%~80 RH%;
Voltage: 4~6V;
