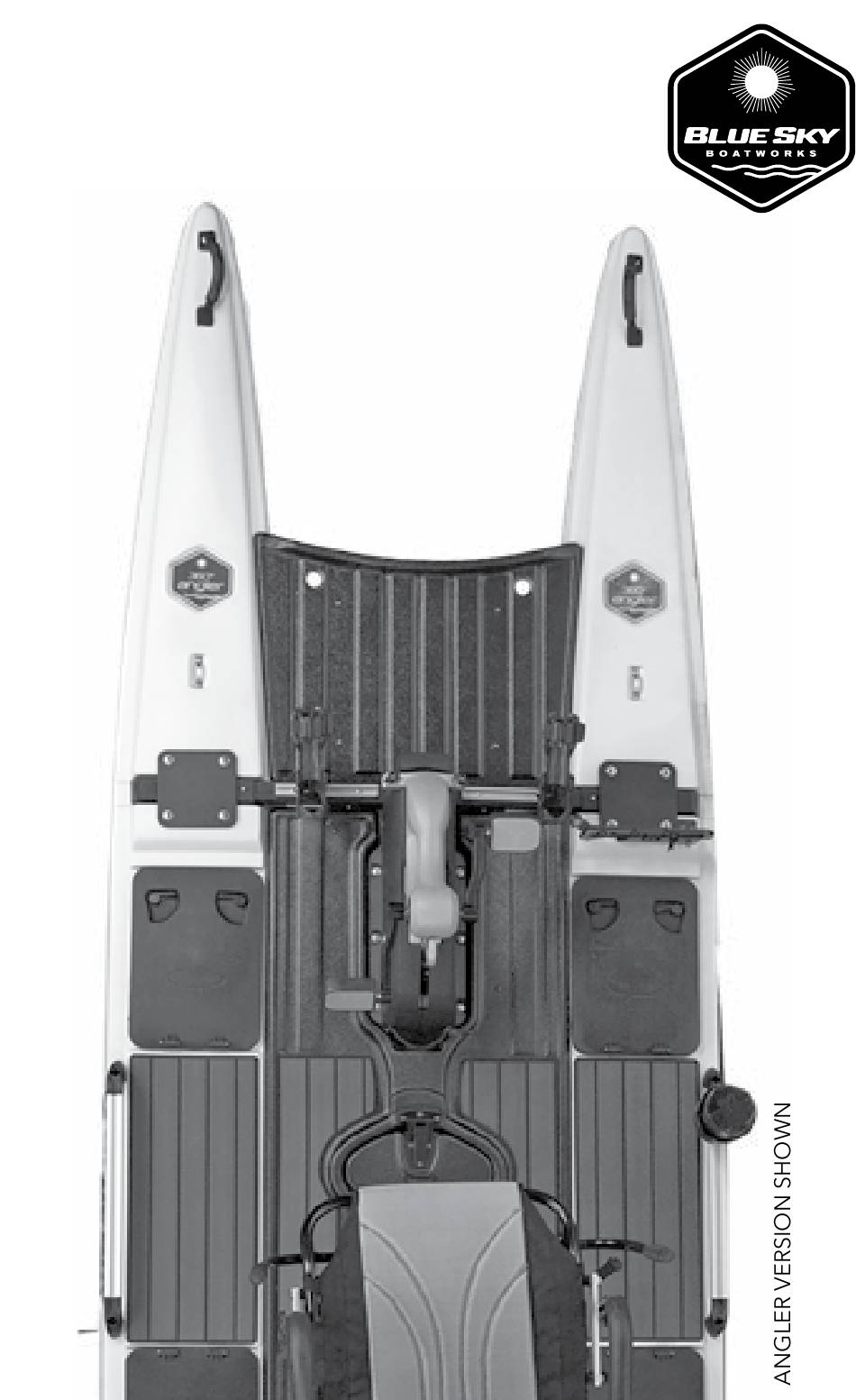

Page 1 OWNERS MANUAL...
Page 2 CONGRATULATIONS AND WELCOME TO BLUE SKY BOATWORKS. Blue Sky Boatworks is an entirely new line of quiet watercraft that takes comfort, ease of propulsion and stand-up stability to new levels. Whether you purchased the 360° Angler or 360° Escape, these super-...
Page 3: Table Of Contents
TABLE OF CONTENTS Anatomy: 360° Escape Anatomy: 360° Angler (A) Assembly (B) Captains Seat 8-10 (C) Flex Drive (D) Transport (E) Storage and Care (F) Accessories (G) Safety (H) Toubleshooting Warranty 17 -18...
Page 4: Anatomy: 360° Escape
ANATOMY: 360º ESCAPE Your 360º Escape is well-equipped and ready for adventure. Take some time to get to know all the features. SLEEK TWIN HULLS FOR SPEED INTEGRATED WHEEL DEPLOYMENT TRACK-MOUNT CUP HOLDER AND STABILITY SYSTEM MESH SEATBACK POUCH TWO EASY ACCESS HATCHES FLEXDRIVE™...
Page 5: Anatomy: 360° Angler
ANATOMY: 360º ANGLER Your 360º Angler is fishing-ready. Take some time to get to know all its features. 21 19 SLEEK TWIN HULLS FOR SPEED INTEGRATED WHEEL DEPLOYMENT TRACK-MOUNT CUP HOLDER PROP ACCESS HATCH AND STABILITY SYSTEM DRYBAG SEATBACK POUCH FOUR GRAB HANDLES FOUR EASY ACCESS HATCHES FLEXDRIVE™...
Page 6: (A) Assembly
(A) ASSEMBLY If you purchased your boat from a dealer, it likely is assembled already. However, your Blue Sky Boatworks boat was designed to be assembled (and disassembled) in a few minutes. Like anything, the more familiar you are with the process, the easier it becomes.
Page 7 (A) ASSEMBLY (CONT.) (A2) ATTACH WHEEL UNIT. Bungee tether is inserted in the factory. To attach wheels to frame, stretch bungee leaving a little tension so that wheel unit can be deployed/stowed; pull bungee downward and wedge into the cleat. Knot the bungee cord to maintain the proper tension.
Page 8: A) Assembly
(A) ASSEMBLY (CONT.) (A3) ATTACH CAPTAIN’S SEAT. Insert seat post into deck, aligning hole for insertion of Quick Pin. (A4) CONNECT RUDDER CABLE. Secure rudder cable through guides as shown; align cable terminus with holes on steering actuator bar and insert clevis pin. IMPORTANT: Swiveling the Captain’s Seat beyond 360°...
Page 9: (B) Captains Seat
(B) CAPTAIN’S SEAT The patent-pending Captain’s Seat is one of several breakthrough features from Blue Sky Boatworks. Supremely comfortable with multiple height, pitch nd fore-aft settings, dial this seat in to perfectly fit your form. (B1) RAISE/LOWER. Release mechanism is located as shown. Press mechanism and lift seat to desired height;...
Page 10 (B) CAPTAIN'S SEAT (CONT.) (B3) RECLINE. Adjust the pitch of the back to desired position by loosening thumb knob as shown. Press back to desired pitch and tighten star clamp lock in place. (B4) STEERING. Rudder controls are conveniently located for either right or left hand operation.
Page 11: B) Captains Seat
(B) CAPTAIN'S SEAT (CONT.) (B5) SEAT ROTATION. The Captain’s Seat has 360° of rotation for full range of motion. However, to prevent damaging rudder cable, DO NOT rotate the seat more than 360° in one direction. Rudder cable damage is not covered by warranty in the event of over-rotation of the seat.To rotate, loosen thumb knob as shown.
Page 12: (C) Flex Drive
(C) FLEX DRIVE All Blue Sky Boatworks boats come standard with the patent-pending FlexDrive System. Please consult the FlexDrive manual included before attempting to install the Drive.
Page 13: (D) Transport
(D) TRANSPORT. You have multiple options when transporting your Blue Sky Boatworks boat. As the boats can be assembled/disassembled in a few minutes no component exceeds 46 pounds, a single person with a roof rack on his or her car can manage just fine. Of course a pick-up truck or trailer makes things a little easier.
Page 14: (E) Storage And Care
(E) STORAGE AND CARE. When not in use, store your Blue Sky Boatworks boat out of the weather and direct sunlight. Direct sunlight can fade your boat over time and in extreme heat can warp the hull. Protection from the elements discourages insects/small animals from making a home of your boat.
Page 15: (F) Accessories
(F) ACCESSORIES. Your Blue Sky Boatworks boat is designed to accept a range of accessories that let you customize your boat to your adventure. The 360° Angler offers a number of additional features specifically designed for the fishing enthusiast. Modifications by the owner that require drilling into the hulls/frame are not recommended and, in most cases, can void the warranty.
Page 16: (G) Safety
(G) SAFETY. With unmatched stability, ease of operation, comfort and roominess, BSB’s 360° Angler and 360° Escape open up the joys personal, quiet watercraft adventure to more people, especially those who never quite felt comfortable in kayaks. Be sure to follow a few sensible rules to ensure every outing is the safest it can be.
Page 17: (H) Toubleshooting
(H) TROUBLESHOOTING. (Info to come)
Page 18: Warranty
WARRANTY This warranty applies to all Blue Sky Boatworks® boats that are sold new or as “demos” (each a “Blue Sky”), subject to the exceptions listed below. What does this warranty cover? This warranty covers substantial defects in materials and workmanship in the hull and outfitting components of your Blue Sky, subject to the exceptions and requirements listed below.
Page 19: Warranty
(931) 738-4800. We may require that you provide photos or return the product to us at your cost. This warranty applies to USA and Canada purchases only. Blue Sky Boatworks’ international warranties are handled directly through our overseas distributor and dealer networks.
Page 20 BLUE SKY BOATWORKS / 3300 MCMINNVILLE HWY / SPARTA TN 38583 931 738 BLUE (2583) / INFO@BLUESKYBOATWORKS.COM...
