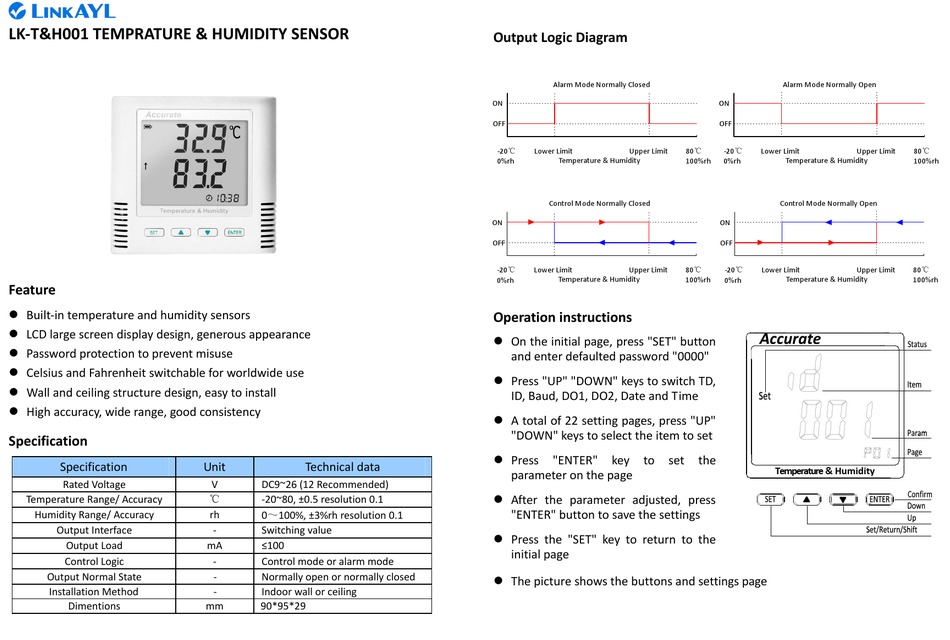

LinkAYL LK-TH001 Operation Instructions

LK‐T&H001 TEMPRATURE & HUMIDITY SENSOR
Feature
 Built‐in temperature and humidity sensors
 LCD large screen display design, generous appearance
 Password protection to prevent misuse
 Celsius and Fahrenheit switchable for worldwide use
 Wall and ceiling structure design, easy to install
 High accuracy, wide range, good consistency
Specification
Specification
Rated Voltage
Temperature Range/ Accuracy
Humidity Range/ Accuracy
Output Interface
Output Load
Control Logic
Output Normal State
Installation Method
Dimentions
Unit Technical data
V DC9~26 (12 Recommended)
℃
‐20~80, ±0.5 resolution 0.1
rh 0～100%, ±3%rh resolution 0.1
‐ Switching value
mA ≤100
‐ Control mode or alarm mode
‐ Normally open or normally closed
‐ Indoor wall or ceiling
mm 90*95*29
Output Logic Diagram
Alarm Mode Normally Closed
ON
OFF
Lower Limit Upper Limit
‐20℃
Temperature & Humidity
0%rh
Control Mode Normally Closed
ON
OFF
Lower Limit Upper Limit
‐20℃
Temperature & Humidity
0%rh
Operation instructions
 On the initial page, press "SET" button
and enter defaulted password "0000"
 Press "UP" "DOWN" keys to switch TD,
ID, Baud, DO1, DO2, Date and Time
 A total of 22 setting pages, press "UP"
"DOWN" keys to select the item to set
 Press "ENTER" key to set the
parameter on the page
 After the parameter adjusted, press
"ENTER" button to save the settings
 Press the "SET" key to return to the
initial page
 The picture shows the buttons and settings page
Alarm Mode Normally Open
ON
OFF
80℃ Lower Limit Upper Limit
‐20℃
Temperature & Humidity
100%rh 0%rh
Control Mode Normally Open
ON
OFF
80℃ Lower Limit Upper Limit
‐20℃
100%rh Temperature & Humidity
0%rh
Accurate
Temperature & Humidity
80℃
100%rh
80℃
100%rh
