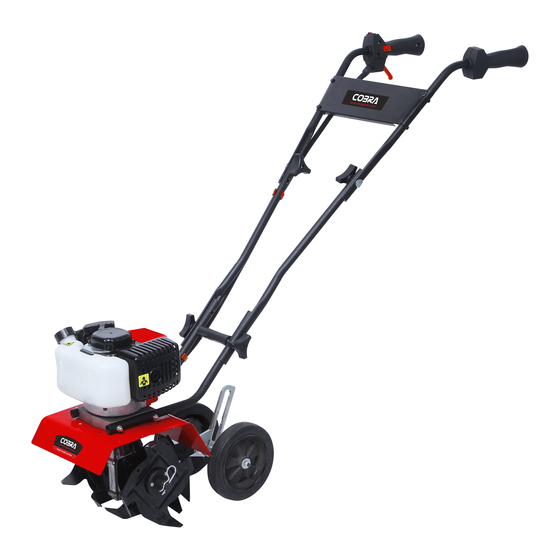

- Page 1 MODELS: T24C (SM-WG430-W01) COBRA CULTIVATOR / TILLER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk...
-
Page 2: Table Of Contents
CONTENTS SECTION 1 SAFETY LABELS ……………..………….…………………………. 3 SECTION 2 SAFETY INSTRUCTION…………………………………………….. 4 SECTION 3 COMPONENTS ………………………………………………………. 6 SECTION 4 TECHNICAL DATA…………………………………………………..7 SECTION 5 ASSEMBLY …………………………………………………………….7 SECTION 6 OPERATION……………………………………………………………8 SECTION 7 MAINTENANCE….……………………………………………………. 9 SECTION 8 STORAGE…………………….………………………………………. 10 SECTION 9 TROUBLESHOOTING………………………………………………. 11 SECTION 10 WARRANTY …...……………………………………………………. -
Page 3: Section 1 Safety Labels
1. SAFETY LABELS The following safety labels appear on the machine. They are there to remind you of the care and attention required in use. This is what the symbols mean: Read Operator's Manual Danger! Rotating work machine. When repairing, please pick up the spark plug, and then repair it according to the operational manual. -
Page 4: Section 2 Safety Instruction
2. SAFETY INSTRUCTION WARNING: When using petrol tools, basic safety precautions, including the following, should always be followed to reduce the risk of serious personal injury and/or damage to the unit. Read all the instructions before operating this product and retain these instructions for future reference. WARNING: This machine produces an electromagnetic field during operation. - Page 5 - Before clearing the cultivator tines / blades - Before checking, cleaning or working on the tiller. - After striking a foreign object. Inspect the tiller for damage and make repairs before restarting. - If the tiller starts to vibrate abnormally (check immediately). 17.
-
Page 6: Section 3 Components
3. COMPONENTS 1. Right handle 2. Left handle 3. Stop Switch 4. Throttle lever 5. Clamps 6. Middle handle 7. Lower handle 8. Top cover plate 9. Gearbox 10. Wheel 11. Wheel bracket 12. Tines lock pin 13. Rotating tine 14. -
Page 7: Section 4 Technical Data
4. TECHNICAL SPECIFICATION Type T24C Motor 1E40F-5A Engine displacement 42.7 cm Rated engine power 1.25 Kw Blade width 235 mm Fuel mix, Fuel: 2 Stroke Oil 25:1 Standard engine speed 6500r/min Net weight 16.2kg Guaranteed Sound Power 108 dB(A) level... -
Page 8: Section 6 Operation
6. OPERATION Warning: Only operate with others a safe distance away from the area to be tilled 1. Add oil and fuel mixture Use the mixture of petrol:2 stroke oil – 25:1 Under no circumstances use petrol without 2 stroke oil. Take care when fueling to avoid possible igniters. -
Page 9: Section 7 Maintenance
Every 20 hours of usage add lubrication to the gear case and check the gear wheels conditions. Where the gears are damaged contact your local Cobra dealer. c. Engine maintenance: - Spark plug, periodically clean or replace. Ensure the gap is 0.6 to 0.7mm, adjust as necessary. -
Page 10: Section 8 Storage
Maintenance Schedule: System or Component Procedure Before Every Every Every Note Hours Hours Hours ✔ Wipe out and Fuel Leaks, Fuel clean thoroughly Spillage ✔ ✔ Inspect, clean FuelTank,AirFilter, Fuel Replace if Filter necessary ✔ Idle Adjusting Screw Replace See Adjusting carburetor if Idling Speed necessary... -
Page 11: Section 9 Troubleshooting
9. TROUBLESHOOTING GUIDE Case 1. Starting failure Check Probable Causes Action Drain it and fill with correct Fuel Tank Incorrect fuel fuel Fuel Filter Fuel filter is clogged Clean Carburetor Adjustment Out of normal range Adjust to normal range Screw Sparking (no spark) Spark plug is fouled/ wet plug gap is Clean/ dry and correct (GAP:... -
Page 12: Section 10 Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 13: Section 12 Ec-Declaration Of Conformity
12. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
