WIRELESS ACCESS POINT

USER MANUAL

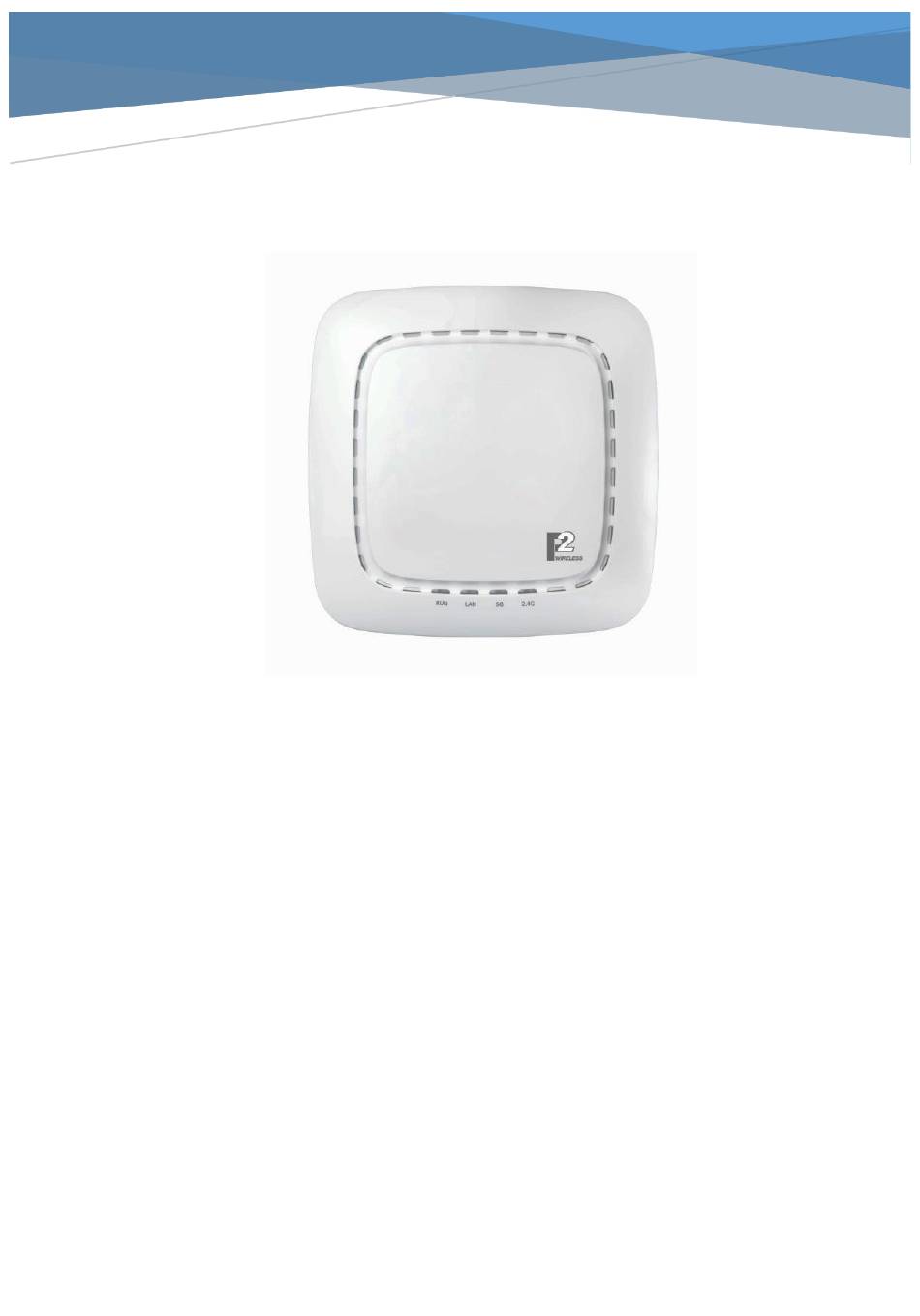

Z100

P2 Wireless Technologies Limited

Table of Contents

Need help?

Do you have a question about the Z100 and is the answer not in the manual?

Questions and answers

Summary of Contents for P2 Wireless Technologies Z100

Page 2: Table Of Contents
Proper Disposal of Product ...........................11 Waste of Electrical and Electronic Equipment ..................11 European Union RoHS ..........................11 China RoHS ..............................11 Safety and Regulatory Compliance .......................12 Basic Troubleshooting ...........................13 Page 1 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 3: About This Guide
To meet the demand for the high user density in these scenarios, the Z100 is equipped with our very own DensityBoost technology to significantly increase the per-AP user density. And in addition to efficient...
Page 4: Safety Instructions
17. DO NOT LEAVE THE ACCESS POINT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW 0° C OR ABOVE 45° C. THIS COULD DAMAGE THE ACCESS POINT. Page 3 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 5: Package Contents
Access Point Z100 × 1  Drop Ceiling Mounting Kit × 1  Wall Mounting Kit × 1 Inform your supplier if there are any incorrect, missing, or damaged parts. Page 4 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 6: Possible Configurations
Please refer to the network plan provided. Without adhering to the network plan may result in a network failure. ━ For the best practice, please consult P2 authorized engineers. Page 5 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 7: Installation Procedure
1. Secure the ceiling bracket on the ceiling rail and adjust according to the size of the rail. 2. Fasten the bracket with the ceiling rail with a screw. Page 6 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 8 3. Align the securing hook of the AP with the bracket (see dotted line), and slide the AP towards the bracket until the AP is completely locked. 4. Use the cable-tie through the locking hole to lock the AP with the bracket. Page 7 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 9: Led Indications
5GHz radio is enabled 5GHz Radio Status 5GHz radio is disabled Steady – Green 2.4GHz radio is enabled 2.4G 2.4GHz Radio Status 2.4GHz radio is disabled Page 8 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 10: Smartmoment-Configuring The Ap
WIRELESS ACCESS POINT USER MANUAL SmartMoment—Configuring the AP The Z100 comes with the built-in SmartMoment for basic configuration of the AP. To configure the AP, connect it through wireless or wired method. Connection Procedure Wireless Method 1. Power up the AP.
Page 11: Configuring And Monitoring The Access Point
These functions should be performed with the MeshProvision Server. For more details on how to configure and monitor the Z100, please refer to the MeshProvision Server User Guide. Page 10 of 14...
Page 12: Proper Disposal Of Product
European Union measures on landfill and incineration of waste. The Z100 AP at end of life are subject to separate collection and treatment in the EU Member Statues and therefore are marked with the symbol.
Page 13: Safety And Regulatory Compliance
Use Period is valid only when the product is operated under the conditions defined in the product manual. Safety and Regulatory Compliance The Z100 AP has been tested and complied with the standards as follows:  FCC DOC Part 15 Class B (US) ...
Page 14: Basic Troubleshooting
The LAN port indicator is Check whether the connection between the LAN/PoE port of the off. combiner and the LAN/PoE port is correct. -End of User Guide- Page 13 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
Page 15 All scaling metrics outlined in this document are maximum supported values. The scale may vary depending upon the deployment scenario and features enabled. Page 14 of 14 Copyright © 2015 P2 Wireless Technologies Limited. All rights reserved.
