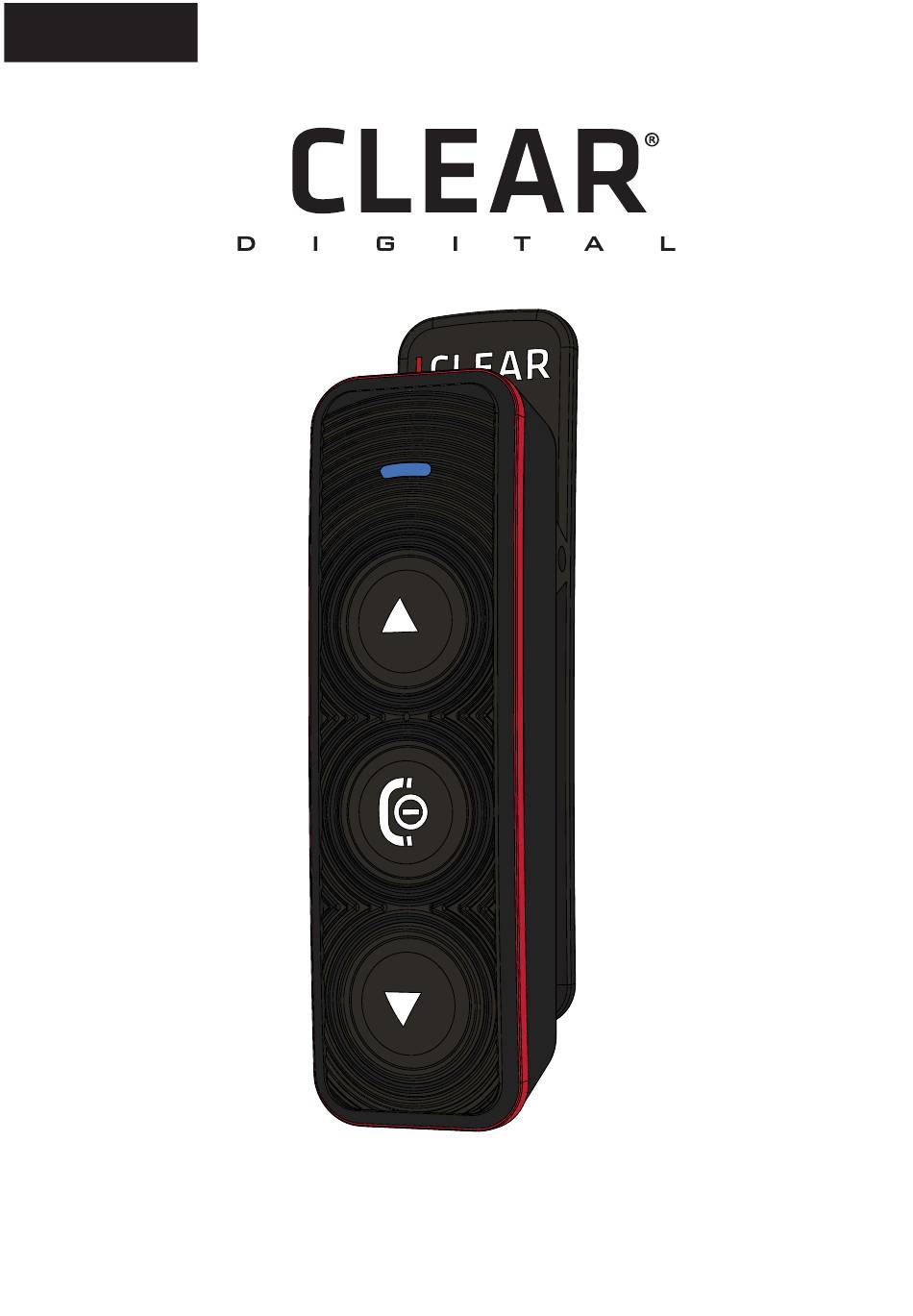

Page 1 HAD1000 Hearing Assistive Device User Manual...
Page 2: Table Of Contents
Contents Contents --------------------------------------------------------- Kit Includes ------------------------------------------------------ Quick User Guide ---------------------------------------------- Warnings and Safety Instructions -------------------------- Features ----------------------------------------------------------- Installation -------------------------------------------------------- General Operations ---------------------------------------------- Music Streaming Operations ---------------------------------- Hearing Assist Operations-------------------------------------- Mobile Phone Operations -------------------------------------- Button Configurations Summary ------------------------------ Status Indicator Configuration Summary ------------------- Technical Data ---------------------------------------------------- Troubleshooting Operational Tips------------------------------ Notices --------------------------------------------------------------...
Page 3: Kit Includes
Please read these rules. Do not follow these rules may result in dangerous or violation of the law. This user manual provides more detailed information about safety instructions. Universal Earbud - Short HAD1000 Hearing assistive device AC charger USB charging cable...
Page 4: Quick User Guide
Quick User Guide General Functions and Layouts NOTE: Please charge before use Make sure you have the latest firmware which can support your hearing assistive device. You may visit iclear-digital.com for downloading. Charging Socket Status Indicator ‘Up’ Button ‘Power’ Button ‘Down’...
Page 5 After power on, continue and hold the ‘Up’ and ‘Down’ button to enter into device pairing mode. The LED will blink blue and red alternately. Pairing mode Turn on Bluetooth search for ICLEAR HAD1000 Volume Press ‘Up’ button once to increase volume. Press ‘Down’ button once to decrease the volume. PAGE 4...
Page 6 Quick User Guide Power Off Hold ‘Power’ button for 5 seconds until LED flash red in color. Reset Press all three buttons at the same time to reset the device. NOTE: The volumes for mobile phone, music and hear assist functions are controlled separately. PAGE 5...
Page 7 2 seconds. The status indicator Pairing light will blink blue and red alternately. completed • From your mobile phone Bluetooth menu, search for ‘ICLEAR HAD1000’. • If your phone requires a password, enter ‘0000’. Turn on Bluetooth search for...
Page 8 NOTE: For music Bluetooth adaptor you would need to pair the music bluetooth adaptor before using it with hearing assistive device. Pairing mode Pairing completed Turn on Bluetooth search for ICLEAR HAD1000 Resume Playing music Pause Fast forward Back track Press ‘Up’...
Page 9 Quick User Guide Hearing Assist Press ‘Power’ Hearing assist Press ‘Power’ Hearing assist once is activated once is deactivated PAGE 8...
Page 10: Warnings And Safety Instructions
Warning and Safety Instructions This manual uses the icons to highlight certain instructions. Below is an explanation of the icons. Attention This icon highlights special instructions and precautions intended to avoid damage to the system. Non-compliance may void the product warranty. Warning This icon provides precautions important to prevent injuries to the user.
Page 11 Warning and Safety Instructions Attention Charging and handling rechargeable battery products incorrectly may cause them to overheat, catch fire or explode. To prevent this please follow the instructions below: 1. Never change the batteries yourself, always bring the device to an authorised dealer to perform the replacement for you.
Page 12: Features
• Hearing assist function not applied to music streaming. Hearing Assist Function Advanced Product Features • Noise suppression • Directivity enhancement • Comfort zone adjustment Installation The hearing assistive device package contains: HAD1000 Universal Earbud AC charger & Hearing assistive (Short) USB charging cable device PAGE 11...
Page 13 Installation Install Universal Earbud Make sure the speaker wire is inserted into the main unit. lnsert the speaker wire into the control unit until you can no longer see the 3 ribs on the speaker wire plug. PAGE 12...
Page 14: General Operations
General Operations Your hearing assistive device is now all set and ready to go!!! The operations described here are applicable to all modes of operations. Power On Charging Socket Hold the ‘Power’ button for 2 seconds to power Status Indicator on the hearing assistive device.
Page 15 • Turn on the mobile phone Bluetooth functions and search for Bluetooth devices. • Select ‘IClear HAD1000’ to pair with the desired device. • If prompted to enter a passcode, enter ‘0000’. NOTE: Most mobile phones when paired would be automatically connected with both phone and music Bluetooth capabilities.
Page 16 General Operations Mobile phone opeartions Hearing Assist (Activated automatically) Allows you to experience the adaptive hearing enhancement in the phone call according to the hearing curve obtained in the testing of Tune2Fit apps. Last Number Redial To redial the last number, hold the ‘Up’ and ‘Power’ buttons for 2 seconds. The capability of this function is dependent on the mobile phone used.
Page 17: Music Streaming Operations
Music Streaming Operations To use the control unit with your music devices you must connect them wirelessly through Bluetooth pairing. The music device must have Bluetooth capability. Pairing - To connect the control unit a Bluetooth music device, hold the Up and Down buttons for 2 seconds.
Page 18: Hearing Assist Operations
Hearing Assist operations Allows you to experience the adaptive hearing enhancement in daily conversation according to the hearing curve obtained in the testing of Tune2Fit apps. Press ‘Power’ Hearing assist Press ‘Power’ Hearing assist once is activated once is deactivated Hearing Assist, Phone Call and Music Switching Music has the lowest priority.
Page 19: Mobile Phone Operations
NOTE: To tune the hearing assistive device using the Tune2Fit app you would need to pair the unit with an Android Smartphone. Pairing mode Pairing completed Turn on Bluetooth search for ICLEAR HAD1000 Hold ‘Up’ and ‘Down’ 2 seconds PAGE 18...
Page 20 Select Device ICLEAR HAD1000 00:02:5B:BB:10:07 ICLEAR HAD1000 00:05:5B:BB:10:06 ICLEAR HAD1000 00:02:5B:BB:10:02 Select ICLEAR HAD1000 TUNE2FIT Select Mode Tuning Mode Select to tune your own hearing curve or configure the device. If this is the first time you are using Con guration the device.
Page 21 Mobile Phone Operations TUNE2FIT Select tuning mode: If you select Manual Tuning How will you tune it? Please continued on (page 20) If you select Auto Tuning Auto Tuning Please continued on (page 21) What is Auto Tuning? The program will require you to tune Manual Tuning each ear’s hearing sensitivity in 8 What is Manual Tuning?
Page 22 Mobile Phone Operations TUNE2FIT TUNE2FIT Instruction The volume will increase slowly from 0. Press How will you tune it? OK when you hear it. There will be 8 tests on each ear, a total of 16 tests. Click START to begin! Auto Tuning What is Auto Tuning? Start...
Page 23 750 1050 1350 1800 2300 2900 3500 Frequency (Hz) Orange: Left Ear Cyan: Right Ear Click the after button to experience your Listening Comparison Listening Comparison Listening Comparison listening capability with the help of HAD1000. Before After Stop Before Before After After Stop...
Page 24 Mobile Phone Operations TUNE2FIT Noise Suppression Adaptive Double Beamforming Battery Level Refresh Hearing ComfortZone Once you are in configuration mode, the hearing assist mode will be activated. This is to help you experience the different setting live. Done Back to Tuning TUNE2FIT Noise Suppression Noise Suppression...
Page 25 Threshold Dynamic Display DOWN Back TUNE2FIT Noise Suppression Adaptive Double Beamforming Battery Level Refresh Hearing ComfortZone You must click the Done button for all the setting to be saved into you HAD1000 control unit. Done Back to Tuning PAGE 24...
Page 26: Button Configurations Summary
Button Configurations Summary Basic Power On Press and hold ‘Power’ button for 2 seconds Power Off Press and hold ‘Power’ button for 5 seconds Enter Pairing Press and hold both ‘Up’ and ‘Down’ buttons for 2 seconds Reset Press ‘Power’, ‘Up’ and ‘Down’ buttons at the same time Hearing Assist Start Hearing Assist Press ‘Power’...
Page 27: Status Indicator Configuration Summary
Status Indicator Configurations Summary The table below shows the status indicator configurations. Status Power On Red blink 3 times Power Off Purple 2 seconds Standby Blue 2 seconds blink Hearing Assist Purple 2 seconds blink Hearing Tuning Blue and red slowly switching Music Playing Blue double blink 2 seconds Incoming Call...
Page 28: Technical Data
Technical Data Unit Dimensions (L x W x H) 67.7mm x 18mm x 19mm Weight 14.19g Audio Frequency response 20Hz to 20000Hz Sampling rate 8000Hz 105dB+ / -3dB Bluetooth Specifications Version 4.0 Compatible Profiles A2DP, AVRCP, HSP, HFP Radio Carrier frequency 2.402 - 2.480 GHz Range Class 2: Up to 10m...
Page 29: Notices
Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC. Rules these limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 30 Notices WARRANTY: Without prejudice of legal warranty, the product is covered under a 2 year warranty by manufacturer from the date of purchase. Please provide the proof of purchase when you return the item to the supplier. The warranty covers manufacturing defects only. The warranty is voided by any unauthorized repairs, misuse, and misapplication, tampering of the product, modifications, upgrading or results of any failures to follow the guidelines as set out in the product brochure or by any of the actions specified in this brochure or anywhere in our...
Page 31 Notices All risks from operating or usage of the product rest solely and entirely with the user of this product, the original purchaser or any third parties, who assumes full responsibility for all injuries, losses and/ or damages, whether caused in whole or in part by the negligence, omissions or other conduct of others, including that of BITwave, and all their representatives, partners, agents, distributors, suppliers, resellers and all others in its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties involved.
Page 32 Notices PERSONAL SAFETY: Do not open the seal of the hardware, tamper, repair or modify any parts. Do not touch the product with metal objects or parts or chemical products. Violation of the above will lead to potential fire hazards and mishaps. Please contact the technical support or your local supplier if your product malfunctions.
Page 33 : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 34 MAR 2015...
