YDEA MDEA2FAST User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Service Hotline：400-666-9216

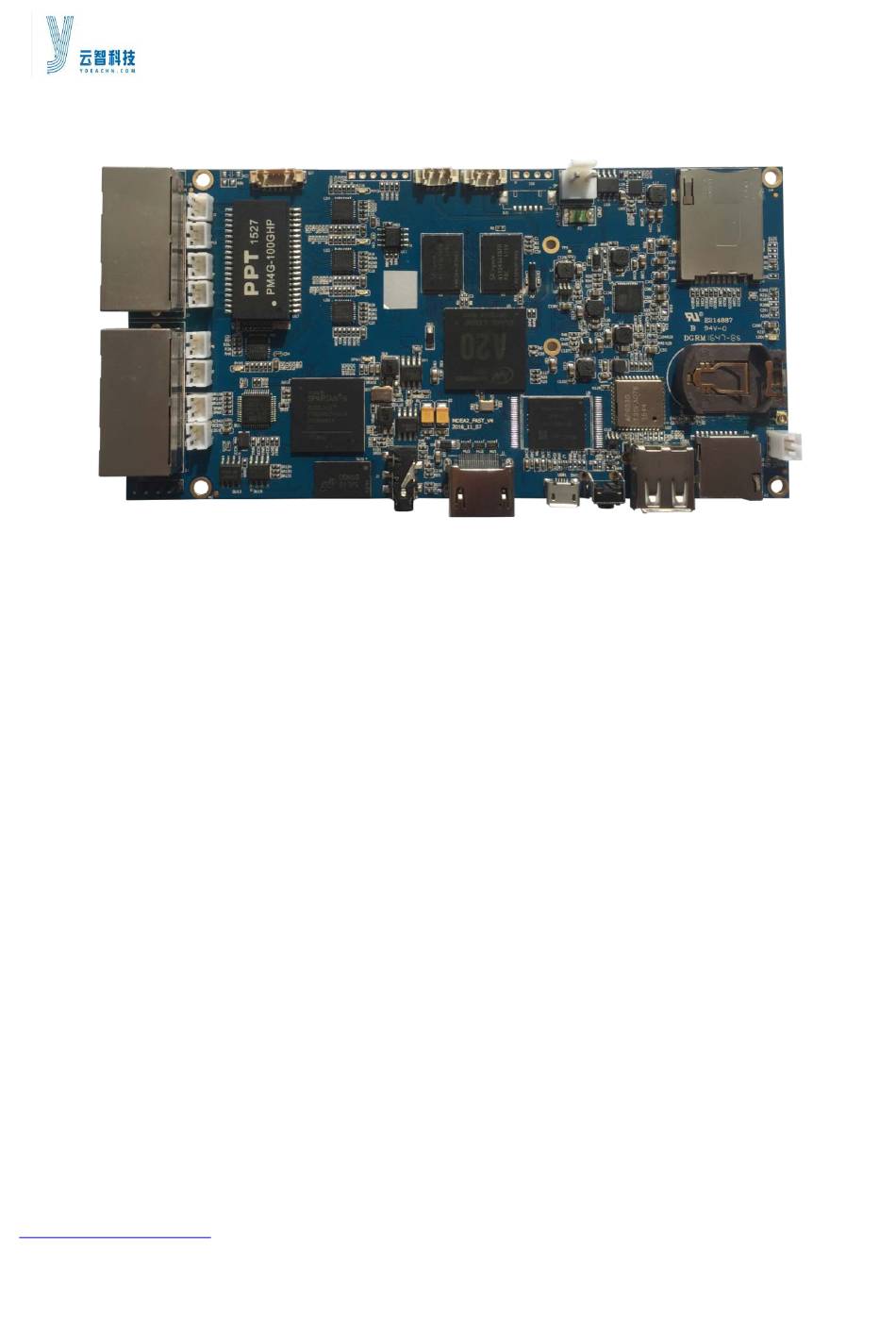

MDEA2FAST User Manual
MDEA2FAST Media Player User Manual
Statement
Dear users:
Thanks for choosing YDEA products. We will be happy that this manual can help you
to understand and use our product properly. We tried to make all contents accurate
and reliable in the manual. While there maybe some followed updates and
modification without notice to you, so if you encounter any problem during the use
of this manual, or you have a suggestion to us, please contact us according to the
contact manner on the manual. We will do our best to help with your problem, and
we would like to thank you in advance for any suggestions from you.
The copyright of this document is belonging to Shenzhen YDEA Technology Co., Ltd.,
and no person or entity are allowed to reproduce or extract the contents of the text in
any form without written permission.
http://www.ydeachn.com/
1
Add: Room 901, Building A, Block #5, Skyworth Inno Valley, No.8 Tangtou 1
Rd., Shiyan,Bao'an District,
st
Shenzhen, P.R. China ;

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDEA2FAST and is the answer not in the manual?

Questions and answers

Summary of Contents for YDEA MDEA2FAST

  • Page 1 Statement Dear users: Thanks for choosing YDEA products. We will be happy that this manual can help you to understand and use our product properly. We tried to make all contents accurate and reliable in the manual. While there maybe some followed updates and...

  • Page 2: Table Of Contents

    1 Safety Statement……………………………………………………………………………………3 2 Overview ………………………………………………………………………………………………4 3 Product Features…………………………………………………………………………………..4 4 Technical Specification……………………………………………………………………………...6 5 Interface…………………………………………………………………………………………………7 6 MDEA2FAST System Connection Diagram …………………………………………………10 6.1 MDEA2FAST System Signal Connection Diagram……………………………10 6.2 System specifications…………………………………………………………………10 7 MDEA2FAST Software Operation………………………………………………………………11 7.1 Introduction to basic operation……………………………………………..……11 7.2 Menu Bar Introduction………………………………………….……………..……15 7.3 Shortcut menu bar………………………………………………………………..….21...

  • Page 3: Safety Statement

    Service Hotline：400-666-9216 MDEA2FAST User Manual 1. Safety Statement To avoid possible hazards, please use this device as required. In case of any damage, non-professionals are not allowed to open and repair, please contact our after-sales service team in time. Voltage hazard: the working voltage of this device is 5V/3A DC, and it cannot be connected to a different working voltage.

  • Page 4: Overview

    Service Hotline：400-666-9216 MDEA2FAST User Manual 2. Overview MDEA2FAST is a new released low cost innovative LED display information release system designed for advertising market, mainly for door head advertising, building lighting display...; MDEA2FAST integrated network distribution system, single player system, LED control system in one unit, with the network interface (RJ45), Wi-Fi, external 3G card.
  • Page 5 Media Player inside MDEA2FAST comes with media player function, it can be used as a PC host to achieve local playback; the integrated hardware codec module can support 720p HD video decoding and playback;...

  • Page 6: Technical Specification

    Service Hotline：400-666-9216 MDEA2FAST User Manual 4. Technical Specification Hardware Configuration Items Description Cortex-A7 Mali400，400MHz DDR3，1GB ROM Flash 8GB Flash memory Multimedia Photo BMP, JPEG, M-JPEG, GIF, PNG Support Video MEPG1/2/4,H.263/H.264 ,WMV/VC-1,MVC,AVS,MJPEG. Audio MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AMR,AAC,AC-3 Network Items Description WIFI Support 802.11b/g/n mode.

  • Page 7: Interface

    Service Hotline：400-666-9216 MDEA2FAST User Manual 5. Interface Introduction Output Signal 1 Output Signal 2 Output Signal 3 Output Signal 4 Function Remark DC Power Input Interface DC5V/3A WIFI Antenna Support 2.4G&5G MICRO USB Burning system firmware USB2 Used for U disc, mouse, keyboard...
  • Page 8 Mdea system； Audio Output：Audio output support 3.5 audio interface； LED Video Output Interface：LED video output interface is for connecting MDEA2FAST to the receiving card, transmits the video signal, the first pair of standard T568B cable is suitable for the connection；...
  • Page 9 Press and hold the reset key, power on the unit, wait for 7 seconds, release the reset button, MDEA2FAST will restore the factory mode; Hotspot reset: Mainly used for MDEA2FAST in normal operation but cannot find the hot spots, long press the reset button for 2s, you can switch the device to hotspotmode; Note: 1.

  • Page 10: Mdea2Fast System Connection Diagram

    1. MDEA2FAST is use standard internet cable to connect with the screen, the screens are connected in a series way, MDEA2FAST is with 4 signal output, each socket can support 64 * 960/128 * 480/256 * 240/512 * 120/1024 * 60 output mode;...

  • Page 11: Mdea2Fast Software Operation

    （ Fig1 Software Interface） 2. For MDEA2FAST, we just simply select C5M_Mdea is okay; http://www.ydeachn.com/ Add: Room 901, Building A, Block #5, Skyworth Inno Valley, No.8 Tangtou 1 Rd., Shiyan,Bao’an District,...
  • Page 12 Service Hotline：400-666-9216 MDEA2FAST User Manual 7.1.1 The main interface introduction （Fig2 Software Interface） As shown in figure, the main interface is roughly divided into four regions, functional area, operating area, menu, shortcut menu area. 7.1.2 Basic operation introduction 1. Test network connection：...
  • Page 13 （Fig4 Network Connection） Remark： 1. MDEA2FAST system can be set as the WIFI hotspot, or connect the external network; 2. The difference between MDEA2FAST system and C5 system, is the Mdea system can not connect with the computer via a serial port implementation; So the computer can only be connected through WIFI network or Mdea hot spot, tp achieve wireless network control;...
  • Page 14 Service Hotline：400-666-9216 MDEA2FAST User Manual （Fig5 Successful Connection） When the control software is well connected with the screen, the software will display hotspot IP address. Need to check the IP address with the arrow pointing, then click ok in the box. At this time, the software is well connected to Mdea system;...

  • Page 15: Menu Bar Introduction

    Service Hotline：400-666-9216 MDEA2FAST User Manual Note： 1.If the connection fails, then try to refresh a few times more, if still fails, restart the software to connect again. 2. Make sure the Mdea system hotspt status is normal； 7.2 Menu Bar Introduction 7.2.1 Document...
  • Page 16 Service Hotline：400-666-9216 MDEA2FAST User Manual （Fig 8 Functions） Brightness：can adjust the global brightness, current gain, color temperature. http://www.ydeachn.com/ Add: Room 901, Building A, Block #5, Skyworth Inno Valley, No.8 Tangtou 1 Rd., Shiyan,Bao’an District, Shenzhen, P.R. China ;...
  • Page 17 Service Hotline：400-666-9216 MDEA2FAST User Manual （Fig9 Brightness） Brightness range is：1-256 Current gain range is:1-256 The single color temperature range is:0-255 Note: if need to adjust the color temperature coordinates, you can change the value of red, green and blue color temperature range to set the color temperature you need.
  • Page 18 Manual》； Online upgrade：this interface is used to upgrade Micro receiving cardprogram； Note： 1.MDEA2FAST temporarily does not support receiving card mark upgrade； Online upgrade_E Version：this function should be supported in the latest update, particular case please contact technical support staff;...
  • Page 19 Service Hotline：400-666-9216 MDEA2FAST User Manual slope; Gamma levels: there were three grades：high, medium and low, can achieve the effect of high grayscale and low brightness; Update, save and send: updated is set current parameters to corresponding Gamma table,Save is to save the current Gamma table on software, next time you open the window automatically load the last saved Gamma table, click send is to send out all the parameters of the current Settings to the controller.
  • Page 20 C5 systemthrough a serial port;； 2.Network communication is used for communication between computer and MDEA2FAST system, a computer can communicate with MDEA2FAST when they are within the same local area network (LAN); （Fig12 Communication Setting）...

  • Page 21: Shortcut Menu Bar

    Service Hotline：400-666-9216 MDEA2FAST User Manual Autorun：used to set the control software running according to device power upor not； 7.2.4 About Click on the menu, can view the version of installed software, it can help the user to easy communicate with the technical personnel from display manufacturers;...
  • Page 22 ：click on this button to adjust the brightness, current gain and color temperature; Note： 1.The current gain setting is hidden by default, need to enter the password under the window to displayed, the password is "ydea"; 2.PC software default current gain maximum adjust to 172, input pincode "0000" to http://www.ydeachn.com/ Add: Room 901, Building A, Block #5, Skyworth Inno Valley, No.8 Tangtou 1...
  • Page 23 Service Hotline：400-666-9216 MDEA2FAST User Manual adjust it to the biggest； ：click this button to quickly test a serial port. ：click on the icon, you can switch display on or off. If all of the parameter Settings are right, but the display screen is black, click the icon to test whether the screen are shut off or not；...

  • Page 24: Debugging

    1.1 Master port selection： （Fig26 Master port） Note： 1.A single port output of MDEA2FAST system can support up to 1024 * 600 pixels； 2.The software default to choose P1, no need to change; 1.2Port adding Click on the“Port mode”to enter the interface （Fig27 Port adding）...
  • Page 25 服务热线：400-666-9216 （Fig28 Mode adding） Name：product name can be set according to need freely Rotation：according to the requirements, can achieve 0 °, 90 °, 180 °, 270 ° rotating in four directions. Rotation is counterclockwise Note：this function needs support of receive card program； Size：single block screen width (X)and height (Y) Note：the size is pixel density of single micro receive card;...
  • Page 26 1.The system will automatically select the distributor load mode according to the screen size and blocks. System can support 64 * 960, 128 * 480, 128 * 240, 512 * 120, 512 * 60 mode, MDEA2FAST will automatically choose the pattern, the max load points is 1024 * 600;...
  • Page 27 服务热线：400-666-9216 （Fig29 Mode adding） Finally click add, and then you will see a single screen size becomes X16, Y96 automatically （Fig30Mode adding） Complex Patterns http://www.ydeachn.com/ Add: Room 901, Building A, Block #5, Skyworth Inno Valley, No.8 Tangtou 1 Rd., Shiyan,Bao’an District, Shenzhen, P.R.
  • Page 28 服务热线：400-666-9216 （Fig31 Port mode editing） Click [Edit]，to get into complex mode； Name：product name can be set according to need freely, in order to distinguish. Rotation：according to the demand, used for four direction rotation. Serial number：corresponding to serial numberon the right side window, it’s the physical address of the receive card, the default is 1.
  • Page 29 服务热线：400-666-9216 （Fig32 Port Settings） Set port number: a window is on behalf of one output of the distributor, MDEA2FAST currently supported four ports output, the software only need to set up four ports, the arrangement of four ports can be set according to your request freely, it can move within 1024 * 600 points.
  • Page 30 服务热线：400-666-9216 1.5 Connection Mode (Face the screen) （Fig34 Connection mode） Connection mode refers to the cable connection manner behind the screen, You can choose automatic or manual. If choose auto, on the right you can have 8 kinds of basic linear way to choose from;...

  • Page 31: Faq

    （Fig36 Connection WIndow） 1.6 Parameters Sending When set up is completed, click "send"on the lower right corner. （Fig37 Connection） 8 MDEA2FAST FAQ FAQs Judgment and correction PW indicator is on, WK 1. The PW indicator off indicating that there is a problem with the...

  • Page 32: Installation Dimensions

    1. Check whether the MDEA2FST hotspot status is normal, and connect to MDEA2FST whether the computer-side wireless network is connected to this hotspot 9 MDEA2FAST System http://www.ydeachn.com/ Add: Room 901, Building A, Block #5, Skyworth Inno Valley, No.8 Tangtou 1 Rd., Shiyan,Bao’an District,...
