MADI-192 MADI Option Card Installation Guide
The MADI-192 MADI Option Card is a high-channel-count
MADI audio interface card for Avid
MADI-192 MADI Option cards are installed in E6L engines.
• Up to four MADI Option cards can be installed in an
E6L-192 or E6L-144 engine.
• Up to two MADI Option cards can be installed in an
E6L-112 engine.
For information on supported Option cards, visit:
https://www.avid.com/products/venue-s6l-system
This guide shows how to install a MADI-192 MADI Option Card
into an E6L.
Required Materials
• MADI-192 MADI Option Card
• Phillips #1 screwdriver (not included)
• Anti-Static wrist strap (not included)
• Foam or other padded surface to place the card on (not in-
cluded)
Installing a MADI-192 MADI Card
Installing a MADI-192 MADI Option card in E6L consists of the
following steps:
• Removing the E6L engine core
• Installing the card
• Replacing hardware
• Confirming Installation
Removing the E6L Engine Core
E6L Option cards are installed in the E6L engine core, which
slides out of the E6L chassis.
To remove the E6L engine core:
Put on your anti-static wrist band and configure according to
1
its instructions.
Shut down your system, and disconnect any cables connected
2
to your E6L engine.
Place your E6L on a table or other flat surface that provides
3
enough room for the E6L engine core to be removed comfort-
ably. Make sure your surface is clear of any debris.
© 2018 Avid Technology, Inc
®
VENUE | S6L systems.
9320-70100-00 REV B
On the back of the E6L, loosen the four thumbscrews that se-
4
cure the core to the engine chassis.

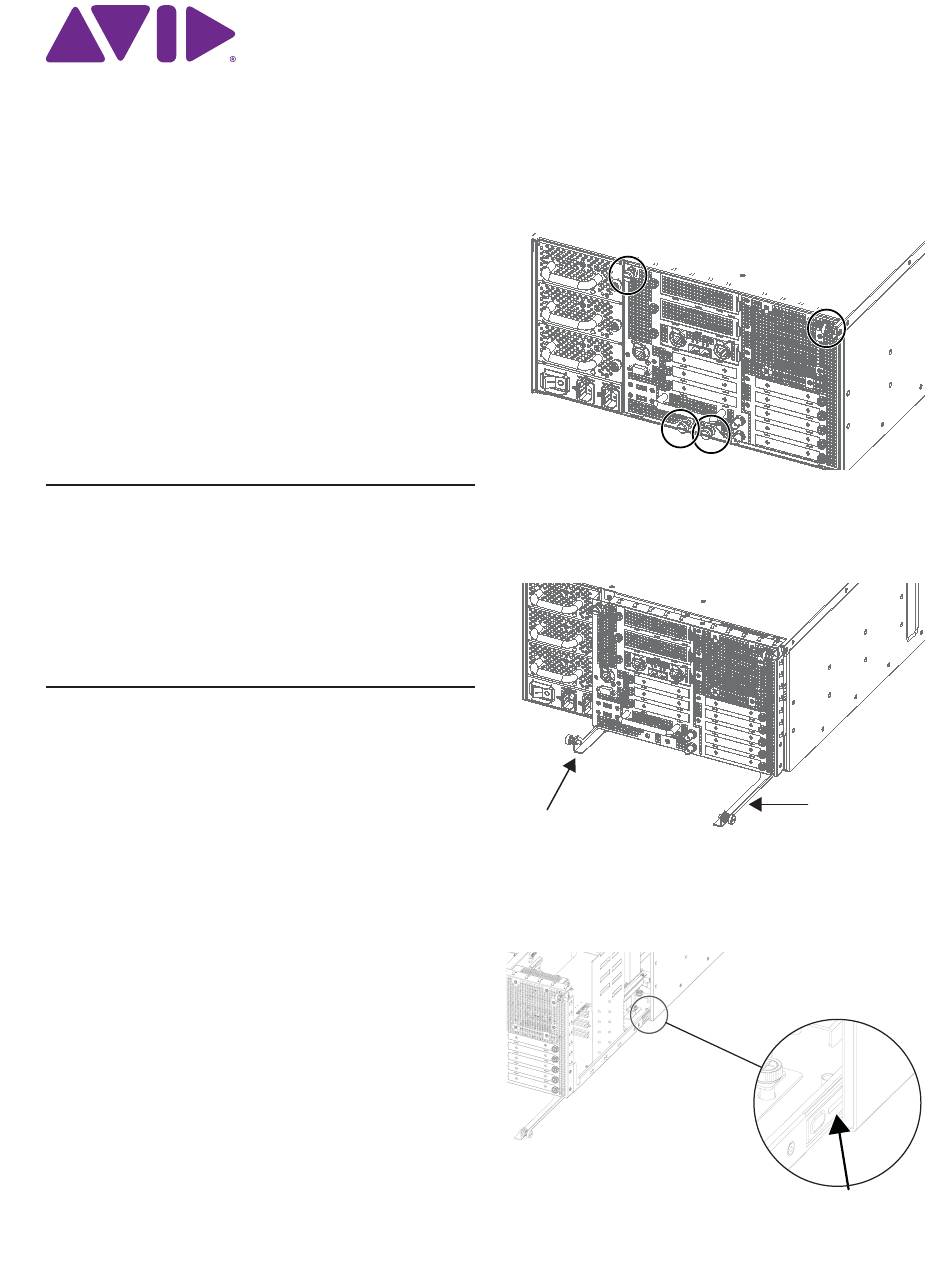

Figure 1. Four thumbscrews on the back of the E6L
Simultaneously pull the two bottom thumbscrews outward so
5
the latches they are attached to are fully extended, as shown in
Figure 2.
Figure 2. Latches fully extended
Using the handle, slowly slide the core partially out, locate the
6
interior catch on the right side of the tray, and press it to release
the core from the chassis.
Figure 3. Location of the interior catch
MADI-192 MADI Option Card Installation Guide 1
