QUICK-START INSTALLATION GUIDE
TELOS INFINITY BP-2
Digital Intercom Beltpack
INTRODUCTION
The INF-BP-2 is a dual communication channel digital Beltpack that includes the additional ability
to monitor an auxiliary program audio feed. Unlike traditional analog intercom beltpacks, each
communication channel may be configured to be part of a partyline, group, IFB, or a point to point contact
regardless of the physical connection of the device to the supporting network.
The BP-2 connects over a supporting 100Mbps Ethernet network with 24-bit/48 KHz uncompressed
digital audio carried as Audio over IP (AoIP) using the Livewire+
AES67 industry standard.
®
The BP-2 is powered by PoE (Power over Ethernet) either directly from the network switch or via an
external PoE source. Additionally, multiple BP-2 beltpacks may be daisy-chained from the network
switch to one another.
Advertisement
Table of Contents
Related Manuals for TELOS INFINITY BP-2
Summary of Contents for TELOS INFINITY BP-2
- Page 1 Audio over IP (AoIP) using the Livewire+ AES67 industry standard. ® The BP-2 is powered by PoE (Power over Ethernet) either directly from the network switch or via an external PoE source. Additionally, multiple BP-2 beltpacks may be daisy-chained from the network switch to one another.
-
Page 2: Front Panel

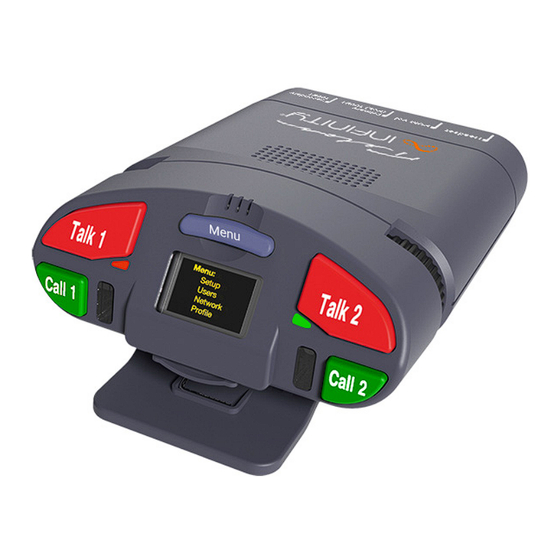

HARDWARE Front Panel The front panel of the BP-2 intercom Beltpack includes a monochrome OLED display, two talk keys, two call keys, a menu key, and a miniature condenser microphone. There are recessed volume controls for Channel 1 and Channel 2 on the side of the unit near the front panel. - Page 3 Menu Key (E) The menu key toggles the BP-2 between normal operating mode and the Menu Mode. To enter the Menu Mode, press and hold this key for 5 seconds. Similarly, to quickly exit the Menu mode and return to normal operating mode, press and hold the Menu Key for 5 seconds.
-
Page 4: Rear Panel
(C), and the other port is a ‘Secondary’ network output (D) for daisy chaining beltpacks. Note! The BP-2 required Power over Ethernet (PoE) to operate. If the unit does not power up, verify that PoE is available, and that the cable is plugged into the primary... -
Page 5: Basic Operation
BASIC OPERATION BASIC OPERATION Talking To talk to a desired channel, simply press the “Talk” key. The Talk key operates in one of two modes, depending on the user’s action: • Momentary (also called “Push to Talk”): Press and hold the Talk key for longer than 1 second. The talk function will be enabled (on) if the Talk key is pressed. -
Page 6: Menu Mode
MENU Menu Mode Menu Mode allows limited configuration changes to be made to the BP-2, though full configuration and programming is best performed via the Dashboard application. To enter Menu Mode, press and hold the “Menu” key for 5 seconds. While the unit is in Menu Mode, the top of the display will display “Menu”. -
Page 7: Use Cases
USE CASES Basic 2-channel Party Line system The BP-2 ships from the factory pre-configured for a 2-channel Party Line system. To use a 2-channel Party Line system, simply plug the beltpacks into an Ethernet switch that includes DHCP server capability and supplies Power over Ethernet (PoE). It’s that simple! - Page 8 To configure the unit for a fixed IP address If a switch that includes a DHCP server is not available, then the BP-2 units must be configured for fixed, or static, IP addresses. The simplest way to accomplish this is to use the unit’s webpage. This can be either access via the Dashboard control application, or directly if you know the address of the beltpack.
- Page 9 USE CASES Adding a Program Source for monitoring Dashboard running on a Windows PC will also be required to do this, along with a method to get the audio on to the AoIP network, such as an Analog xNode offered by the Telos Alliance. 1.
- Page 10 USE CASES Floor Manager 1 Stage Crew 1 Stage Crew 2 Lighting Desk Sound Desk Axia xSwitch Ethercon Breakout Panel Spotlight Op 1 Lighting Operator Spotlight Op 2 Sound Operator Figure 3 - Live Event Partyline System Example...
-
Page 11: Menu Structure
MENU STRUCTURE MENU STRUCTURE Enter Menu Kill Ch 1 Mics Confirm Cancel Kill Ch 2 Mics Confirm Cancel History Last Call Clear History Confirm Exit Cancel Contacts Contacts List Directory Groups Groups List Call Exit Listen Ch 1 Assign Ch 2 Assign Exit Partyline Partyline List... - Page 12 Exit Call Partyline Partyline List Exit Exit Listen MENU STRUCTURE Ch 1 Assign Ch 2 Assign Exit User Unit ID xxxxxxxxxxxx Status IP Address xxx.xxx.xxx.xxx User Profile Channel 1 xxxxxxxx Channel 2 xxxxxxxx Program In xxxxxxxx Model INF-BP2 Firmware xx.xx.xx Serial Number xxxxxxxxx MAC Address...
- Page 13 Headset Limit 1 to 10 Program In MENU STRUCTURE Program Duck 1 to 20 Noise Cancellation Exit Speaker Exit Display Brightness 0 to 10 Time Out Off to 15 min Dim Level 1 to 10 Reverse Exit Beltpack Unit ID xxxxxxxxxxxx Unit ID Edit Exit...
- Page 14 Gateway xxx.xxx.xxx.xxx Exit Ch1 Assign Partylines MENU STRUCTURE Groups Contacts Exit Ch2 Assign Partylines Groups Contacts Exit Program In System Passwords Push Profile Load Profile Maintenance Self Test Press Any Key to Start Factory Reset All But IP Exit SW Update Advanced Exit Exit...
- Page 15 QUICK-START INSTALLATION GUIDE This Page Intentionally Left Blank...
-
Page 16: Quick Links
QUICK-START INSTALLATION GUIDE QUICK LINKS Subscribe to DirectCurrent Weekly updates on all things broadcast via email TelosAlliance.com/directcurrent Social Media Facebook: /TelosAlliance Twitter: @TelosAlliance LinkedIn: /TelosAlliance YouTube: TelosAllianceTV Google+: +TelosAlliance Product Catalog TelosAlliance.com/now 24/7 Tech Support Radio: +1 (216) 622-0247 TV: +1 (717) 735-3611 Radio: support@telosalliance.com TV: support@linearacoustic.com 1241 Superior Ave.
