Summary of Contents for Powerplay KSP965

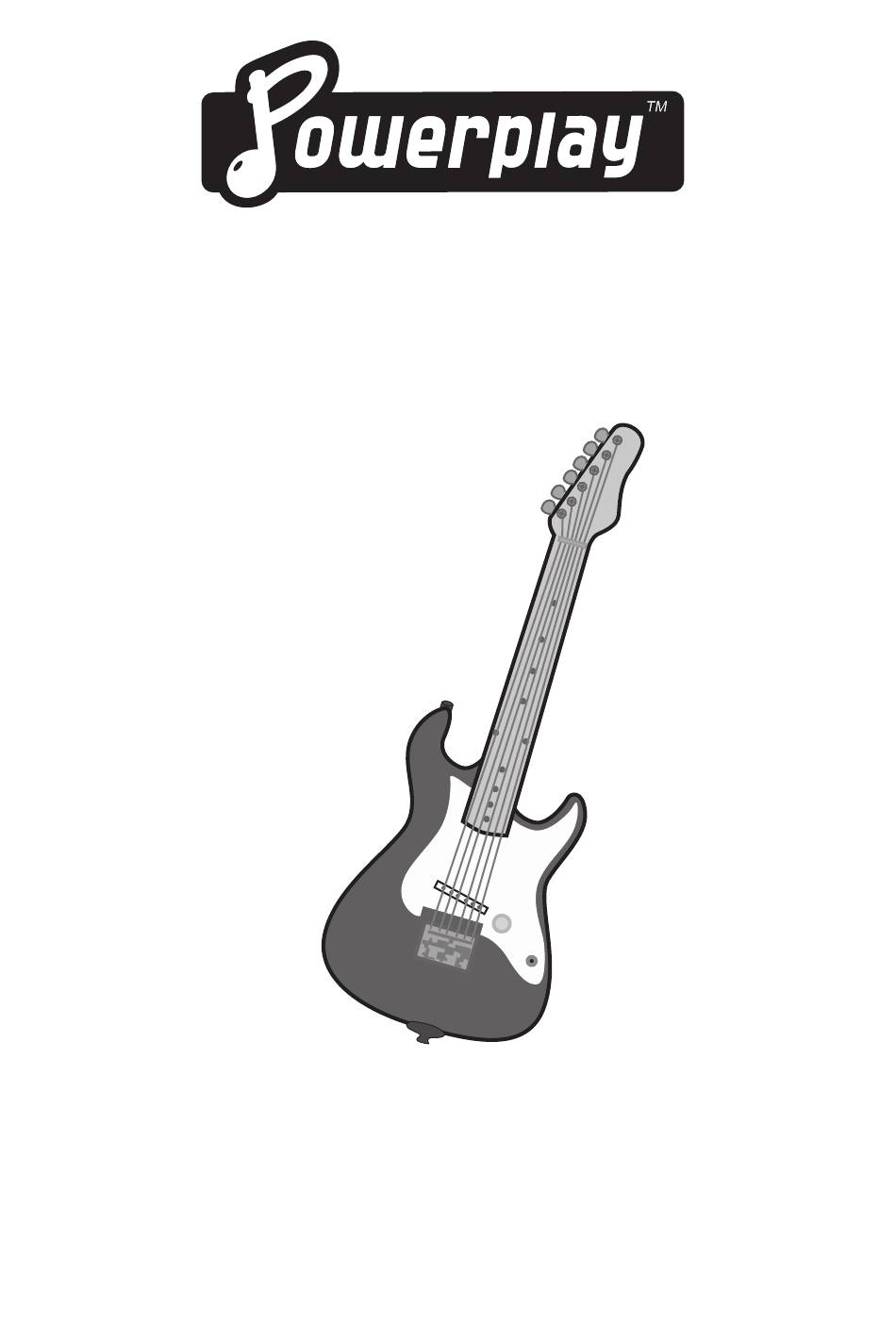

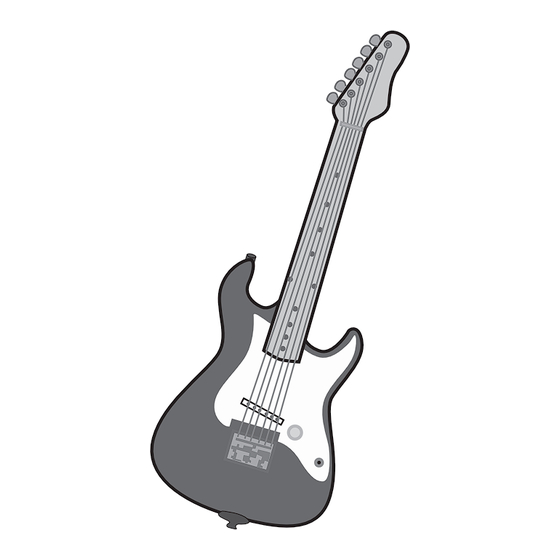

- Page 1 OWNER’S MANUAL Electric Guitar with Amplifier PLEASE READ BEFORE OPERATING THIS EQUIPMENT Model: KSP965...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a... - Page 3 LOCATION OF CONTROLS (GUITAR) 1. Headstock String Nubs 2. Headstock String Guide 3. Finger Board 4. VOLUME Control 5. Amp Jack 6. Upper Strap Knob 7. TUNING Keys 8. Lower Strap Knob 9. Pickup 10. Bridge...
- Page 4 LOCATION OF CONTROLS (AMP) 1. INPUT Jack 2. VOLUME Control 3. TONE Control 4. Battery Compartment (Rear of Amp) 5. AMP Switch 6. DRIVE Indicator 7. Headphone Jack 8. DC 9V IN Jack y...
-
Page 5: Battery Precautions
INSTALLING THE AMPLIFIER’S 9V BATTERY 1. Open the battery cover and insert a 9V Battery as shown. 2. Close the Battery Compartment cover. BATTERY PRECAUTIONS Follow these precautions when using batteries in this device: 1. Use only the size and type of batteries specified. 2. -
Page 6: Using The Strap
USING THE STRAP To use the guitar supplied strap, simply insert one end of the strap over the Upper Strap knob and the other end over the Lower Strap knob. CONNECTING THE GUITAR TO THE AMP With the amplifier’s VOLUME control set to the minimum position and the power off, insert the end of the cable with the 90°... -
Page 7: Operation
OPERATION 1. Connect the guitar to the amplifier as described on the previous page. 2. Slide the AMP switch to the ON position to turn the AMP on. 3. Rotate the VOLUME control on the guitar and the amplifier to the desired volume setting. - Page 8 INSTALLING NEW STRINGS 1. Insert a new string through the top hole in the Headstock, then guide it through the Bridge (see figure below). String out String goes through bridge String in Stopper 2. Pull the string towards the Headstock, then guide it under the headstock String Guide.
- Page 9 3. Insert the string through the hole in the nubs on the Headstock, then rotate the Tuning keys to tighten. Insert string through the hole...
- Page 10 Printed in China KSP965-IB-E0CY1-B0US...
