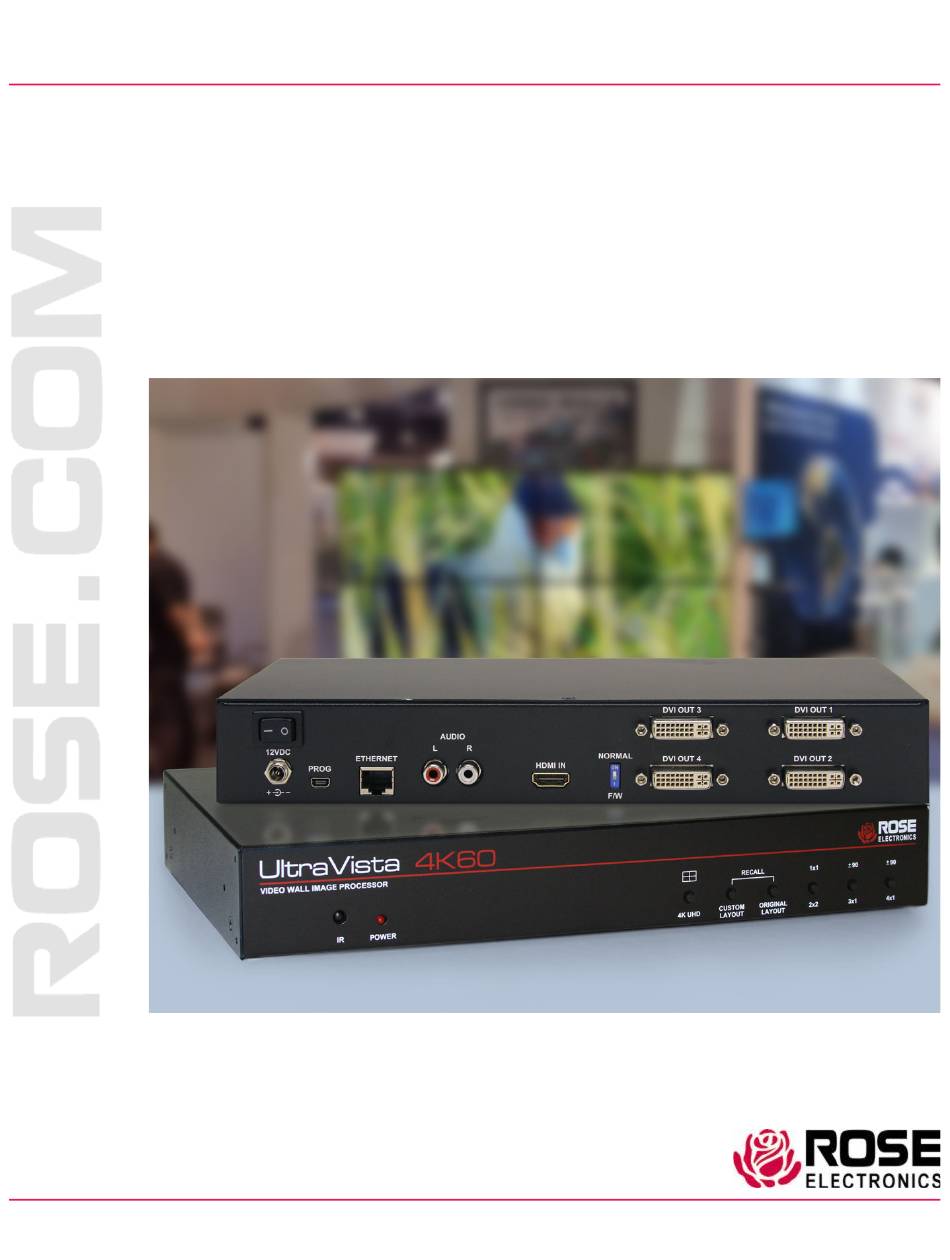

- Page 1 UltraVista 4K60 UHD Video Wall Controller • 4K60 Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 tech-support@rose.com...
- Page 2 UltraVista 4K60 to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Subpart J of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Table Of Contents
Operation Safety Maintenance and Repair Technical Support Figures Figure 1. UltraVista 4K60 –Video Wall displaying 1920x1080 on all monitors Figure 2. UltraVista 4K60 Figure 3. Front View Figure 4. Rear View Figure 5. Connection Dialog Box Figure 6. Connection Failure Figure 7. - Page 5 Appendices Appendix A – Specifications Appendix B - Part Numbers Appendix C - IR Remote Control...
-
Page 6: Disclaimer
Processor functions as a tool to create and manage real-time multiple screen video displays. The UltraVista 4K60 is a comprehensive video wall processor. An HDMI or DVI input signal is flexibly displayed output to four HDMI or DVI displays. The input image can be cropped or zoomed to show any part of it on an output display. -
Page 7: Sample Application
SYSTEM OVERVIEW Sample Application Figure 1. UltraVista 4K60 –Video Wall displaying 1920x1080 on all monitors UltraVista 4K60 Manual... -
Page 8: Video Resolutions Supported
640x480@60Hz 720x480@60Hz 720x480@60Hz 720x576@30Hz 720x576@60Hz 720x576@60Hz 800x600@60Hz 1280x720@60Hz 1024x768@60Hz 1920x1080@30Hz 1280x720@60Hz 1920x1080@60Hz 1280x768@60Hz 4K2K@30Hz 1280x960@60Hz 4K2K@60Hz (4:2:0 10bits) 1280x1024@60Hz 4K2K@60Hz (4:2:2 10 bits) 1366x768@60Hz 4K2K@60Hz (4:4:4 8bits) 1440x900@60Hz 1680x1050@60Hz 1920x1080@60Hz 1920x1200@60Hz 1600x1200@60Hz Table 1. Supported Video Resolutions UltraVista 4K60 Manual... -
Page 9: Ultravista 4K60 Model
MODEL UltraVista 4K60 Model The UltraVista 4K60 is available in a single model as shown below. Model View Figure 2. UltraVista 4K60 Front View Figure 3. Front View ■ IR Sensor ■ Power indicator ■ Control buttons: 2x2 4K2K UHD layout ... -
Page 10: Rear View
Audio L: left channel analog audio ■ Audio R: right channel analog audio ■ HDMI IN: video input ■ Normal F/W: dip switch for updating firmware; default position=1 (off) ■ DVI OUT 1 - 4: video output UltraVista 4K60 Manual... -
Page 11: Installation
INSTALLATION AND OPERATION Installation Installation of the UltraVista 4K60 is very simple. First make the necessary connections, and then install the Video Wall 4K60 software on a Windows based PC, laptop, or tablet. Connections to the UltraVista 4K60 Connect the video source to the HDMI IN connector. If the source output is DVI, use a DVI to HDMI cable. -
Page 12: Operation
The window coordinates will be displayed in the Horizontal and Vertical Start and End boxes. Rotation (only at 720p or 1080p output resolution): Rotate the selected frame 90º, clockwise or counterclockwise. UltraVista 4K60 Manual... -
Page 13: Figure 8. Output Resolution Step 1
Figure 8. Output Resolution Step 1 b. Step2: Output settings can be selected through Quick Selection, from a file, or by a custom definition. These corresponds to steps Step2_1, Step2_2 and Step2_3 respectively, as described below. UltraVista 4K60 Manual... -
Page 14: Figure 9. Quick Selection Menu
Click the Apply button to activate the custom setting. Clicking the Save As button allows the configuration to be saved as a file on the computer for future loading. UltraVista 4K60 Manual... -
Page 15: Figure 11. Image Adjustment Menu
Figure 11. Image Adjustment Menu UltraVista 4K60 Manual... -
Page 16: Figure 12. Learn Edid Tab
NOTE: If different types of displays are used in the video wall, the best strategy is to learn the EDID of the least capable display, especially when audio capable HDMI devices are part of the video wall. UltraVista 4K60 Manual... -
Page 17: Figure 13. Advanced Settings Tab
Figure 13. Advanced Settings Tab To provide a name to the UltraVista 4K60 unit to aid in identifying it, enter up to 8 characters in the New Host Name field, and click the button. -
Page 18: Figure 15. Factory Reset Completion Screen
NOTE: Restart the UltraVista 4K60 when the completion box is displayed. Figure 15. Factory Reset Completion Screen IP CONFIGURE: To change the IP address used by the unit, click the IP CONFIGURE button. To read the current device setting, click the Read from device button. -
Page 19: Figure 18. Re-Establish Connection To The Ultravista 4K60 After Configuration
REFRESH: To update the settings information, and to reconnect to the device, click the REFRESH button. The ReConnectForm window will be displayed, allowing the user to restart the configuration connection. Figure 18. Re-establish Connection to the UltraVista 4K60 After Configuration UltraVista 4K60 Manual... -
Page 20: Safety
The Unit does not operate normally when all operating instructions have been followed. The Unit has been dropped or the case has been damaged. The Unit exhibits a distinct change in performance, indicating a need for service. UltraVista 4K60 Manual... -
Page 21: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. - Page 22 8-layer board [impedance control — differential 100Ω; single 50Ω] Environmental Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature –4°F to 140°F (–20°C to 60°C) Relative Humidity 20% to 90% RH (non-condensing) CE, FCC, RoHS, WEEE Compliance UltraVista 4K60 Manual...
- Page 23 Appendix B - Part Numbers Part Numbers Description VWL-T222-4K-DVX UltraVista 4K60 Video Wall Processor UltraVista 4K60 Manual...
-
Page 24: Figure 19. Ultravista 4K60 Ir Remote Control
Appendix C - IR Remote Control Figure 19. UltraVista 4K60 IR Remote Control Button Function POWER Power On/Off Audio+ Increase the audio volume Audio- Decrease the audio volume Fast switch to 1x1 screen (Full Screen) Fast switch to 3x1 screen with –90° rotation... - Page 25 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
