Page 1
MGTEC
Wireless Data Transfer/ Play through Wi-Fi
High Capacity 10,400mAh Smartphone Supplementary Battery
Portable Internet Wireless Router Device
WIT-WX1
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIT-WX1 and is the answer not in the manual?

Questions and answers

Summary of Contents for MGTEC WIT-WX1

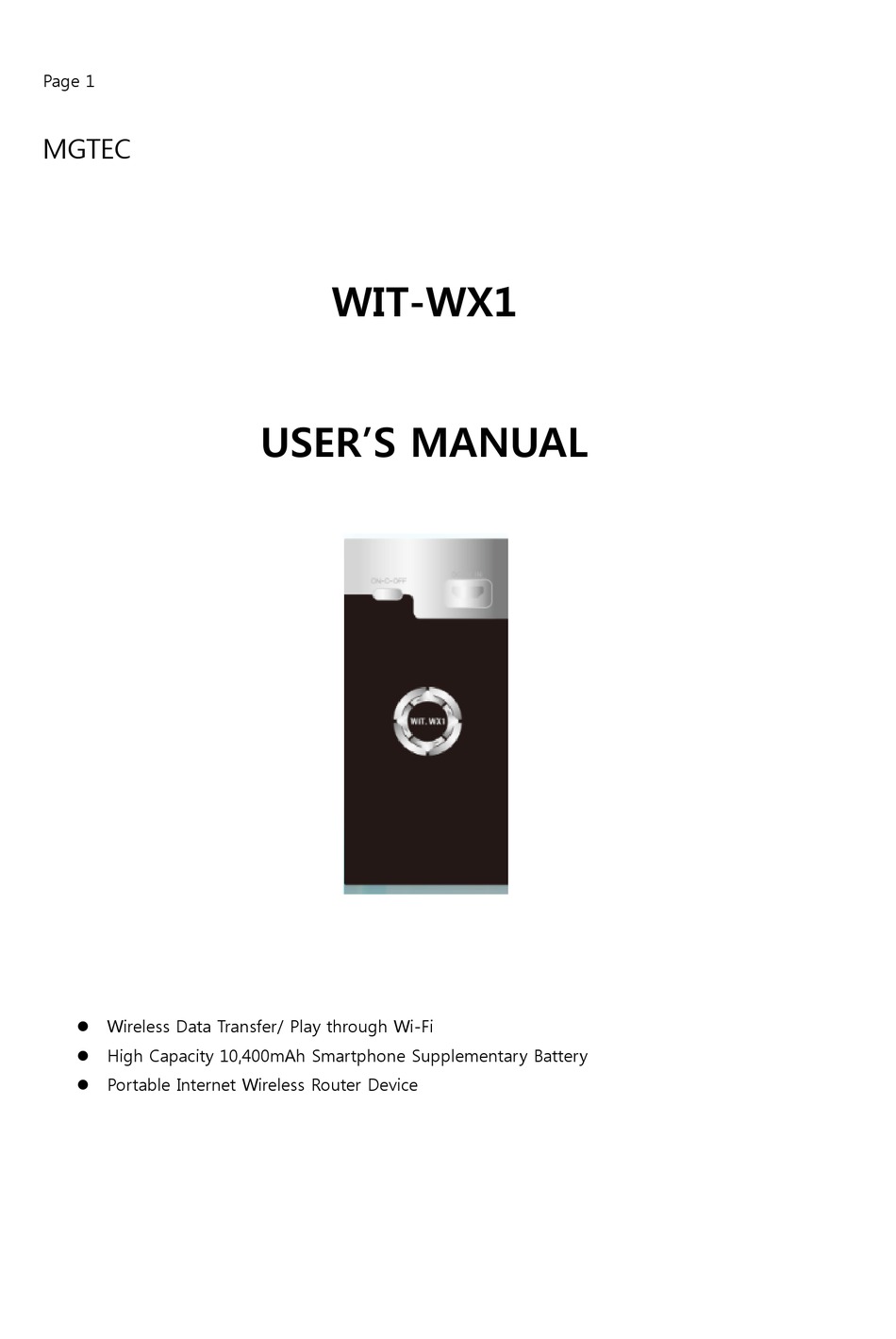

  • Page 1 Page 1 MGTEC WIT-WX1 USER’S MANUAL Wireless Data Transfer/ Play through Wi-Fi  High Capacity 10,400mAh Smartphone Supplementary Battery  Portable Internet Wireless Router Device ...
  • Page 2 Page 2 Precautions before Using the Product Thank you for using our MGTEC product. Before using the product, please make sure to read the product manual and the precautions while you use the product. If you have any question before...
  • Page 3 Google, Google Logo, Android, Android Logo, Android Market, Android Market Logo and YouTube are the trademarks of Google Inc. Microsoft, Windows, Windows Media and Windows Vista are the trademarks or the registered trademarks of Microsoft Corporation in USA and/or other countries. Wi-Fi®...

  • Page 4: Table Of Contents

    Page 3 Table of Contents WIT WX1 USER’S MANUAL Product Introduction ------------------------------------------------------------------------------------ 4 Product Function – Wireless Router Function --------------------------------------------------------- 6 Product Function – Wireless Storage Device Function (at PC or Laptop connection) ----------------7 Product Function – Wireless Storage Device Function (at Smartphone or iPhone connection) ----16 Product Function –...

  • Page 5: Product Introduction

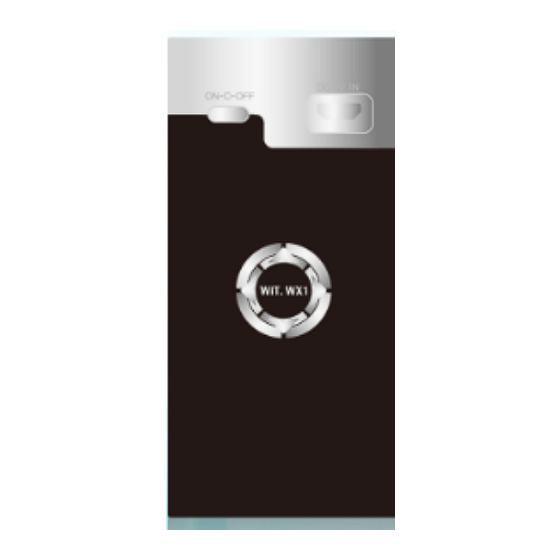

    Page 4 Product Introduction Product Introduction (1) Router Function such as External Hardware, USB Memory, etc. (Support Http, Samba, FTP, DLNA) (2) Large Capacity Supplementary Battery Function (Samsung SDI Large Capacity Battery- 10400mAh) (3) Portable Mini Wireless Router Product Buttons and LED Information ON-C-OFF Switch At ON: The product power is on, and you can use functions except the recharging function.
  • Page 6 Page 5 Product Introduction Battery Indicator You can check the remaining battery capacity when you push the battery indicator button. Note) mark displays the light on LED. Remaining 20% LED 50%LED 80%LED SYS LED Battery Capacity 20~50% 50~80% 80~100% Need Recharging Blinking Display Light (LED) Rapidly blinking...

  • Page 7: Reset Button

    “ON” When power You may recharge the rechargeable device with 5V, 1-2A. switch is set to “C” If you connect the LAN cable for the internet service to the WAN port, it is possible to LAN/WAN use internet through Wi-Fi signal of WX1. Reset Button If you press the RST button for about 8 seconds when the power is on, the setup of device shall be reset and all setup of device shall be changed to the first setup at the time of purchase.

  • Page 8: Product Function

    Step 3: Please click the wireless network connection icon at the bottom right of Window. Please connect by selecting MGTEC WX1 on Wireless network. Please make sure that MGTEC WX1 has been connected. Step 4: The setting to use internet has been completed.
  • Page 9 Page 7 Product Function Wireless Storage Device Function [Use at PC or Laptop] At the present era of which the dynamic exchange of information is considered very important, WX1 is the easiest and cleverest method of sharing the data. Through WX1, it is not only easy to use the contents of external devices such as the external hardware and USB memory on tablet PC, Smartphone and PC but also convenient to store and play files.
  • Page 10 Page 8 Product Function Step 3: You can see a successful connection status to the external storage device. SDA folder shall be formed as much as the number of partitions of the divided storage device. (Ref. SDA folder is formed for the system stability. Therefore, it is formed as the above when you connect the external hardware which is divided into three partitions.) Convenient Connection through Window Network (Only for window users) Step 1: After clicking the start button at the bottom left of window,...
  • Page 11 Page 9 Product Function Step 2: Enter user name and password at the Input Network Password. [Initial Value] User name; admin, Password: admin (Tip; Please select My Qualification Certificate if you do not wish to enter user name and password when you connect later.)
  • Page 12 Page 10 Product function Easy connection through window search engine (Only for window users) Step 1: Please turn on the window search engine. After you move the cursor to the computer icon and right click, select the Network Drive Connection. Step 2: Please enter ￦￦192.168.100.1￦public at the Input Folder box.
  • Page 13 Product Function Connect to “Connect to Server” (Only for Mac OS users) Step 1: Please use the button at the top right and connect WIFI of “MGTEC WX1”. Step 2: Please select Transfer-Connect to Server at the top menu bar.
  • Page 14 Page 13 Product Function Step 3: Please enter smb://192.168.100.1 at the server window. ([TIP] If you add this to the frequently used server, you can connect conveniently at later connection.) Step 4: Please enter name and password at the Name and Password input box. [Initial Value] Name: admin, Password: admin...
  • Page 15 Product Function Connection Using FTP (Free FTP Program: Use FileZilla) [Caution] FileZilla has all the rights of FileZilla. MGTEC only introduced for the purpose of convenient use for users, and there is no relation with the FileZilla program. [TIP] (You may download FileZilla through the website, http://filezilla-project.org) Step 1: Connect at the setup page (http://192.168.100.1).
  • Page 16 Page 15 Product Function Step 2: Please change the setup of FTP server to activation. [Caution] When FTP server is activated, the server connection through the browser may not be smooth. When you use it as a browser, please change FTP server to deactivation. Step 3: Open FileZilla.
  • Page 17 Wireless Storage Device Function [Used for Smartphone or iPhone] Connection through Android Web Browser Step 1: System Preferences– Wi-Fi Setup of Wireless and Network At System Preferences –Wi-Fi Setup of Wireless and Network, turn on Wi-Fi and select MGTEC WX1 on Wi-Fi Network.
  • Page 18 Connection through Free App (Free App, ES File Search Engine) [Caution] ES APP GROUP has all the rights of the file search engine. MGTEC only introduced it for the purpose of convenient use by users, and there is no relation with ES File Search Engine.
  • Page 19 Page 18 Product Function Step 3: Select the Scan Button at the bottom and scan. When you select the Scan Button at the bottom and scan, the icon of 192.168.100.1 as below shall be formed. Please select this button. Step 4: After you enter ID & Password and connect, then click PUBLIC Folder. ID: admin Password: admin If you select PUBLIC, you can use the contents of the external storage device.
  • Page 20 Page 19 Product Function Connection through WX1 iPhone Exclusive App Step 1: Please select “MGTECWX1” for Wi-Fi on setup like the following. Step 2: Search “MGTEC” at App Store and install “[MGTEC] File Share”.
  • Page 21 Page 20 Product Function Step 3: Open [MGTEC] File Share App. You may use the contents of the external storage device.
  • Page 22 Page 21 Product Function Connection through Free App (Free App, FTPManager Free) Step 1: Open FTPManager Free. Step 2: Please select the add icon (+ shape) at the top right. Step 3: Please enter the information as in the following picture and select the SAVE icon.
  • Page 23 Page 22 Product Function Step 4: Select the saved name at the previous step on the list of FTP SERVERS. Step 5: You can now use the contents of the external storage device as below. Recharge Function (Power Bank Function) As WX1 has a lithium ion battery of large capacity, it can recharge iPhone, iPad, Smartphone, Tablet PC, etc.
  • Page 24 WX1 Setup Access Setup Page Step 1: Connect to MGTEC WX1 at the Wi-Fi Setup of device used. Step 2: Enter http://192.168.100.1 in the address bar of the web browser. Step 3: When the window security appears, enter the user name and the password.
  • Page 25 Page 24 WX1 Setup Internet Connection Setup Set to Dynamic IP Address [TIP: When you use the internet by connecting the Ethernet cable (LAN cable), it is recommended to set up to Dynamic IP Address] (1) Select Cable Setup-WAN Setup on the left Menu. (2) Select Dynamic IP Address among the WAN setup options on the right screen, and if necessary, click the save button at the bottom after entering the parameter values at the bottom.
  • Page 26 Page 26 WX1 Setup Setup to WIFI REPEATER When WIFI signal is weak, WIFI Repeater can widen the wireless transfer space effectively. (1) Select Cable Setup-WAN Setup on the left Menu. (2) Please select the “Scan WiFi Hotspot’ button after selecting Wi-Fi REPEATER among WAN setup options on the right screen.
  • Page 27 Page 26-1 WX1 Setup Setup to WIFI REPEATER (4) After checking the information (Approval method, Encoding method, Password, etc.) about the Hotspot (Wireless Router) currently selected, click the save button after entering the password at the Hotspot key part if the password is needed to use the Hotspot.
  • Page 28 Page 27 WX1 Setup Wireless Setup Wireless Encoding Setup (1) Select Wireless setup – Wireless Encoding on the left Menu. (2) After selecting the desired Encoding Method, click SAVE to complete the password setup. [Reference] For the safe wireless network, we recommend WPA-PSK or WPA2-PSK encoding, and we would like to introduce WPA2-PSK encoding setup method.
  • Page 29 Page 29 WX1 Setup Change Password (1) Select CHANGE PASSWORD at the System Tool Menu on the left. (2) After entering the existing password and the password desired to change, click the SAVE button. Then the password change shall be completed. [Initial Password value: admin] WX1 Recharging Method (1) Recharge by connecting the adapter to the power port by using a power adapter (5V,...

  • Page 30: Precautions For Use

    Page 30 Precautions for Use 01) Please do not apply a strong impact and pressure to the battery of the device such as making a hole to the device with a nail, hammering the device, being bitten by a pet dog, sitting with the device in a pocket, and stepping on the device.
  • Page 31 18) When you dispose the product including the battery, separate the battery and do not disassemble the battery itself, but cover it with vinyl to prevent the external substances to affect the battery and dispose. [TIP] How to use the battery of the device for a long period 1.
  • Page 32 2) The device is not connected through the applications. (1) Please check whether the device is properly connected with Wi-Fi. 3) “MGTEC WX1” does not appear on the Wireless Network List. (1) Please check whether the power switch of the device is set to ON.
  • Page 33 Page 32 Q&A Video 1) The video does not play on Smartphone. (1) Please check whether the video player application used supports the codec of the corresponding video file. (2) Please refer to the HELP of the corresponding application about the video player. 2) There is an interruption while playing the video.

  • Page 34: Product Specification

    Page 33 Product Specification Product Size 86mm x 41mm x 41mm Weight About 230g Battery Brand Name Samsung SDI Battery Capacity 10400mAh Product Use Hours About 20 hours Possible Recharging Capacity Possible to recharge about 4 Smartphones Internet Setup Fixed IP, Dynamic IP, PPPoE, Wi-Fi Repeater Network Support Storage USB Memory, External Hardware Support Format Type...

  • Page 35: Product Warranty

    The user will cover every expense for the transportation of product without any defect. Service Center Consultation Contact Numbers [Main Lines] 1588-0765/1899-2968 [Seoul Yongsan Branch] 02-718-0765 [FAX] 031-214-5957 Weekdays (10:00 – 18:00), Saturdays (10:00 – 15:00) Lunch Hour (12:00 – 13:00) Sundays and Holidays are closed Internet Customer Support http://www.mgtec.co.kr...
