Vynco VLWLED4 Installation Instructions Manual

www.vynco.co.nz
Specifications
Suitable for ceiling or wall mounting and suspending
ABS base and Polycarbonate cover
Voltage: 220 to 240V a.c. 50Hz
Wattage: 24W
Lamp Type: Epistar LED
Luminaire Class: Class 1
Lumen Output 1920 Lm
Colour Temperature: 4000K
Degree of Protection: IP65
Suitable for indoor and outdoor applications
LED Driver Approval No: TUV16078EA

DIMENSIONS

CODE LENGTH
(mm)
VLWLED2 658

SAFETY

This product should be installed by a suitably qualified person in accordance
with Australian and New Zealand Wiring rules. Always disconnect the power
to the fitting before opening the cover. In the case of lamp failure, disconnect
from mains supply and return to Vynco for service.
Warranty
This product is covered by the standard 3 year Vynco Warranty - proof of
purchase is required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
INSTALLATION INSTRUCTIONS AND SPECIFICATIONS
for VLWLED range of Weatherproof Fixtures

WIRING

L = Live or Phase – Brown or Red
E = Earth – Green or Green/Yellow
N = Neutral – Blue or Black
WIDTH HEIGHT
(mm) (mm)
158 101
Vynco Industries (NZ) Ltd
IP65
WEIGHT No. of clips
(kg)
1.32 4
Phone +64 3 379 9283 or +64 9 525 6051

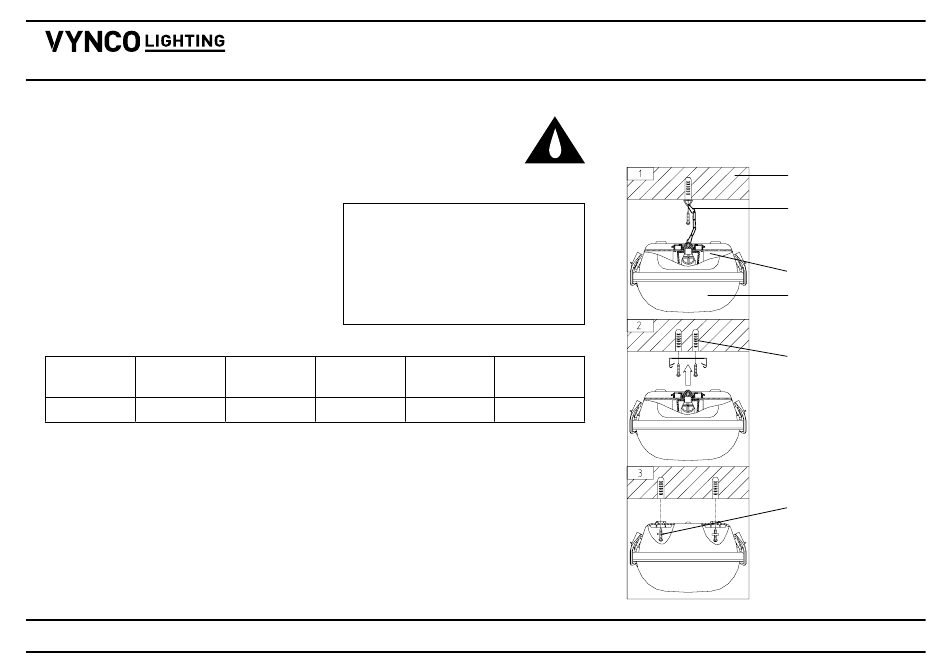

MOUNTING
CAUTION -
Ensure the IP rating is maintained
when mounting on to any surface or suspending.
Ceiling (cement)
Chain (
Base
Cover
Expansion bolt (
Rubber gasket (
Φ
2mm)
Φ
6)
Φ
4)
