Summary of Contents for Intellinet 780094

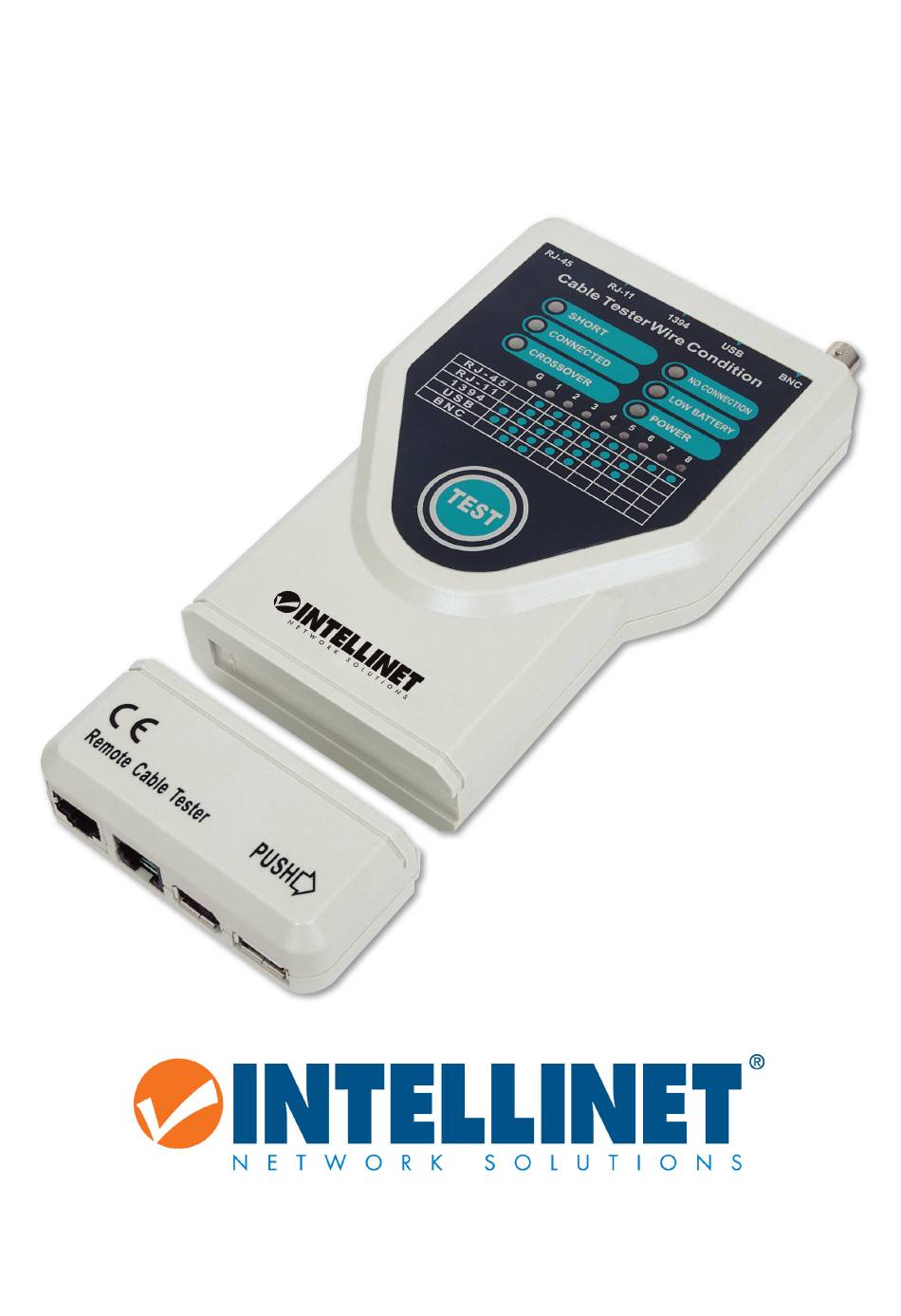

- Page 1 5-in-1 Cable Tester User Manual Model 780094 intellinetsolutions.com INT_780094_UM_0119_REV_5.01...
- Page 2 5-in-1 Cable Tester User Manual INTRODUCTION The 5-in-1 Cable Tester performs tests on five common types of LAN and computer cables: • RJ45 • RJ11 • FireWire/1394 • USB Type A to B • BNC The product consists of a Main unit (A) and a Remote unit (B). A plastic insert on the Remote unit fits a track at the bottom of the Main unit to keep the two units together and to test both ends of a cable that are within reach of the tester.
- Page 3 User Manual 5-in-1 Cable Tester...
- Page 4 5-in-1 Cable Tester User Manual OPERATION The 5-in-1 Cable Tester provides information about the correct or incorrect wiring of in-wall and out-of- wall cables. Pressing the Test button (I) turns on the power to the unit and, once a cable is connected to the tester, tests the cable.
- Page 5 User Manual 5-in-1 Cable Tester CABLE CONDITION Damage When a cable test results in a negative reading, the wire, the connectors or both may be at fault. If the cable has been installed and has been shown to work, it’s likely that the wire or connectors have been abused in some way.
- Page 6 5-in-1 Cable Tester User Manual CAUTIONS WARNING! This tester in not intended for use on powered circuits. Attaching this tester to a powered circuit can damage the device and injure the user. In addition, the following safety guidelines should be kept in mind while using this tester for the protection of both the user and the device itself.
- Page 7 User Manual 5-in-1 Cable Tester NOTES...
- Page 8 © IC Intracom. All rights reserved. Intellinet Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
