Rossum Control Forge Quick Start Manual page 2

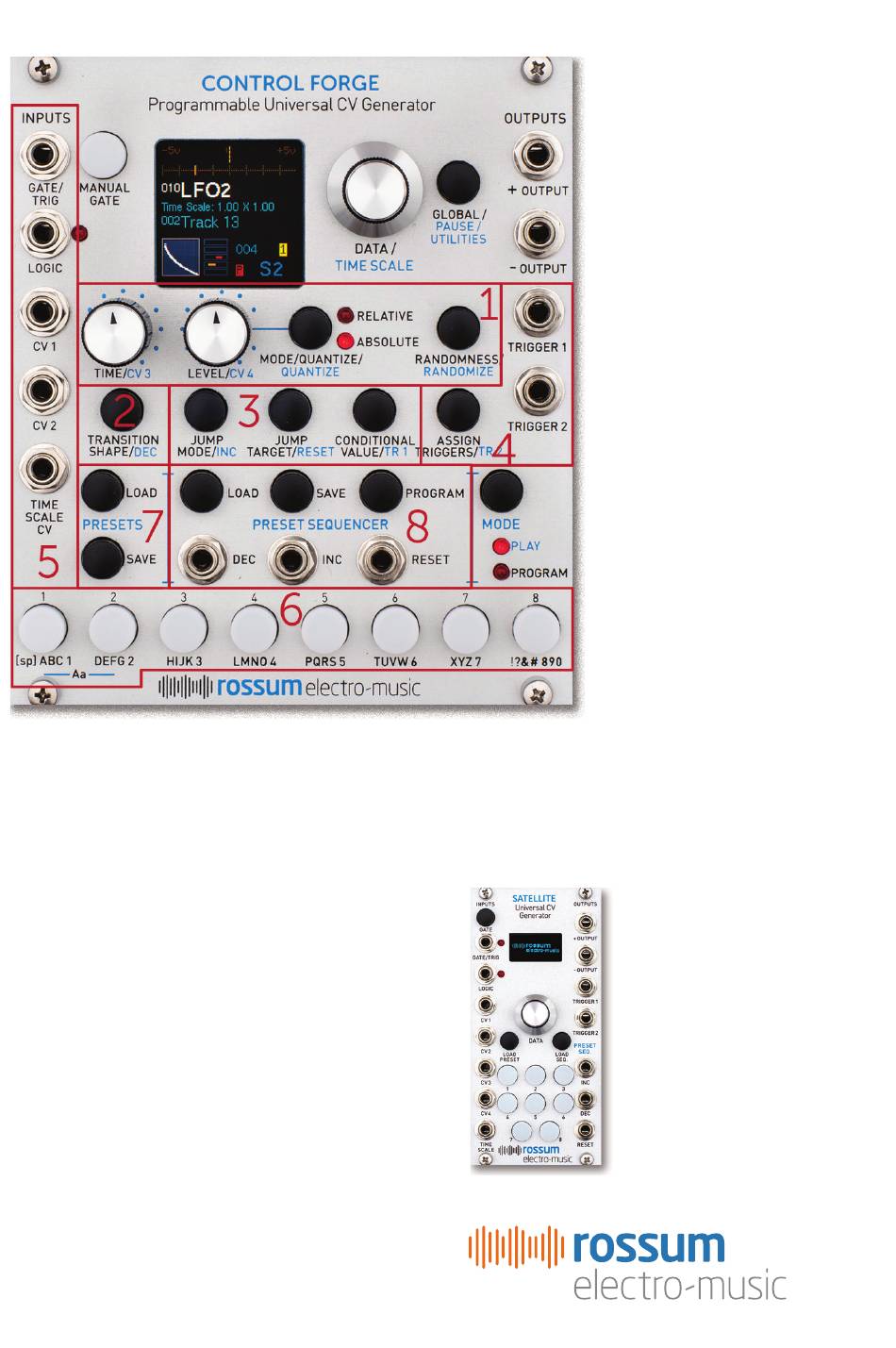

Functional Overview
1 TIME & LEVEL
target level of each segment. Levels can
be defined absolutely or relative to the
ending level of the previous segment, can
be quantized to the nearest 1/12 volt, and
can have a range of randomness of either
linear or gaussian distribution.
2 TRANSITION SHAPE
can have one of 67 different transition
shapes, including the ability to pass
CVs directly through to the output for
individual segments.
Also included are "DC" shapes that allow
the module to be used as a sequencer.
Sequences can be hundreds of steps long
and modified in real time manually or by
CVs.
3 CONDITIONAL JUMPS
segment may have a conditional jump
that results in a jump to another selected
segment (or to a completely different
preset) if a particular condition is met
(e.g., a CV being above or below the
Sets the duration and
Each segment
Each
selected conditional value,
the presence or lack of a
gate or logic high at their
respective inputs, etc).
4 TRIGGERS
independent triggers can
be programmed to fire in
response to a variety of
events and can be used to
affect either Control Forge
itself or external modules.
5 GATE/TRIG, LOGIC,
& CVS
allow external control of
triggering, time scaling,
and CV level testing for
conditional jumps.
6 SEGMENT
BUTTONS
segments for editing and to
manually jump to selected
segments in performance.
7 PRESETS
can be saved and recalled.
8 PRESET SEQUENCER
through up to 200 user-defined series of
presets under trigger, clock or manual
control, for contours and sequences of
almost unlimited length and complexity.
+
and sequences can be
transferred to any number
of Satellite modules, which
can then operate as stand-
alone modulation sources,
completely independent of
the Control Forge.
www.rossum-electro.com
Two
Inputs that
Used to select
500 presets
Allows stepping
SATELLITE All presets
