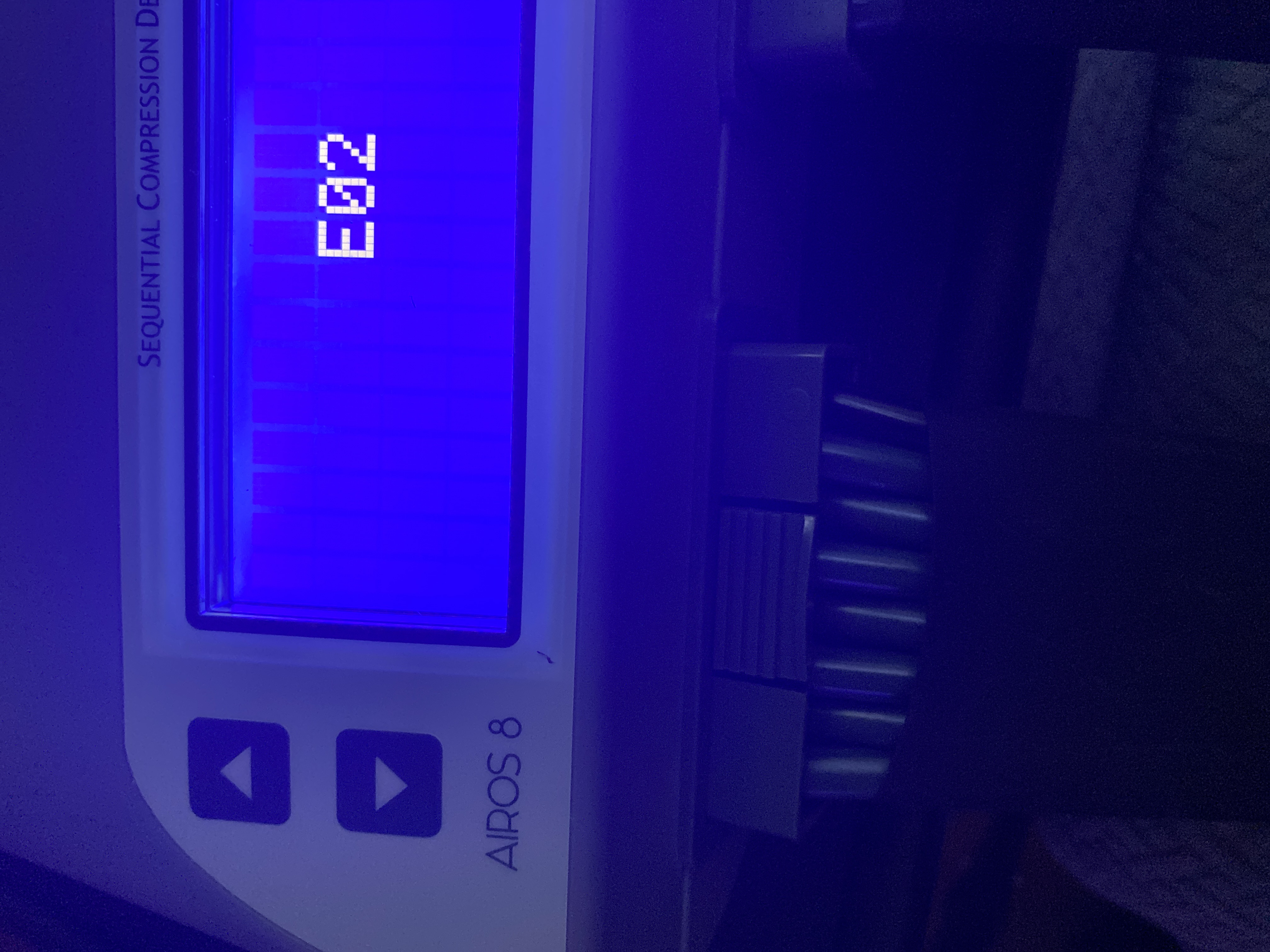

Error R02 what do I do?

User image 6840b567d885f

Subscribe to Our Youtube Channel

Summary of Contents for AIROS AIROS 8

  • Page 1 AIROS 8 Sequential Compression Device OPERATING INSTRUCTIONS FOR USE GUIDE www.airosmedical.com 1.866.991.6956...
  • Page 3: Table Of Contents

    Table of Contents Indications for Use & Contraindications ..... . 1 Overview & Description of Symbols ......2 General Equipment Specifications .
  • Page 4: Indications For Use & Contraindications

    Indications for Use The AIROS 8 Sequential Compression Device utilizes gradient pneumatic compression, which is intended for treatment of patients with the following conditions: • Lymphedema • Venous stasis ulcers • Venous insufficiency • Peripheral edema The device is safe for both home and hospital use.
  • Page 5: Overview & Description Of Symbols

    Overview & Description of Symbols NOTE: Refer to Accompanying Documents for more information regarding the system use or description. Type BF - Applied Part Dangerous Voltage – Electrical Shock Hazard Disconnect Line Cord before servicing. Refer servicing to a qualified service representative. Class II Equipment Protected against solid foreign objects of 12.5mm Ø...
  • Page 6: General Equipment Specifications

    General Equipment Specifications 10.2” W x 10.5” D x 4.3” H Dimension (260 mm W x 267 mm D x 110 mm H) 6.7 lbs. (3.05 kg) Weight User Set Inflation 12 Seconds Deflation User Set Cycle Time 120 VAC, 60 Hz, 100VA MAX Electrical 2.5 AMP T250VACH SLO-BLO Fuse Rated...
  • Page 7: Device Description & Operating Principles

    TThe application of gradient sequential compression increases blood flow and encourages extracellular fluid clearance. The AIROS 8 system consists of the device and 8-chambered garments. The device provides cycles of compressed air at certain adjustable pressures, and sequentially inflates the garments from distal to proximal. The pressure at each chamber can be individually adjusted to accommodate different therapy needs.
  • Page 8: Front Panel: Button Functions

    Device Panels: Front Panel UP B UTTON LCD SCRE E N START|STOP BUTTON D OW N BU TTON STATUS LED LIG HTS SE LE CT BUTTO N GARME NT CO NNECTOR PORTS Button Functions Status Indication • START|STOP BUTTON: Allows •...
  • Page 9: Back Panel: Power Switch, Fuse & Plug

    Device Panels: Back Panel MAIN PO WE R SW ITCH P O WE R PLUG FUSE • MAIN POWER SWITCH: Power can be turned on or off. • FUSE: One (1) time-delayed fuse inside for protection against electrical short circuit. POWER PLUG: •...
  • Page 10: Garment Overview

    8-Chamber Garment The segments within the garments are constructed to prevent ‘ridging.’ (Ridging occurs if there is a gap between two compressed areas of tissue. Tissue is forced towards the gap causing a creased area with restricted blood flow.) The design of the garments ensures high patient comfort. •...
  • Page 11: Device Operation Specifications

    Chamber Selection 10 or 15 minutes Therapy Time Primary Operating Mode The AIROS 8 can be used in two primary Operating Modes: Gradient Mode or Pressure Mode. Gradient Mode: User can set the starting pressure in Chamber 1 on the •...
  • Page 12: Operating Instructions

    Device Operation Specifications (cont.) Secondary Operating Modes The AIROS 8 can also be used in two secondary Operating Modes: Focal Mode or Clearing Mode. • Focal Mode: User can choose to utilize this mode to tenderize the tissue in a limb or limbs affected by Lymphedema Fibrosis. Treatment can be applied using four specific chambers in the garment (1-4, 2-5, 3-6, 4-7 or 5-8, selected by the user).
  • Page 13 Operating Instructions (continued) 2.4. Directions for Applying Leg Garment(s) Unzip the garment all the way. Place foot at the bottom end of the garment and pull up the zipper while supporting the garment. Ensure that the garment wraps completely around the leg. 2.5.
  • Page 14 START-UP SCREEN of the device to the “ON” position. The device’s screen will illuminate. The START-UP SCREEN will appear. AIROS MODEL 8 To use the device for the first time and begin treatment PRESS START/STOP TO immediately with Factory Default settings, press the BEGIN TREATMENT NOW orange START|STOP BUTTON.
  • Page 15 Operating Instructions (continued) This is the THERAPY MODE SELECTION SCREEN. THERAPY MODE SELECTION SCREEN To utilize Gradient Mode therapy, press UP  or DOWN  to scroll to GRADIENT MODE. Press SELECT to confirm and proceed to 3.5. GRADIENT MODE ...
  • Page 16 Operating Instructions (continued) To set the Therapy Time, press UP  or DOWN  to scroll to THERAPY TIME. Press SELECT to confirm. The therapy time will begin blinking. Press UP  or DOWN  to scroll to 15, 30, 45, or 60 minutes. Press SELECT to confirm. The cycle time will be updated and stop blinking.
  • Page 17 Operating Instructions (continued) To set the Pressure, press UP  or DOWN  to scroll to FOCAL THERAPY MODE PRESSURE. Press SELECT to confirm. The pressure will SET-UP SCREEN begin blinking. Press UP  or DOWN  to choose from 40, 45, or 50 mmHg.
  • Page 18 Operating Instructions (continued) NOTE: Press UP  or DOWN  to scroll to MORE or PRESSURE MODE SET-UP PREVIOUS to view additional settings options. SCREEN To set the Pressure in each chamber, press UP  or SET PRESSURE: 1-8  DOWN ...
  • Page 19 Operating Instructions (continued) If you select FOCAL THERAPY, refer to 3.6 before continuing. If you select CLEARING THERAPY, refer to 3.7 before continuing. If you do not wish to run an LPT Mode option, scroll to OFF. Press SELECT to confirm. The LPT MODE setting will be updated and stop blinking.
  • Page 20 Operating Instructions (continued) 4. End of Therapy 4.1. Therapy will end after the treatment time has elapsed. The user can also stop therapy at any time during a treatment session by pressing the START|STOP BUTTON 4.2. When therapy is ended, the device will vacuum air out of the garment for three minutes (180 seconds).
  • Page 21: Troubleshooting

    The LCD screen will read E03, the red LED light will illuminate, and an alarm will sound. NOTE: If you receive any of these error messages, press the START|STOP BUTTON, which will begin deflation of the garments. Then, contact your local authorized dealer or AIROS Medical.
  • Page 22: Attaching & Detaching Garments

    NOTE: The outer safety fuse is the only item serviceable by someone other than an AIROS Medical trained technician. AIROS Medical trained technicians have been trained specifically for the manufacture and repair of all AIROS Medical devices.
  • Page 23: Garment Care & Cleaning Instructions

    NOTE: If directed methods for cleaning the garments do not remove all soiling, discard the garments and contact AIROS Medical or an authorized AIROS Medical dealer to obtain new garments. Garment Sizes Contact AIROS Medical or your dealer to learn more about how to determine sizing. MODEL MODEL NUMBER TYPE...
  • Page 24: Device Disposal

    (3) years from the date Device is delivered to the original purchaser (“Warranty Period”). AIROS Medical warrants the garments for the Devices to be free from defects in workmanship and materials for a period of one (1) year from the date the garments are delivered to the original purchaser.
  • Page 25: Product Classification

    NOTE: This unit is not field-serviceable. Tampering with or dismantling this unit in any way will void warranty. If you have questions or need assistance, please contact your local authorized dealer. Manufactured for: AIROS Medical, Inc. 2501 Monroe Blvd., Suite 1200 Audubon, PA 19403 1-866-991-6956 www.airosmedical.com...
  • Page 26: Guidance & Manufacturer's Declarations

    The AIROS 8 Sequential Compression Device needs special precautions regarding EMC and needs to be installed and put into service according to EMC information provided in the Operating Instructions. Portable and mobile RF communications equipment can affect the AIROS 8 Sequential Compression Device. Technical Description...
  • Page 27: Electromagnetic Emissions

    Electromagnetic Emissions The AIROS 8 Sequential Compression Device is intended for use in the electromagnetic environment specified below. The customer or user of the AIROS 8 Sequential Compression Device should assure that it is used in such an environment. EMISSIONS...
  • Page 28 Electromagnetic Immunity The AIROS 8 Sequential Compression Device is intended for use in the electromagnetic environment specified below. The customer or user of the AIROS 8 Sequential Compression Device should assure that it is used in such an environment. Immunity Test...
  • Page 29 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the AIROS 8 Sequential Compression Device is used exceeds the applicable RF compliance level above, the AIROS 8 Sequential Compression Device should be observed to verify normal operation.
  • Page 30 The AIROS 8 Sequential Compression Device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AIROS 8 Sequential Compression Device can help prevent electromagnetic interference by maintaining a minimum distance between...
  • Page 31 N O T E S...
  • Page 32 www.airosmedical.com 1.866.991.6956...
