Summary of Contents for GEP C1

  • Page 1 GEP C1 User Manual...

  • Page 2: Important Notes

    Important notes: Use only the power adaptor attached with the product. Use unauthorized power adapter may cause damage to your IP Camera. IP Camera terminal shall be installed in an indoor environment where the rain or snow could not pour it. Do not touch the lens of the IP Camera at will.
  • Page 3 1 WELCOME GEP C1 is a high-resolution (720P), feature-rich digital wireless IP Camera, designed for superior performance in home/office environments. It combines a high quality digital Video Camera with network connectivity and powerful android/IOS Apps to bring clear live video to you wherever you are over the Internet.

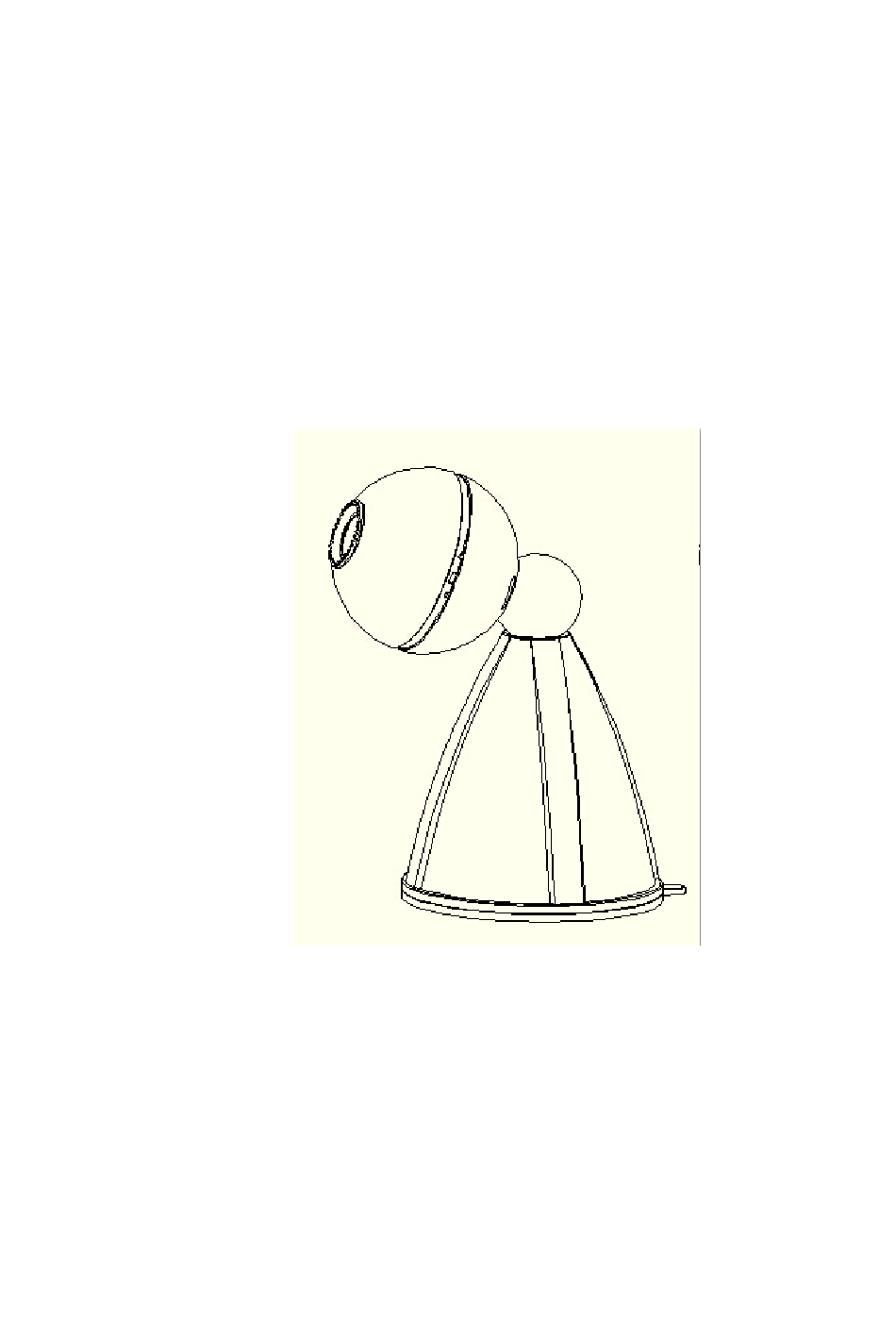

  • Page 4 4. Camera installation 4.1 For hardware installation, please follow below steps. Step1. Place the suction cup on a smooth surface (such as glass, marble or metal etc.), and press the cup tight onto the surface. Step2. Hold and rotate the cup body 90° until it was fastened.
  • Page 5 Blue LED flashes slowly. b. Camera is connected to local Wi-Fi when 5. Input your local Wi-Fi 4. Press “Wireless” for Model Blue LED stops flashing. At this time, Camera password C1 and C3 Wi-Fi SSID can’t be found.
  • Page 6 8. Input device password, the 9. Done and ready for Real 7. Press “+” to proceed default is “admin”. This password time streaming needs to be changed later for safety reason. 4.5 “Android” Advanced setting Device Security Code (Device Password) must be reset after initial installation to enhance safety.
  • Page 7 Blue LED flash slowly. c. 5. Input your local Wi-Fi 4. Press “Wireless” for Model Camera is connected to local Wi-Fi when Blue password C1 and C3 LED stops flashing. At this time, Camera Wi-Fi SSID can’t be found.
  • Page 8 8. Done and ready for Real 7. Input device password, the time streaming default is “admin”. This password needs to be changed later for safety reason. 4.7 “IOS” Advanced setting Device Security Code (Device Password) must be reset after initial installation to enhance safety.
  • Page 9 5 “View window” settings “Mirror” the view “Environment” settings “Mic”; default is close “Flip” the view view Record video at mobile phone Snap shoot at mobile phone Adjust video quality manually 6 “Device” settings Press the circle at up-right corner of each living view window to active the device setting panel.
  • Page 10 -- You need to increase the sound volume of your mobile device. 7.7 Can’t talk when press the “Mic” button -- This function does not work at this model (C1). 7.8 Can’t add the same camera to another mobile device -- Please select “WIRED”...
  • Page 11 8. Specifications ITEMS GEP C1 Image Sensor High Definition Color CMOS Sensor Sensor Display Resolution 1280 x 720 (1 Mega pixels) Lens Type 2.8mm Glass Lens Lens Angle of View 95° Image Compression H.264 Image Frame Rate 30fps maxmium, downward adjustable...

  • Page 12: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
