Summary of Contents for Royal Home Massage bathtub Series

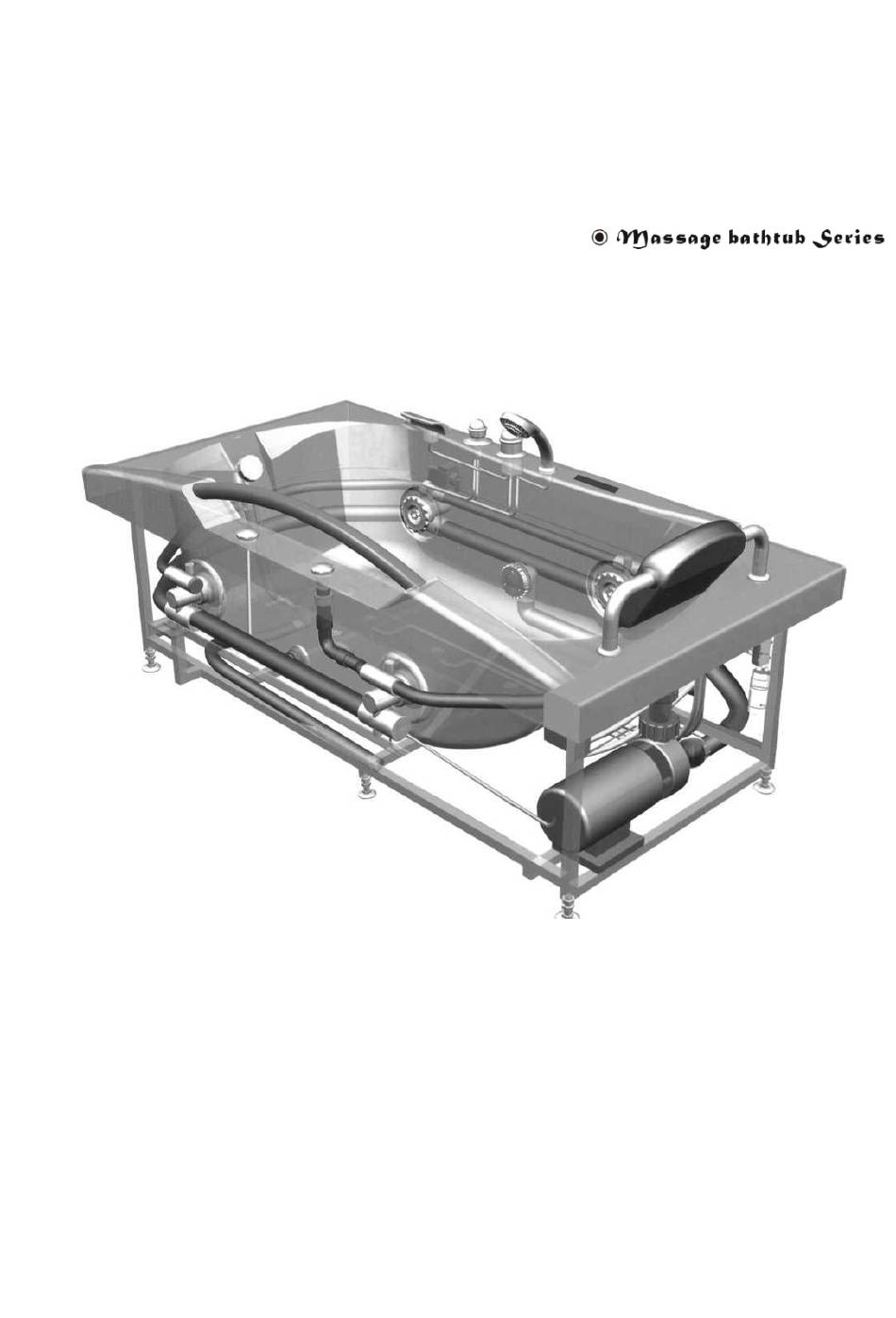

- Page 1 Installation and Operation Manual...
-
Page 2: Before Installation
Before operation, please read this manual carefully, so as to use this product properly. Preface We heartily thank you for choosing our massage tub series product. This product, belonging to the new-generation healthy and leisure category, has been meticulously made with carefully selected materials, with the features of simplicity, elegance, comfort, practicality high quality and affordability, etc. -
Page 3: Safety Precautions
Safety precautions 1. Installation, testing, repair or replacement of this product must be done by professional or person sent by dealer. 2. Power supply facilities connected to this product must meet national standards, and all power supply parameters must tally with this product (See electric parameters chart). -
Page 4: Installation Method
Diagram of massage tub Main devices ① Massage Jet ⑦ Water Force Adjustment: ② Function Changer Switch ⑧ Water Suction Device ③ Cold Water Control ⑨ Pillow ④ Hot Water Control ⑩ Drainer ⑤ Multifunctional Shower Head ⑪ Draining switch ⑥... - Page 5 Waterfall installation Screw positioning hole Tub surface Slotted positioning screw Tub surface Hexagon positioning screw ' Waterproofing mat Waterfall nut Waterproofing mat Waterfall nut Waterfall inlet pipe sign Connecting function switching single handle Waterfall inlet pipe sign Connecting function switching single handle Gooseneck waterfall installation diagram Square pipe waterfall installation diagram Screw positioning hole...
- Page 6 Water pipe diagram for waistdrum deluxe 5-piece kit Water pipe diagram for square-shaped deluxe 5-piece kit Waterfall Shower head Waterfall Shower head Function switching Temperature adjustment Function switching Temperature adjustment Tub surface Tub surface Water pipe diagram for conical deluxe 5-piece kit Waterfall Shower head Function switching Temperature adjustment...
- Page 7 Water pipe diagram for conical kit Shower head Waterfall Function switching Temperature adjustment Tub surface Installation drawing Radio antenna...
- Page 8 System wiring drawing Warning: Qualified technician is requiried to install the system. The leakage protection switch should be installed in the right place. Or manufacture will not be responsible for user because of it. Please make sure all wirings install well before use it If any technical information changed we will not inform Control panel function description...
-
Page 9: Remote Control Use
Remote control use Main switch ON/OFF Telephone FM/CD exchange (Telephone dial-up 0) Heater (Telephone dial-up 2) Water inflow or outflow Memory (Telephone dial-up 3) (Telephone dial-up 1) Temperature set (Telephone dial-up 4) O TUN+ (Telephone dial-up 6) (Telephone dial-up 5) Underwater lamp (Telephone dial-up 7) Massage pump TUN- (Telephone dial-up 9) (Telephone dial-up 8) Air bubble... -
Page 10: Radio Section
normal, will be shown. When water temperature higher or the same as the temperature your setting, it will be non-work Will be shown. During constant temperature, water temperature must be 2°C lower than the (constant temperature). temperature your setting then can be work again. The temperature you setting shows Temperature set: Press press... -
Page 11: Electrical Installation
3) AUTO Channel: Press for 2 seconds then be in AUTO channel selection model, LCD shows . Then system will search channels (87.5-108Mhz), LCD will show the frequency you are searching. When search channel, LCD shows 1CH, means system searchs the first channel, also memroy it. Then system will search channels by automatically, till 20 Channels or all frequency.
