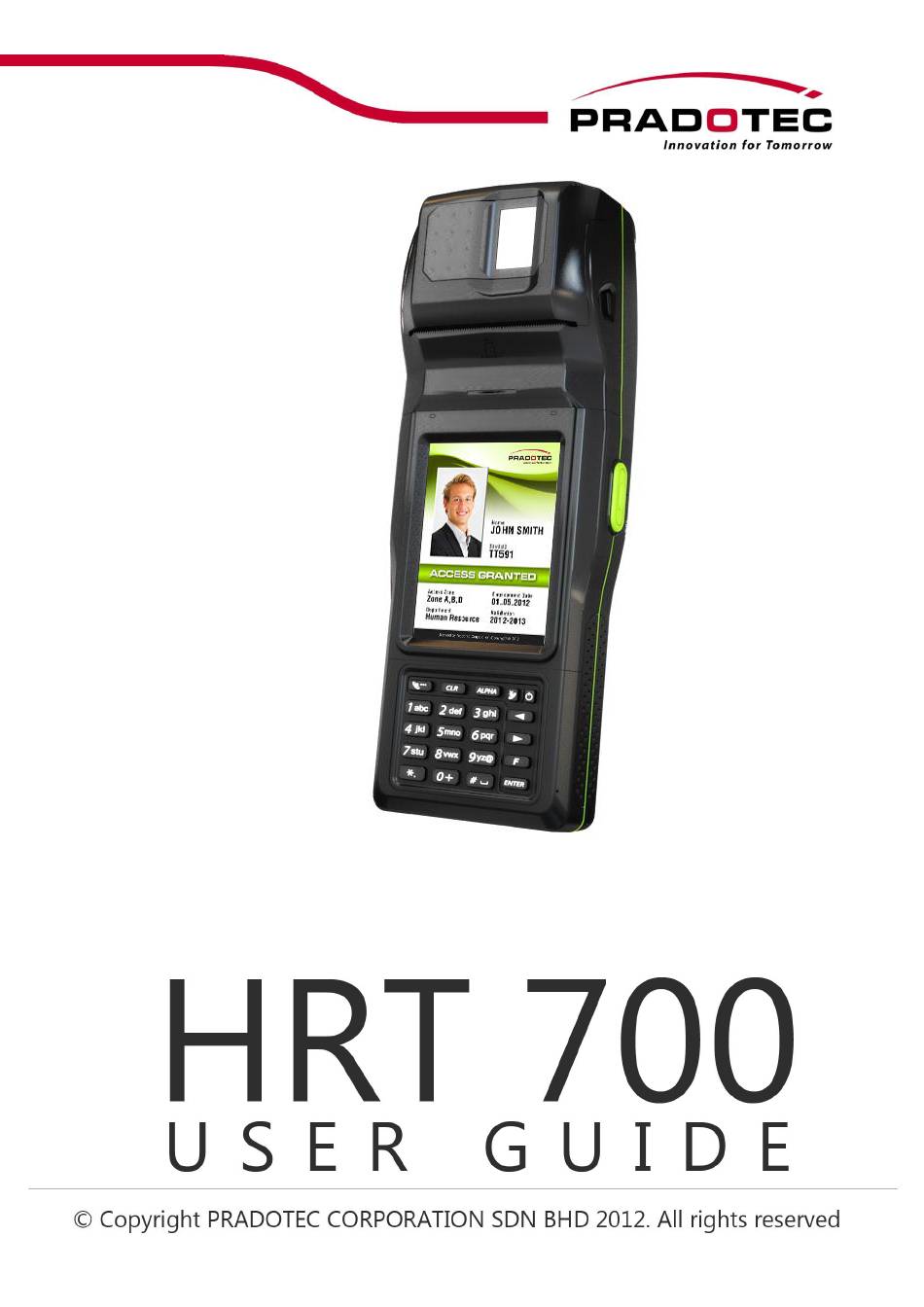

Pradotec HRT 700 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRT 700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pradotec HRT 700

  • Page 2: Table Of Contents

    Table of Contents KNOWING YOUR DEVICE EVICE PECIFICATION BASIC INSTALLATIONS SIM/SAM UIDELINE FOR NSTALLING CARD SD C UIDELINE NSTALLING ICRO FIRST TIME USE CREEN ALIBRATION ATE AND ONE CONFIGURATION TOUCH SCREEN OPERATIONS USING THE STYLUS START MENU HELL TASKBAR HRT700 HE TASKBAR APPEARS ON THE TOP OF YOUR SCREEN SOFTWARE INPUT PANEL (SIP)
  • Page 3 UDIO OLUME TYLUS ROPERTIES & D – U ETWORK ONNECTION EGIONAL ETTING WNER ROPERTIES PC C ONNECTION TORAGE ROPERTIES YSTEM ROPERTIES ASSWORD ROPERTIES CREEN OTATION & S ASKBAR ECURE HELL LUETOOTH EVICE ROPERTIES NPUT ELECTION ANEL & T ROPERTIES NTERNET PTIONS EMOVE ROGRAMS...

  • Page 4: Knowing Your Device

    Knowing Your Device FRONT...
  • Page 5 BOTTOM BACK SIDE...

  • Page 6: Device Specification

    Device Specification SYSTEMS Memory 256MB DDR-2 RAM, 4GB Flash Memory Expansion 1 x micro-SD Memory Slot (Support up to 32GB) Device Operating System WinCE 6.0 Host PC Operating System Windows® 7/ Vista/ XP Programming Language C++ Programming, NET Programming in Microsoft® Visual Studio 2005 COMMUNICATION INTERFACES Bluetooth Bluetooth Version 2.0...

  • Page 7: Basic Installations

    Basic Installations Charge the Battery Your battery has been partially charged at the factory, but you may need to recharge it for 4 hours before you can switch on your device for the first time. Guideline for Installing SIM/SAM card When you subscribe to a Cellular Network, you are provided with a SIM card loaded card loaded with your subscription details (PIN, optional services available and etc).

  • Page 8: Guideline For Installing Micro Sd Card

    8) Push down the SIM slot cover and slide outward to lock it 9) Place the battery pack followed by battery cover 10) Push the wing lock to secured the battery cover and finally install back the hand strap To insert the SAM cards 1) It will be the same as inserting the SIM card, but on the others three slots 2) SAM card is for internal security Guideline For Installing Micro SD Card...

  • Page 9: First Time Use

    First Time Use Screen Calibration Once the charging has completed, turn on the unit by pressing the power button. On the first time basis, it is advisable to calibrate the screen by going to: Start -> Settings -> Control Panel -> Stylus.

  • Page 10: Touch Screen Operations

    Touch Screen Operations The following defines the various operations that you can perform with the stylus. Touch the screen once with the stylus to select items or options Double Tap Tap the item twice to open or execute a program Drag Hold the stylus on the screen and drag across the screen to select text and images.

  • Page 11: Start Menu

    Start Menu Your HRT700 is pre-installed with a collection of useful programs. These include Microsoft WordPad and customized programs. You can select the program you want from the Start button or by tapping on the screen; a list of customized programs will be shown. Taskbar Items The Control Panel includes the following standard items which allow user to customize system wide properties.

  • Page 12: Shell Taskbar

    Shell taskbar The taskbar appears on the top of your HRT700 screen. Start button Single tap to display the Start menu Active application Display the latest application running Left Single tap to see the hidden icon on the left Direct Connection Double tap to execute the direct network status dialog WI-FI Connection Double tap to execute the WI-FI network setting...

  • Page 13: Software Input Panel (Sip)

    Software Input Panel (SIP) On the taskbar of the HRT700, tap on the SIP icon. The software input panel will be shown at the bottom of the screen. Tap on the SIP icon again in order to hide the software input panel.

  • Page 14: Keypad

    Keypad Learning to use your keypad is easy. This section will describe the basic concept of using the keypad in writing a message or executing a task like increasing volume. Controls and Interfaces Clear entry or Keypad input Backspace function mode Power on, Wake or Suspend Nav.

  • Page 15: Customizing Your Hrt700

    Customizing your HRT700 You can customize your setting of your HRT700 to suit your particular needs. E.g. Setting password, so that nobody can use your handheld or change the background display and etc.. Tap on Start -> Settings -> Control Panel, as shown on the previous page.

  • Page 16: Lcd Brightness Control

    LCD Brightness Control The unit can be powered by either battery or external power. Users may change the brightness of the LCD backlight through the backlight control panel applet according to the power mode. Adjusting Display Brightness Use the following operations to adjust display brightness to make it easier to read. and click Settings and choose Control Panel.
  • Page 17 Adjust How the Screen Light can be Turned On and click Settings and choose Control Panel. On the Control Panel, tap Dimming Setting. Select the LCD Light tab. Below the Brightness Change option, there is two more option for screen light setting. Select Touch screen or Keypad in order to turn on the light of the LCD by touching either the touch screen or keypad, or select Touch screen only to turn on the light of the LCD by touching the screen only.

  • Page 18: Keypad Light Control

    Keypad Light Control Adjust Light Emitting Duration for Keypad and click Settings and choose Control Panel. On the Control Panel, tap Dimming Setting. Select the KeyPad Light tab. Select duration from 3 seconds to 30 seconds, as after that selected duration, the keypad light will be off. Adjust How the Keypad Light will be Turned On and click Settings and choose Control Panel.

  • Page 19: Power

    Power User may check the power status of the main battery by clicking on the power icon. In the power properties menu, for the Battery tab, user may check on the option to Always show icon on the taskbar. Another option that user may check on is to Show critical battery Warning, which means a window will be popped out when the device is low battery.

  • Page 20: Display

    Display The resolution for the device is 640x480. User can customize the screen display by changing the picture on the Display Properties. Or user may insert new picture just by transferring it from any personal computer. User may select the Display Properties by holding the pointer on the desktop, and then select Properties or go to Start ->...

  • Page 21: Keyboard

    Keyboard In the Keyboard Menu, you can set two things: repeat delay and repeat rate and an option to check on whether to Enable character repeat or not. Audio Volume When you choose the Volume and Sound properties, on the first page you can set the volume of the speaker and enable sounds for certain warning or applications.

  • Page 22: Stylus Properties

    Stylus Properties In this Stylus Properties, user can recalibrate the sensitivity of the stylus as well as checking on the mouse double-tap setting. Network & Dial – Up Connection When tapping on the Network and Dial-up Connection, a default connection will be created as “USB ActiveSync”.

  • Page 23: Regional Setting

    Regional Setting On the Regional Setting, user can set your local, language, number, current time and date accordingly. Owner Properties On the Owner Properties, user could insert their own personal information and network ID. This depends on user’s preferences.

  • Page 24: Pc Connection

    PC Connection PC Connection is to enable the unit to directly communicate with personal computer or other communication devices. The default is set to USB ActiveSync. However, if there is more than one connection being created on the "Network and Dial-Up Connection", user need to change the connection setting before any of the communication devices can be linked, e.g.

  • Page 25: Storage Properties

    Storage Properties Go to Start -> Settings -> Control Panel -> Storage Manager. In the Storage Properties, user can manage the storage by formatting it, dismounting it or create new partition on it. System Properties In the System Properties, it will show the user the system information, device name and copyrights.

  • Page 26: Password Properties

    Password Properties User can set the Password to maintain privacy or prevent people from reading the HRT700. Screen Rotation This feature allows user to rotate the screen display. It is useful for viewing landscape picture.

  • Page 27: Taskbar & Secure Shell

    Taskbar & Secure Shell Allow user to set the Taskbar and Secure Shell feature. Secure Shell enables user to control accessibility of Control Panel. The default password is “123456”. Bluetooth Device Properties Allow user to scan and pair with connecting Bluetooth devices. The HRT700 Bluetooth feature must be turn on for it to scan.

  • Page 28: Input Selection Panel

    Input Selection Panel Allow user to change current Input Panel state: Large KB. Single tap on the SIP at the taskbar will activate the input panel selection. Date & Time Properties Allow user to configure the date, time and time zone. It also comes with the daylight saving features.

  • Page 29: Internet Options

    Internet Options Allow user to configure the network connection setting and the default homepage. Remove Programs Allow user to remove installed programs systematically.

  • Page 30: Internet Explorer

    Internet Explorer Internet Explorer makes it easier to get the most from the World Wide Web, whether you are searching for new information or browsing through your favorite Web sites. In the control panel menu, under the internet option, user may customize the appearance of the browser when the program is launched.
  • Page 31 User could also go to a webpage, by typing the internet address – for example, www.PRADOTEC-GLOBAL.com.my in the address bar and then click the Go button. The Back and Forward buttons will enable user to return to the previous page or view the next page.

  • Page 32: Features

    Features Getting Connected All the features and peripherals of HRT300 can be accessed and enabled by getting into the Power Control screen. The following pathway would lead the user to the Power Control screen. Start -> Settings -> Control Panel -> Power Control Wireless LAN (Wi-Fi) Usage HRT700 has built in wireless LAN which enable user to access Internet by accessing available wireless provided at public areas, company or home.
  • Page 33 The network icon will popped up on the shell taskbar. Double tap on the icon to configure the WiFi network properties. On the Wireless Information tab, check on the Notify me when new wireless networks are available. Select the preferable network, press Connect and a Wireless Network Properties window will be popped out.

  • Page 34: Bluetooth Usage

    Bluetooth Usage Bluetooth Manager allows user to scan, pair and link with other Bluetooth devices. The Bluetooth feature of the device must be turned ON in order to do the scanning. For the steps on turning ON the Bluetooth feature, please refer to the manual below. To access Bluetooth function, go to Start ->...
  • Page 35 User may scan and pair with other Bluetooth devices such as mobile phones, PCs, laptops and etc. In order to connect to another device, user needs to scan for the device first. Make sure the other Bluetooth device which wish to be connected is in the coverage. 1) Go to Start ->...
  • Page 36 The device does not make any connection to any device 5) Make sure the device that wishes to be connected is at the coverage area. Press Scan to start scanning. 6) Press STOP if does not wish to continue scanning. Or else, wait until the scanning process to complete.
  • Page 37 7) Select the device that wish to be connected. Press Connect 8) A Print UI window will be popped up if the channel is not stated. Insert channel between 1 to 30, less than 1 or more than 30 are bad channels. Then press OK. Channel between 1 to 30 9) An Authentication Request window will be popped up.
  • Page 38 10) Click once on the Bluetooth Manager icon, if wish to check on the connection. Unavailable means that there is a device connected to this device by Virtual COM This is the address and channel of the device that is connected to the device 11) Click once on the Bluetooth Manager icon, to reopen the dialog.
  • Page 39 12) Please make sure that the Bluetooth Manager icon remained at the taskbar. If the icon disappeared, launch the program again. There are few scenarios that the taskbar icon may disappear: Exit button is pressed. This will cause the entire application to close ...

  • Page 40: Gsm Usage

    GSM Usage To access GSM function, go to Start -> Settings -> Control Panel -> Power Control press once on the GSM icon to activate it. Icon is Green – ON Icon is Red – OFF The GSM status will be displayed on the GSM icon at the top right of the device. First, in order to know the service and coverage of GSM, go to Start ->...
  • Page 41 HRTSeries While the GSM module is configuring, this icon, - GSM OFF will appear on the taskbar or while the SIM card is inserted but GSM module is not turned ON. After the GSM module is configured, two new icons will be appearing on the taskbar. Both of the icons show the status of the GSM module of the HRT700.

  • Page 42: Using The Contact Card Reader

    Using the Contact Card Reader There are 4 slots that are available. For smart card, user may insert the smart card into slot 1 which is located at the top most of the device. Slot 0, 2 and 3 is specifically designed for SAM. These 3 slots are located at the back of the device, behind the battery.

  • Page 43: Using The Printer

    Using the Printer 1. Push down the Printer knob to open the printer cover 2. Unlock the printer cover and rotate the cover towards top side to open it. (A) 3. Place the paper roll into the housing as shown in figure (B) 4.

  • Page 44: Appendix: Troubleshooting Guide

    Appendix: Troubleshooting Guide Reset the HRT700 and clear memory To Reset the HRT700 If your HRT700 responds slowly, stops responding as expected, or “freezes”, try resetting it. A reset causes the HRT700 to restart and re-adjust its memory allocation. Any unsaved data in the open windows may be lost. ●...

  • Page 45: I Fhrt700 Runs Out Of Power

    If HRT700 runs out of Power Low Battery Power When batteries are running low, you will see a low battery icon in the navigation bar. Replace or recharge the batteries as soon as possible. Running on low battery power will affect the device’s peripheral performance.

  • Page 46: I Fhrt700 Runs Out Of Memory

    If HRT700 runs out of Memory Memory on your HRT700 is shared between storage memory and program memory. Storage memory is used to store the information you created and programs you installed. Program memory is used to run programs in your HRT700. The HRT700 automatically manages the allocation between storage and program memories.

  • Page 47: Inaccurate Response To Stylus Taps

    Screen is Dark Prolonged exposure to direct sunlight may cause your HRT700 screen to be temporarily dim. This is a normal case for LCD screens and it is not permanent. Inaccurate Response to Stylus Taps Adjust the touch screen to respond more accurately to screen taps. Tap and then Settings.

  • Page 48: Routine Maintenance

    The HRT700 should not be disposed along with the general household waste. In order to forward them for recycling or dispose them properly, please use the public collection system or return them to Pradotec or the authorized partners...

  • Page 49: Travel Guidelines

    Travel Guidelines For safety and convenience when traveling with your HRT700, follow these guidelines: ● Back up your data before you leave. ● Take a backup copy of your data with you. ● Disconnect all external equipment from your HRT700. ●...
  • Page 50 FCC STATEMENT : This device (FCC ID:SX3-HRT700)complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
