Corecess 3312 User Manaul
  1. Manuals
  2. Brands
  3. Corecess Manuals
  4. Modem
  5. 3312
  6. User manaul

Corecess 3312 User Manaul

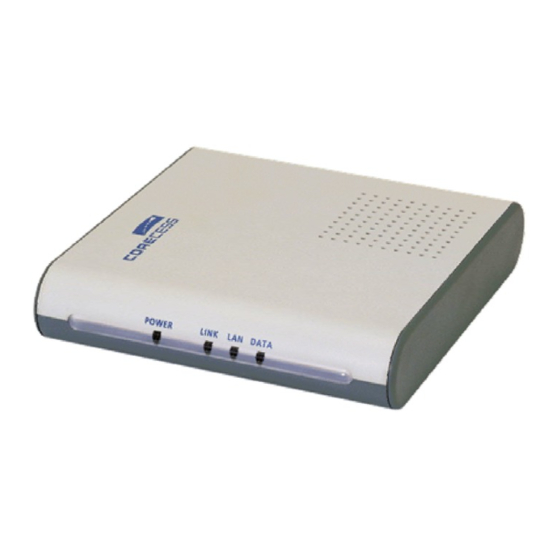

Single-pair high-speed digital subscriber line (shdsl) modem
Hide thumbs

Advertisement

Quick Links

Download this manual
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful i n terference i n a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment.
F C C N O T I C E

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3312 and is the answer not in the manual?

Questions and answers

Related Manuals for Corecess 3312

Summary of Contents for Corecess 3312

  • Page 1 F C C N O T I C E THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.
  • Page 2 Copyright | Copyrightⓒ Corecess All rights Reserved. No Part of this book shall be reproduced, stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording , or otherwise, without written permission from the publisher. The specifications and information regarding the products in this manual are subject to changed without notice.

  • Page 3: Table Of Contents

    Table of Contents Introduction · · · · · · · · · · · · Unpacking the Box · · · · · · · Installing the Corecess 3312 · · Configuring the TCP/IP · · · · · Troubleshooting ·...

  • Page 4: Introduction

    Power Cord Installation Guide SHDSL Cable (4-wire Telephone Line) Ethernet Cable (Straight-through Category-3) Note: The PC with Ethernet port or adapter is neccssary to install the Corecess 3311. Before installing the Corecess 3311, prepare a PC with Ethernet port or adapter.

  • Page 5: Installing The Corecess 3312

    Power on your PC. Caution: You should power on the Corecess 3311 before powering on your PC. If you power on your PC first, PC’s IP address may not be properly assigned. In this case, assign new IP address referring to...
  • Page 6 LED Operation When you have powered up the Corecess 3312, check the status of the four LEDs on the front panel by the following table: Color Status Description DC power is being supplied to the Corecess 3312. POWER The modem is connecting to SHDSL network.

  • Page 7: Configuring The Tcp/Ip

    Configuring the TCP/IP After you install the Corecess 3312, next is to configure the TCP/IP network protocol. Caution: When you configure the TCP/IP, leave the default value of any other configuration that is not mentioned in the following description. Windows 95/98/ME Settings Ú...
  • Page 8 6. Select the tab and check [Gateway] there is no gateway installed. If there are installed gateways, delete them by clicking [Remove]. Click Figure 5 Figure 5 7. At the <Network> dialog box, click OK. The system prompts you to restart. Click Yes.
  • Page 9 Windows 2000/NT 1. Click the button and select Start Ú Settings Network Dial-up Connections. ( Figure 1 Figure 1 2. Right-click the Local Area Connection icon at the <Network and Dial-up Connections> windows and select menu. ( Properties Figure 2 Figure 2 3.
  • Page 10 5. The <Advanced TCP/IP Settings> dialog box appears . At the tab, check that the is set to [IP Settings] IP Address Enable DHCP. Figure 5 6. Select the tab and check that the [DNS] Append primary and is selected. Click OK. ( connection specific DNS suffix Figure 6 Figure 6...
  • Page 11 Windows XP 1. Click the button and select Start Settings menu. ( Figure 1 2. Double -click the icon at the Network <Control Panel> window. Figure 1 3. Right-click the icon Local Area Connection at the <Network Connections> windows and select menu.
  • Page 12 6. The <Advanced TCP/IP Settings> dialog box appears . At the tab, check that the is set to [IP Settings] IP Address Enable DHCP. Figure 5 7. Select the tab and check that the [DNS] Append primary and is selected. Click OK. ( connection specific DNS suffix Figure 6 Figure 5...

  • Page 13: Troubleshooting

    Corecess 3312. If the LINK LED still blinks, contact your SHDSL service provider. If the LINK LED goes off, turn off the power o f the Corecess 3312 by pressing the power switch and turn on the power again. If LINK LED still goes off, contact your vendor.
  • Page 14 Otherwise assign a new IP address according to your operating system. Windows 95/98/ME Œ Click the Ž Select button and Ethernet adapter Start select Run. connected with Corecess 3311 and click Release All. • Click Renew All. • Input and press Winipcfg key. [Enter]...
  • Page 15 Windows 2000/NT/XP Œ Click the button and Start select Run. • Input and press the key. [Enter]...
  • Page 16 /release press key. [Enter] • Input ipconfig /renew press key. [Enter] Restart your PC If new IP address is not assigned properly or you cannot solve the problem, ensure that the Corecess 3312 turns on and then restart your PC.

  • Page 17: Technical Specifications

    Technical Specifications Description Specification SHDSL Standard Ÿ ITU-T G.991.2 Standard Standard IEEE Standard Ÿ IEEE 802.3 10Base-T Ethernet Ÿ 10Base-T (IEEE 802.3) Ÿ Connector: RJ-45 SHDSL Line Interface Ÿ ITU-T G.991.2 (G.SHDSL) Ÿ Line Code: TC-PAM Ÿ Up/Downstream: Up to 2.3Mbps Ÿ...
