- Page 1 Tork EasyCube User Manual www.torkglobal.com...
- Page 2 1 Introduction - Tork EasyCube Tork EasyCube™ is an Internet of Things (IoT) solution for data driven cleaning management. Tork dispensers and bins are equipped with sensors that communicate their status to a cloud based system. Also, the system includes visitor registration units that count people passing into a washroom area or a cubicle.
- Page 3 Figure 1. Each dispenser is wirelessly connected to an information system that can be utilized by both a Facility Manager as well as cleaning staff, in order to...
- Page 4 2.1 Before you get started To be able to get started with Tork EasyCube there are some activities that need to be performed. Initially the customer together with Essity will determine which rooms will be included and the required number of gateways (see chapter 3.6 for further explanation) to support these locations.

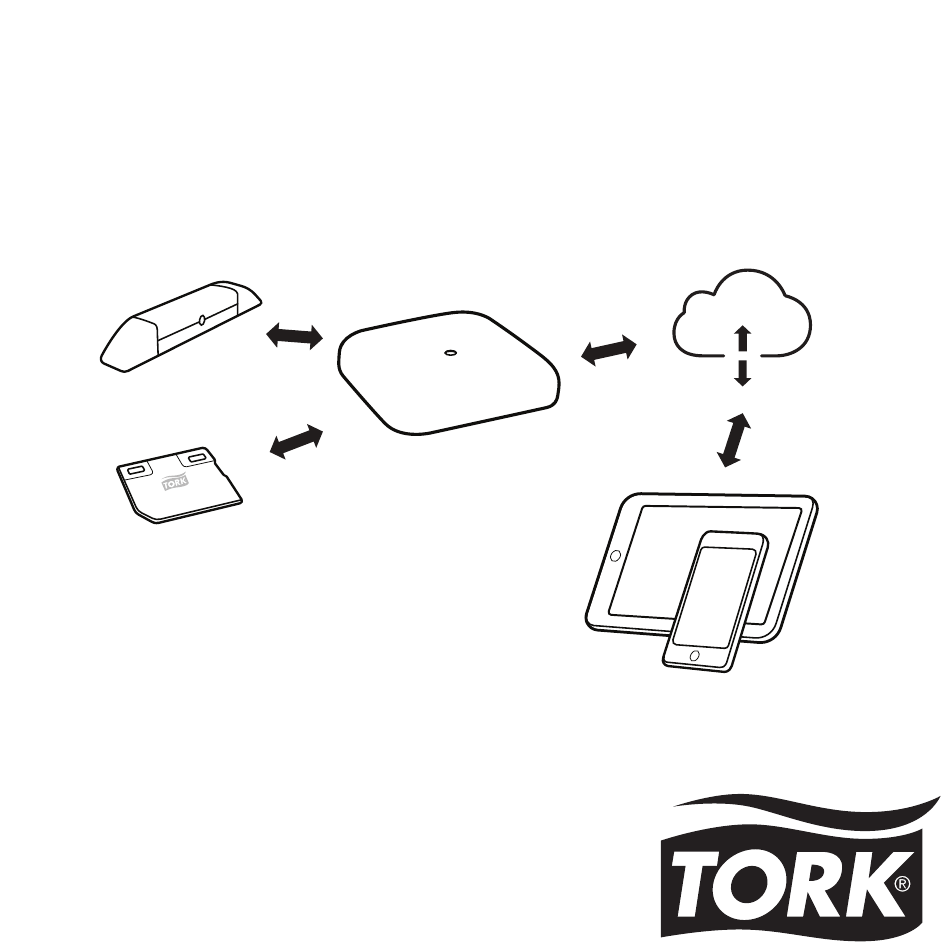

- Page 5 Figure 3. The different components for Tork EasyCube in status occurs, the gateway forwards the information to the Tork EasyCube. It is in the application server in the cloud where all data is processed and aggregated to useful information. The customer is provided access to the Tork EasyCube web application for management and analysis of collected information.
- Page 6 3.1 Sensors There are a couple of different sensors that generates data points for Tork EasyCube. The data from sensors are interpreted into useful and actionable insights for users. in Tork dispensers • Bin sensors measure the level of waste in Tork bins •...
-
Page 7: Level Sensor
Tork Image Design Xpress Hand Towel Dispenser 463002 Tork Xpress Medium/Large Recessed Cabinet Towel Adapter 309695 309696 Tork Image Design Mini Jumbo Bath Tissue Roll Dispenser 465500 Tork Elevation Matic Hand Towel Roll Dispenser 5510282 5510202 Tork Elevation Matic Hand Towel Roll Dispenser –... - Page 8 3.1.1.1 Battery information for the Level Sensor Each Level Sensor is operated by an Essity approved battery, CR2450. The bracket where the sensor is placed looks different for different dispensers, the illustration shows one example. The battery change procedure is the same for all the dispensers. To change battery: Caution: Risk of explosion if the battery is replaced by an incorrect...
- Page 9 Remove the battery Replace with a new Essity approved battery Close the cover again Put the sensor into the bracket in the dispenser again. Recycle used batteries according to regulations.
- Page 10 3.1.2 Tork EasyCube Sensor Communication Unit The sensor communication unit is added to a special slot in the the Tork EasyCube by colors. • Green: indicates that the dispenser still have enough paper remaining. the dispenser. • Red: indicates that the dispenser is almost Figure 5.
- Page 11 Article number Tork Image Design Matic Hand Towel Roll Dispenser 461002 Tork Image Design Matic Hand Towel Roll Dispenser, Recessed 461022 Tork Image Design Matic Hand Towel Roll Dispenser, in-Wall Recessed 461023 Tork Elevation PeakServe Hand Towel Dispenser 552520 552528...
- Page 12 3.1.3 Dispensers with embedded sensors Tork dispensers such as Tork Foam Soap Dispenser with Intuition sensor™ do not need an additional sensor. Instead, there is an additional radio component in the cassette which forwards information to the gateway via 2.4 GHz radio.
- Page 13 3.1.4 Tork EasyCube Visitor Registration Unit The Visitor Registration Unit counts the number of people going in and out of a room. The number of visitors can be used as a guideline for when washrooms need to be cleaned. end pieces and rotate the center unit 90° to change direction. Place one sender and one receiver at the door frame to the entry of the room.
- Page 14 3.2 Tork EasyCube Gateway The Gateway collects the data from the sensors and sends information to the Tork EasyCube system. The gateway acts as a communication hub for all the sensors that have been paired with it. The unit collects and processes incoming sensor data.
- Page 16 Battery 3.6V, 2.1Ah, 2/3A Registration Unit Dimensions 158 x 23 x 23mm / 6.2 x 0.9 x 0.9 inches Sensors Infrared (IR) Tork Foam Soap Dispenser with Battery 4pcs of R14 Intuition sensor , S4 Dimensions 278 x 113 x 130mm/10.9 x 4.5 x 5.12 inches...
- Page 17 • Do not expose the battery for high temperatures, disassemble it, damage it mechanically or put the • Only use the SIM card provided by Essity. • If any of the contents of the Tork EasyCube appear to be damaged or broken, contact Essity Customer Service at 1 866 722 8675, for North America.
- Page 18 Tork EasyCube must be returned to Essity after the end of its service life. Computer, server device or smartphone etc are not included. The Tork EasyCube web application can be accessed from modern web browsers. Devices shown are not actual size.
- Page 19 FCC: by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this de- vice must accept any interference received, including interference that may cause undesired operation.
- Page 20 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Industry Canada ICES-003 Compliance Label: CAN ICES-3 (A)/NMB-3(A) Le présent appareil est conforme aux CNR d’Industrie Canada...
- Page 21 The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods. The RoHS Directive set restrictions upon European manufacturers as to the material content of new electronic equipment placed on the market. The Battery directive regulates the manufacture and disposal of batteries in the European Union with the aim of improving the environmental performance of batteries and accumulators.
- Page 24 Version G Manufactured by Essity Hygiene and Health AB SE-405 03 Göteborg, Sweden Visiting address: Mölndals Bro 2, Mölndal www.essity.com, www.torkglobal.com Distributed by Essity Professional Hygiene North America LLC 2929 Arch Street, Suite 2600 Philadelphia, Pennsylvania 19104 www.torkusa.com Sensors, Gateway and Visitor Registration unit are made in Sweden Foam soap dispenser (stainless) is made in Poland Foam soap dispenser (plastic) is made in China...
