PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd
PC701 User Manual

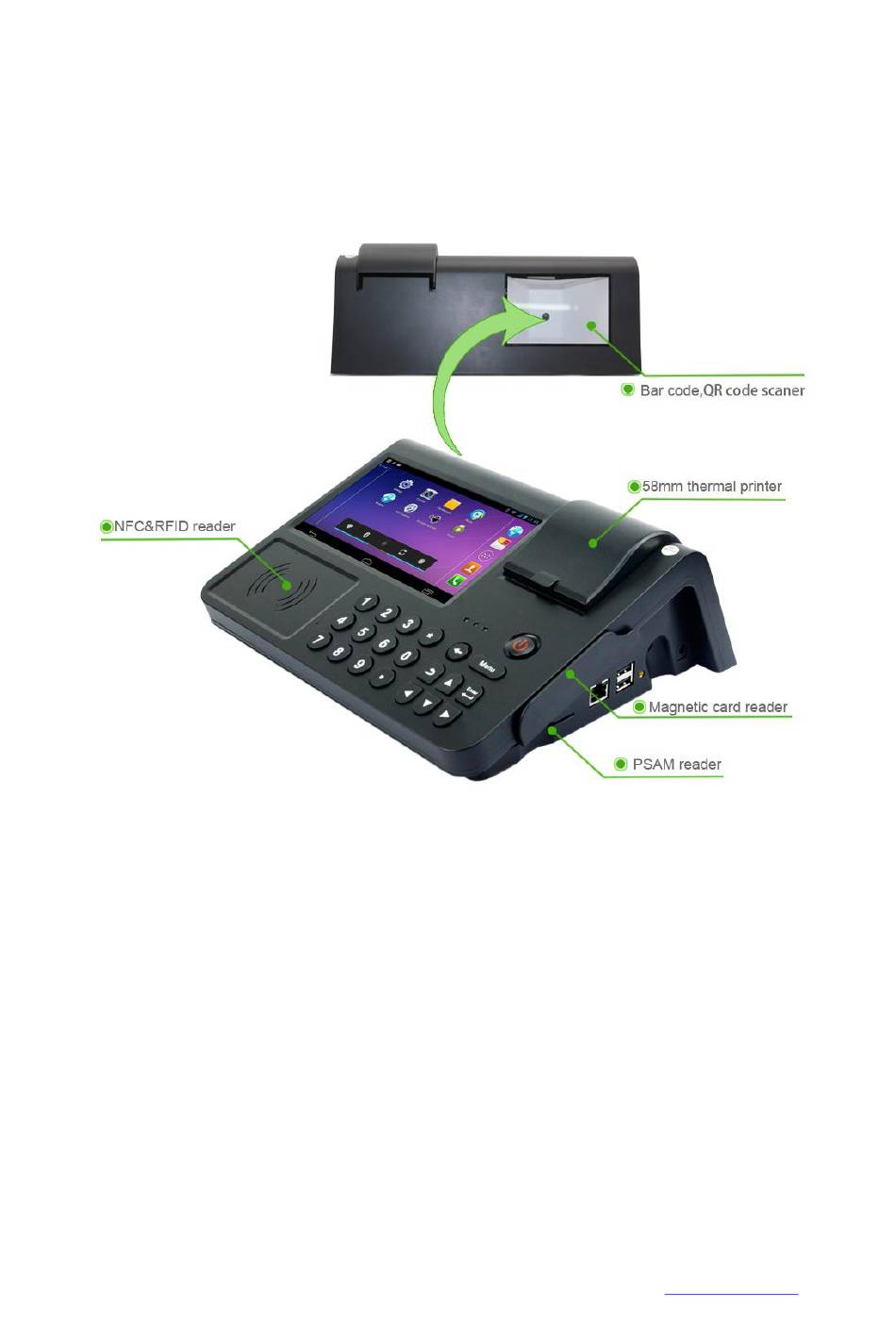

1. Product brief introduction
Web: www.sznewbest.com
Tel: 0755-6173277
Skype:zkc-lina
Email:
lina@sznewbest.com
Address: 1st Floor, No. 1 Block, Zhongkenuo Industry Park, Beiqi Road, Xixiang Town, Bao'an District, Shenzhen
Advertisement
Summary of Contents for ZKC PC701
- Page 1 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd PC701 User Manual 1. Product brief introduction Web: www.sznewbest.com Tel: 0755-6173277 Skype:zkc-lina Email: lina@sznewbest.com Address: 1st Floor, No. 1 Block, Zhongkenuo Industry Park, Beiqi Road, Xixiang Town, Bao'an District, Shenzhen...
-
Page 2: Power On/Off
PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 2. Power on/off Power on: Connect the built-in battery or external power, and Long press the power key. Power off：Long press power key and click “power off” Web: www.sznewbest.com Tel: 0755-6173277 Skype:zkc-lina Email: lina@sznewbest.com Address: 1st Floor, No. 1 Block, Zhongkenuo Industry Park, Beiqi Road, Xixiang Town, Bao'an District, Shenzhen... -
Page 3: Functions Description
PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 3. Functions Description 3.1 Thermal printer , click “printer test” Open the testing demo To print words, click “print”, to print barcode, Qrcode, images, please click “print picture” 3.2 Barcode, Qrcode scanner Web: www.sznewbest.com Tel: 0755-6173277... - Page 4 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd , and click “Qrcode”, put the barcode or Qrcode in front of the Open the demo camera window to scan. Note: Or download a barcode scanner APP from google play store to test. 3.3 Camera test Click the “camera test”...
- Page 5 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 3.4 RS232 test Click the “Serial port” in the ，connect with device via RS232 cable, click “setting”, select serial number “ttyUSB1” and save, then click “Open”, to test the serial port. 3.5 NFC test Open the test demo “NFC scanner”, or download NFC APP from google play store to test.
- Page 6 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 3.6 PSAM Test ， insert into the PSAM card, select “card 1, card 2, card 3”, and click Click “Init”,“Get Random” or“select Master”, then it shows the data as below, take card 3 as an example: 3.7 MSR test...
- Page 7 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 3.8 GPS Test Pull-down the screen, Open “GPS”, position outdoor, as below: Web: www.sznewbest.com Tel: 0755-6173277 Skype:zkc-lina Email: lina@sznewbest.com Address: 1st Floor, No. 1 Block, Zhongkenuo Industry Park, Beiqi Road, Xixiang Town, Bao'an District, Shenzhen...
- Page 8 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 4. 3G Test Insert into the 3G card as below and power on, click “SIM management”and select “data connection” as “SIM 1” to open the 3G data transmission. Web: www.sznewbest.com Tel: 0755-6173277 Skype:zkc-lina Email: lina@sznewbest.com...
- Page 9 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd USB connection Connect the device with computer via USB cable, install USB driver, select “Turn on USB”, then click “setting”-- “developer options”---- “USB debugging” Note: Please connect the USB cable twice before USB connection. Web: www.sznewbest.com...
- Page 10 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd Other use instructions are same as Android mobile phone. 6.FAQs 1. Green light flashes Green light flashes means lower power warn, please charge the power, if still flashes, please connect the battery. 2. The device can not connect with computer via USB cable...
- Page 11 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd 4. Print messy code 1) Do not keep printing while print barcode, Qrcode, images 5. 3G can not work 1) Please check whether program IMEI number or not 2) Turn off WIFI and Ethernet before 3G data connection 6.
- Page 12 PC701------------------------------Shenzhen ZKC Software Technology Co.,Ltd This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
