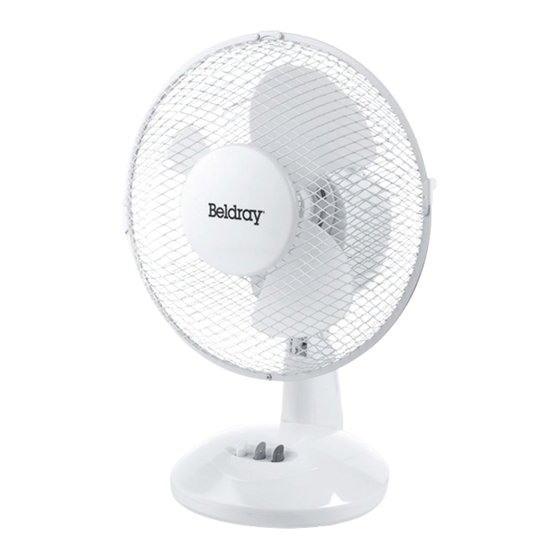

- Page 1 9 INCH DESK FAN INSTRUCTION MANUAL www.beldray.com...
- Page 2 Please read all of the instructions carefully and retain for future reference. Safety Instructions When using electrical products, basic safety precautions should always be followed. Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the product to the mains power supply.
- Page 3 Do not remove the product from the mains power supply by pulling the cord; switch it off and remove the plug by hand. Do not use the product for anything other than its intended use. Do not use this product outdoors. Do not move the product whilst it is in use.
- Page 4 Getting Started Remove the product from the box. Remove any packaging from the product. Place the packaging inside the box and either store or dispose of safely. In the Box 9 Inch Desk Fan Front grill Rear grill Rear grill locking nut Grill screw with nut Fan blade unit Motor assembly...
- Page 5 Description of Parts 1. 9 Inch Desk Fan main unit 7. Front grill 2. Fan blade unit 8. Tilting head with locking mechanism 3. Logo plate 9. Motor assembly shaft 4. Oscillation switch 10. Grill screw with nut 5. Motor assembly 11.
- Page 6 Assembling the 9 Inch Desk Fan Assembling the Desk Fan STEP 1: Remove the plastic rear grill locking nut by twisting it in an anticlockwise direction. STEP 2: Place the rear grill over the motor assembly pin so that it is aligned with the four plastic pins.
- Page 7 Specifications Product Code: EH2658SSTK Voltage: 220–240 V ~ 50 Hz Output: 25 W...
- Page 8 Notes...
- Page 9 Connection to the mains Please check that the voltage indicated on the product corresponds with your supply voltage. Important As the colours in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, please proceed as follows: The wires in the mains lead are coloured in accordance with the following code: Blue Neutral (N)
- Page 10 Where reasonable proof of purchase can be provided, Beldray will provide a standard 12 month guarantee with the retailer from the date of purchase. This is only applicable when products have been used as instructed for their intended, domestic use.
- Page 11 * To be eligible for the extended guarantee, go to www.beldray.com and register your product within 30 days of purchase.
- Page 12 To be eligible for the extended 5 year guarantee, go to http://guarantee.upgs.com/beldray and register your product. The Beldray brand stands for reliability, trust and consumer loyalty. Our fantastic range of products includes everything that you need to keep your home cosy and warm.
