KEC 29GG400 Instruction Manual

Digital ready tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

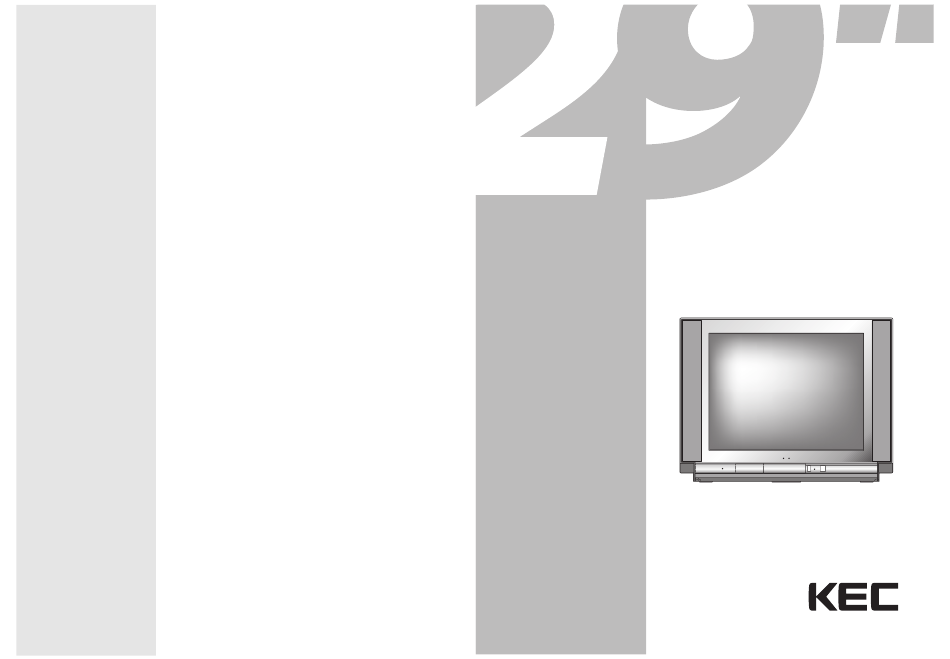

DIGITAL READY TV
INSTRUCTION MANUAL
MODEL: 29GG400
WWW.KEC.CO.KR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 29GG400 and is the answer not in the manual?

Questions and answers

Summary of Contents for KEC 29GG400

  • Page 1 DIGITAL READY TV INSTRUCTION MANUAL MODEL: 29GG400 WWW.KEC.CO.KR...

  • Page 2: Table Of Contents

    EXCELLENT PICTURE AND SOUND QUALITY, MULTIPLE FUNCTION TABLE OF CONTENTS READY TELEVISION FOR DIGITAL BROADCASTING FEATURES BEFORE USING THIS PRODUCT EXCELLENT PICTURE QUALITY FEATURES PRECAUTIONS LOCATION OF CONTROLS 9~10 640 480 Resolution ! USE OF THE REMOTE CONTROLLER 11~12 Flickerless picture and NTSC image conversion to progressive scan! ANTENNA CONNECTION 13~14 POWER SUPPLY...
  • Page 3 MISCELLANEOUS FUNCTIONS MISCELLANEOUS FUNCTIONS Closed Caption Decoder : A Built-In Closed Caption Decoder(CCD) detects broadcasts Watch main and sub picture simultaneously! DOUBLE WINDOW with encoded closed caption signals and displays their content on the screen. Built-In V-Chip(Violence Chip) : This "Blocking V-Chip" Allows adults to block television PERSONAL It can display a 640 480 VGA PC signal!
  • Page 4 PRECAUTIONS PRECAUTIONS Select an area where sunlight or bright indoor illumination Don’t use a volatile solvents like benzene in cleaning. will not fall directly on the picture screen. Clean TV with a piece of dry cloth. Separate TV set from magnetic materials like speaker, tele- phone.

  • Page 5: Precautions 6~8

    PRECAUTIONS LOCATION OF CONTROLS GRAPHICAL SYMBOLS EXPLANATION FRONT PANEL VIEW(LIST OF KEY SWITCHES, CONNECTORS) CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
  • Page 6 LOCATION OF CONTROLS THE USE OF THE REMOTE CONTROLLER REAR PANEL VIEW Point to the remote controller sensor of the TV set. The maximum operatable distance is approximately 20 feet from the remote controller sensor, and not more than 30 to either side of the center. The operation of the remote controller is most effective when there's no obstruction between it and the remote controller sensor.

  • Page 7: Antenna Connection

    THE FUNCTIONS OF THE REMOTE CONTROLLER ANTENNA CONNECTION OUTDOOR ANTENNA CONNECTION 1. P.C Mode Selection Button 2. Video Mode Selection Button Use one of the following two diagrams if you connect an outdoor antenna. (VIDEO1 VIDEO2 VIDEO3 YUV RGB TV) A.

  • Page 8: Antenna Connection 13~14

    ANTENNA CONNECTION POWER SUPPLY CABLE TV(CATV) CONNECTION In case that the power cord is 110V AC, Insert the AC cord plug into a standard 110V polarized AC outlet. Some cable TV companies offer premium pay channels. In case that the type of power cord is like as shown below, Since the signals of these premium pay channels are scrambled, a cable TV converter / insert the AC cord plug into the AC outlet.

  • Page 9: Video / Audio Connection 16~18

    VIDEO /AUDIO CONNECTION VIDEO /AUDIO CONNECTION Please use the front terminals(VIDEO 3) for a GAME-PLAYER or CAMCODER. S-VHS Input has priority over VIDEO 3 input. RGB IN Push the video button in sequence until VIDEO 3 appears on the picture. Listen to the sound of main picture or sub picture with headphone or earphone.

  • Page 10: Starting Operation

    VIDEO /AUDIO CONNECTION STARTING OPERATION 4. S-VHS IN : At either video 2 or video 3 mode, insert S-VHS cable from set-top box or 1. Push the power button on the front panel or on the remote controller. VCR into S-VHS terminal. If power plug is inserted into an AC outlet, the stand-by indicator will be red.

  • Page 11: Picture Adjustment 20~21

    PICTURE ADJUSTMENT PICTURE ADJUSTMENT AUTOMATIC PICTURE ADJUSTMENT MANUAL PICTURE ADJUSTMENT By pressing the P.STD button on the remote controller, sequentially select any one of 4 Adjust the picture state one by one, using picture standard pre-sets. VOL + and CH button.

  • Page 12: Sound Adjustment 22~25

    SOUND ADJUSTMENT SOUND ADJUSTMENT AUTOMATIC SOUND ADJUSTMENT MANUAL SOUND ADJUSTMENT By pressing the S.STD button on the remote controller, sequentially select any one of 4 Adjust the sound state one by one, using SOUND standard pre-sets. VOL + and CH button.
  • Page 13 SOUND ADJUSTMENT SOUND ADJUSTMENT HEADPHONE STEREO SOUND SYSTEM When the power is switched on or channel changes, “ [[S]], ]” symbols are automati- Adjust the volume of sound by VOL + and cally displayed, depending on the current broadcast signal. button.
  • Page 14 CLOCK SETTING CLOCK SETTING The On/Off timer lets you use alarm and automatic off-functions . Set the time and minutes and use as a clock and timer! Set ON TIMER’S time and minutes, using Set the current time before you set the automatic On/Off timer. VOL+ and CH button.
  • Page 15 CLOCK SETTING SET UP ANTENNA SELECTION When the power is off(stand-by mode) after timer is set, the color of stand-by indicator changes from green to orange. CATV If on timer and off timer is set at the same time and minutes, ON TIMER has priority In this mode, you can change the broadcast mode between TV (For regular VHF/UHF over off timer when power is off channel) and CATV (For cable channel).
