Summary of Contents for Rosonix Technology RSG-3000
-
Page 1: User Manual

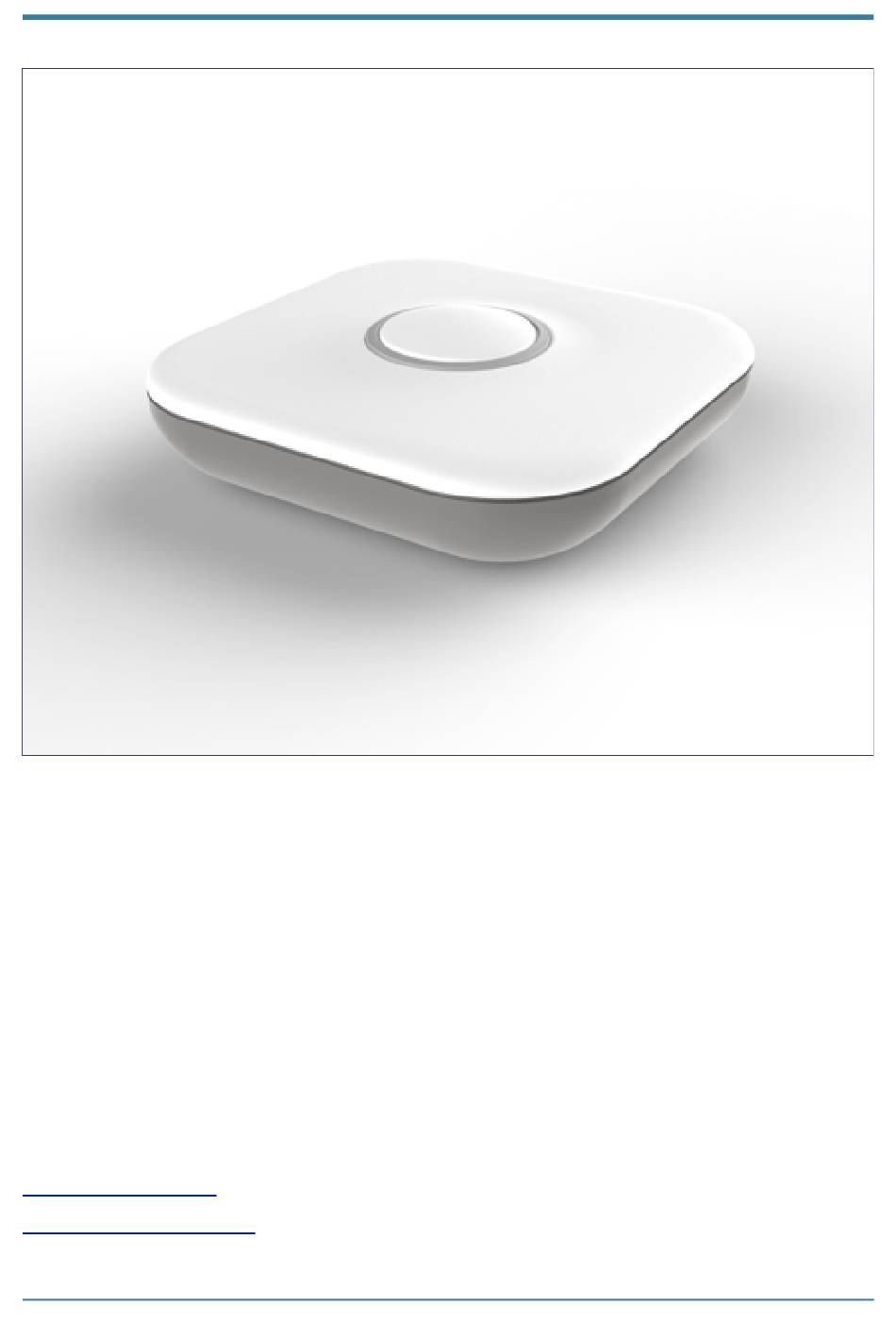

ROSONIX TECHNOLOGY RSG-3000 Wireless Smart Gateway User Manual Date Released: Oct. 20, 2015 Rosonix Technology, Inc. 10F, No.235, Sec. 4, Chengde Rd.,Taipei, Taiwan Tel: +886-2-88612358 sales@rosonix.com http://www.rosonix.com... -
Page 2: Hardware Setup
UNPACK YOUR ROUTER Power adapter RSG-3000 Wireless Smart Gateway Power cable RJ-45 ethernet cable The box contains the following items: • RSG-3000 Wireless Smart Gateway • AC power adapter (plug varies by region) • Power cable • RJ-45 ethernet cable... -
Page 3: Top Panel
MicroSD ZigBee Application Button ColorRing LED The RSG-3000 Wireless Smart Gateway has the status LEDs shown in the above figure. MicroSD Solid: The MicroSD card is mounted and ready for getting access. Off: The MicroSD card is not accessible. WLAN Solid: The wireless LAN is ready. -
Page 4: Rear Panel
REAR PANEL MicroSD Power RJ-45 SD Eject Reset The rear panel has has the connectors and buttons shown in the above figure. -
Page 5: Position Your Router
POSITION YOUR ROUTER The gateway lets you get access of your 2.4Ghz WiFi and ZigBee network from virtually anywhere within the operating range of your wireless network. However, the operating distance of range of your wireless connection can vary significantly depending on the physical placement of your router. For example, the thickness and number of walls the wireless signal passes through can limit the range. -
Page 6: Getting Started
WIRED ETHERNET SETUP The RJ45 port is for wired ethernet connection. RSG-3000 supports either Local Area Network (LAN) or Wide Area Network (WAN) for the RJ45 port. The WAN mode supports following IP configurations. - Page 7 LAN mode setup...
- Page 8 WAN mode with DHCP client setup The IP address of the RJ45 port for WAN access will be obtained from the uplink router which supports DHCP server to lease an IP address to the gateway. ...
- Page 9 WAN mode with PPPoE setup The IP address of the RJ45 port for WAN access will be obtained via PPP over Ethernet (PPPoE) from your Internet Service Provider (ISP). The account and password information for PPPoE authentication should be obtained from your ISP. ...
- Page 10 WAN mode with Static IP address setup The IP address of the RJ45 port for WAN access will be set to static. Please consult your ISP for the IP, Netmask, and Gateway IP address for Internet access.
- Page 11 WIRELESS ETHERNET SETUP The wireless ethernet of RSG-3000 supports both Access Point (AP) and Client mode.
- Page 12 Wireless Ethernet with AP mode setup To setup the AP mode, check the ‘Enable Wifi AP’ checkbox and config the SSID and Auth Key for WiFi client authentication. The default authentication mode is WPA2 with AES encryption.
- Page 13 Wireless Ethernet with WiFi Client mode setup To setup the WiFi client mode, check the ‘Enable Wifi Client’ checkbox and then ‘Scan’ the environment, pick the WiFi AP you would like to connect. Fill the authentication password to get WiFi access for the AP router.
-
Page 14: Regulatory Compliance Information
Regulatory Compliance Information FCC REQUIREMENTS FOR OPERATION This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. The FCC ID for this device is YUDRSG3000. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 15 EUROPE-EU DECLARATION OF CONFORMITY AND RESTRICTIONS Hereby, Rosonix Technology., Inc. declares that the RSG-3000 is in compliance with essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment is marked with the CE symbol and can be used throughout the European community.
-
Page 16: Ncc Warning Statement
NCC WARNING STATEMENT RSG-3000...
