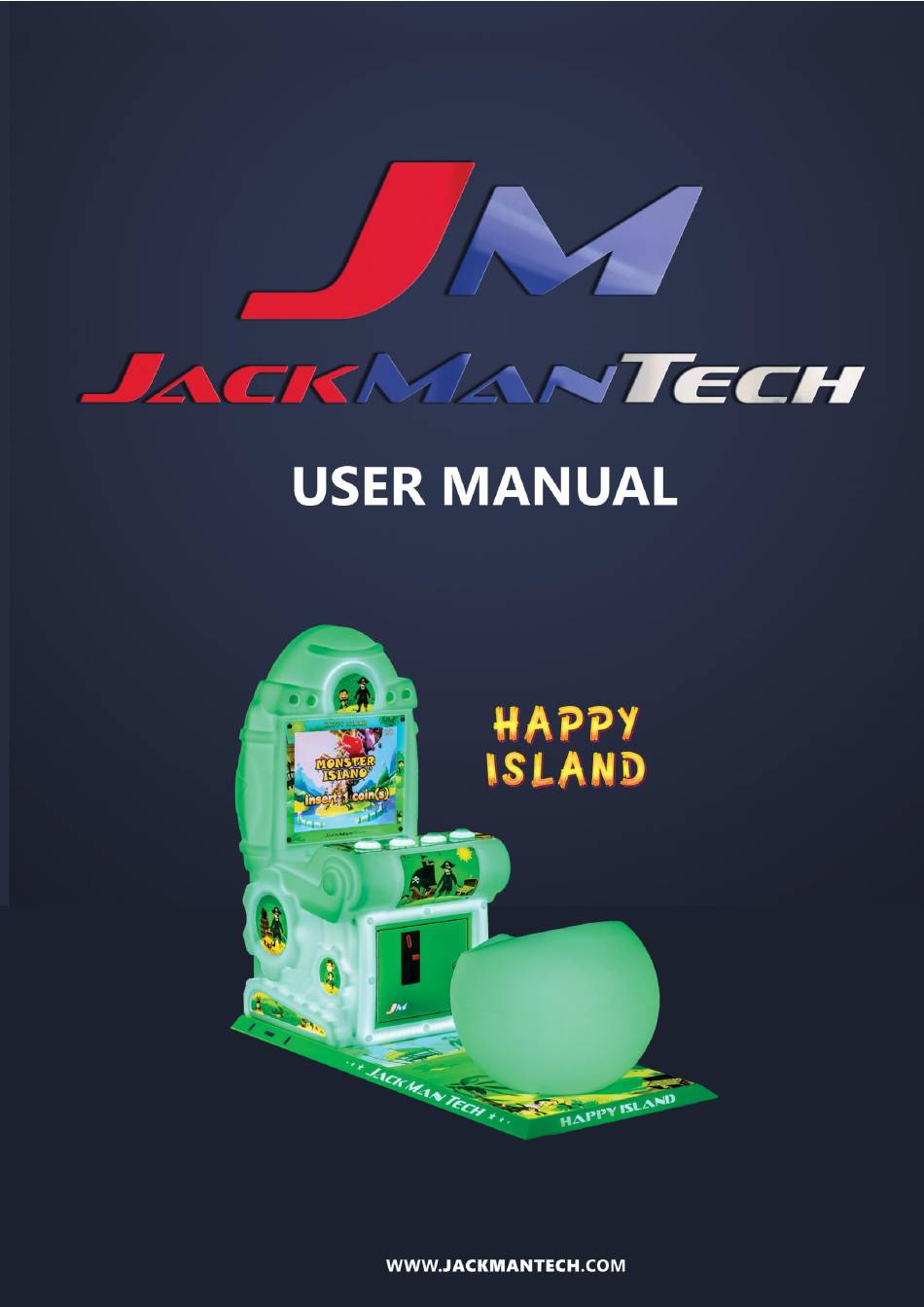

Summary of Contents for JackManTech Happy Island
- Page 2 Thank you for choosing our product! Our machines have been designed in such way, that their use and possible service won't cause problems even for unskilled staff. We have made every effort to ensure that our devices are safe to use. Nevertheless, everyone should familiarize themselves with our short instruction that will allow to safely install and use our machines.
- Page 3 Table of contents. Important Safety Instructions ........................ 3 GAME BOARD SETTING ........................4 CONSOLE SETTING ........................... 6...
- Page 4 Important Safety Instructions WARNING: Failure to follow these safety instructions could result in fire,electric shock, or other injury or damage. • Read and follow these instructions to use your Video Amusement Game safely. • All metal parts are connected together and the machine must be plugged into the socket with earthing AC 230 V 50 Hz.(or 110 V for US version) •...
- Page 5 1. GAME BOARD SETTING To enter settings mode on the game board use the small board inside to navigate: LEFT RIGHT DOWN To enter settings press left & right button at the same time SETTINGS:...
- Page 6 GAME COINS 1 COIN - original settings of the machine is 1 and should remain unchanged (actual coins required to play one game is regulated in JM Operator Box) GAME TIME set here the time of the full game, after coin is inserted by player (recommended and optimal time is 2 minutes) GIFT SCORE 0 - not apply;...
- Page 7 2. CONSOLE SETTING TOP BUTTON – refresh mode, press it once you finished settings BOTTOM LEFT – decrease value / go down BOTTOM CENTRE – go to MENU / confirm BOTTOM RIGHT – increase value / go up...
- Page 8 1. COUNTERS 1.1 COLLECTIONS MACHINE (process of taking out the money from the machine) - the list of the employees entitled to cash collection will appear - choose the name of the employee (to confirm press MENU button)
- Page 9 - choose YES/NO (when choosing YES, data will be send to the application; process takes up to 15 seconds) - amount of money machine has collected since last money collection will be displayed on the screen - press MENU button to come back to main menu 1.2 ACTUAL COINS (actual amount of money in the collector box at the moment;...
- Page 10 1.3 TOTAL COINS (amount of money machine has collected since the beginning of creation) 1.4 TOTAL GAMES (number of games machine has played since the beginning of creation)
- Page 11 2. SETUP MACHINE 2.1 REFRESH DATA (any data that was set up, changed or adjusted will be loaded onto the game from JM Operator/to JM Operator after pressing chosen button; process takes up to 15 seconds)
- Page 12 2.2 VOLUME NO CREDIT (volume of machine when it is not in use) GAME (volume of machine during game played) PRESENTATION (volume of machine during presentation – after setting up the time, every couple of minutes machine turns on and plays short sequence that invites people to use the machine)
- Page 13 2.3 TIME PRESENTATION (change time; period of time in minutes machine will turn on every x minutes and play a short sequence that invites people to use the machine) GAME LED (change time; period of time after machine received money for LED lights to return to its original state –...
- Page 14 COIN 1 (process of changing the coin acceptor) Each of the channels has been programmed for different coin. Channel 1 (EDIT) – how many coins (and of which kind) has to be inserted to play 1 game; there are 7 channels for possible set-up BILL/BANK 1 (process of changing the bill acceptor –...
- Page 15 2.5 TICKET/GIFT GAME BOARD OFF/ON (after pressing ON settings from the game board will apply to the device) MANUAL OPTION: 1 game - .. tickets (choose the number of tickets the player will receive after 1 game played) 2.6 PASSWORD (NOT APPLY)
- Page 16 3. TEST MACHINE 3.1 TEST COIN AND BILL ACCEPTOR After inserting a coin, machine reads the coin and displays the value of it on the screen (PLEASE NOTE that the coin put inside during the TEST is not changing “TOTAL COINS” and “ACTUAL COINS”...
- Page 17 3.2 TEST GAME After choosing this option, 1 credit will be added automatically and the game will be played. Choose this option for checking the functionality of the game, buttons and all the parts involved (PLEASE NOTE that this credit will not be accountable to “TOTAL GAMES” value) 3.3 TEST TICKET (not apply to the machines without the price box)
- Page 18 3.4 TEST LED After choosing this option, each and every LED light will be turned ON and checked for proper functionality in 3 colors 3.5 INFO OWNER (displays information about the owner of the machine)
- Page 19 JM MASTER (displays serial number and software version of the master) JM CONSOLE (displays serial number and software version of the console)
- Page 20 JM ID1 JM ID2...
- Page 21 SET MACHINE (displays serial number, name and color of the machine) BATTERY CONSOLE (displays voltage, condition and charging level of the battery in volts)
