YDI MAX RANGER Quick Start Manual

Introduction
The Max Ranger is an antenna with an integrated bi-
directional amplifier used to extend the indoor range of
802.11b Wireless LAN cards. The Max Ranger is
designed to be used with YDI/Agere PCMCIA WLAN
cards that can be inserted into any
as an Access Point, YDI Ethernet Converter (EC), or
even a laptop computer. It is easy to install and ready
to work "right out of the box". The internal antenna is
horizontally polarized for optimum RF connection to
other WLAN cards which typically are also horizontally
polarized. It features over 300 mW (+25 dBm) of
transmit power (EIRP). It is FCC Part 15 Certified for
license-free operation with our Sidekick and Sapphire
WLAN cards, and is capable to work in a temperature
range of 0°C to +50°C.
Max Ranger Kit Contents
1. Antenna with integrated bi-directional amplifier and
RF cable terminated in antenna connector for the
YDI/Agere WLAN card
2. YDI Sidekick Wireless LAN card
3. 110/220 VAC to 5 VDC wall mount power supply

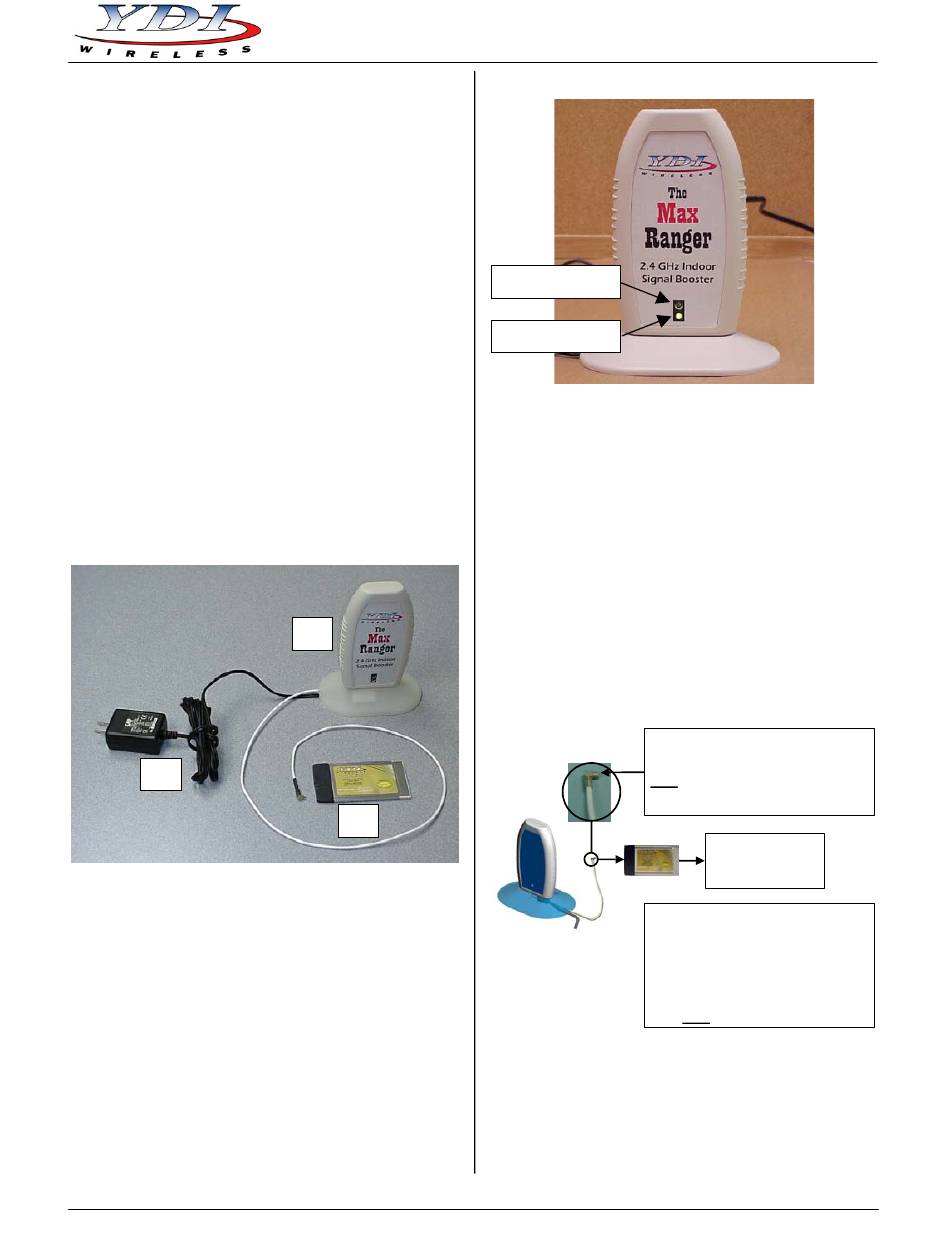

Figure 1 – Max Ranger Kit
3
LEDs
Two LEDs are present on the front of the Max Ranger
(see Figure 2):
•
The Red LED flashes when the Max Ranger
transmits data
•
The Green LED indicates that the Max Ranger is in
receive mode
MNL-500120-001 – Rev 1.1
suitable device such
1
2
1
Figure 2 – Max Ranger LEDs
Red LED (Tx)
Green LED (Rx)
Installation
The Max Ranger radio unit can be placed near the
computer or device on a tabletop.
1. Remove the small black plastic cap from the
proprietary antenna jack of the WLAN card with
your finger nail or a small screwdriver.
2. Plug the RF cable that is attached at the bottom of
the Max Ranger to the proprietary antenna jack on
the WLAN card as shown on figure 3.
CAUTION: The antenna connector is a tight push-on fit.
Figure 3 – Connecting the Max Ranger
to the WLAN Card
Proprietary Antenna Connector.
It must be inserted straight into the WLAN card.
Warning: Insert this end into the WLAN card
gently.
Do not twist when removing it or you may
damage the connector!
Warning:
Insert the WLAN card into the appropriate
slot making sure that:
1) The WLAN Card is upside (brand label must
be visible)
2) It slides smoothly across the internal rails of
the slot
3) It is gently pushed all the way in
3. Plug the DC power connector into the jack at the
bottom of the Max Ranger as shown on Figure 4.
Push the cable into the notch in the base to insure
the Max Ranger is stable on the tabletop.
4. Plug the power supply into a standard wall outlet.
Max Ranger
Quick Start Guide
Insert into a compatible
Access Point,
YDI EC, or
Laptop computer
August 2003
