Summary of Contents for Rently Blue RKDB02

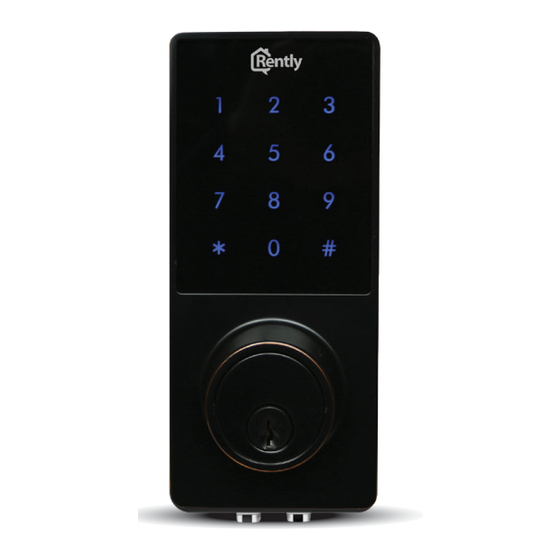

- Page 1 ENTERPRISE BLUETOOTH LOCK Installation & User Manual Model: RKDB02 www.RentlyBlue.com...
- Page 2 The Rently BLUE access control system provides cutting edge bluetooth lock technology at a cost effective price point. Managers that incorporate Rently Blue on a property can instantly provide access to prospective renters, guests and vendors without the need for keys.
-
Page 3: Installation
Installation Please ensure that door specifications meet the below listed requirements. A keyless passage knob may be required for doors with two bore holes. • Door frame - 4.3” inches (110mm) • Door thickness: 1.5”-1.88” inches (38-48mm) • To install lock on a left facing door, ensure the toggle button on the back assembly is set to L. - Page 4 Lock Installation (Continued) Included Parts Step 1 Step 2 Step 3 Make sure the Install bolt in Secure bolt using door is prepped for unlocked position. supplied screws. installation...
- Page 5 Lock Installation (Continued) � � Step 4 Step 5 Step 6 Install deadbolt lock Ensure rubber Route cable through and route cable backing is flush with door opening below through door. door. bolt. Step 7 Step 8 Step 9 Install backplate Select L for left facing Thread cable through using supplied...
- Page 6 Step 10 Step 11 Step 12 Connect deadbolt to Ensure deadbolt is in Align back of lock back portion of lock. the vertical position. with backplate. Step 10 Step 11 Step 12 Download Rently After lock is synced, Screw backplate on Blue Sync App login to Rently portal back of lock, insert...
- Page 7 AutoLock Sensor The optional AutoLock Sensor relocks the deadbolt when the door is closed. This Rently Blue accessory helps enhance security. Cable Frame Sensor Door AutoLock Sensor Step 1 Remove back assembly of lock. Insert connector cable into area indicated on back of lock.
- Page 8 Step 2 Reveal adhesive tape on the back of frame and door AutoLock sensor. Step 3 Place door AutoLock sensor on door and frame sensor on frame. Ensure sensors are no farther than 2 cm apart. 2 cm Step 4 Test AutoLock sensor function by opening and closing door.
- Page 9 To issue a resident a “master code” login to www.rently.com with manager credentials. Select the “Master Code” button under prop- erties. Rently Blue Software Several applications are available to let managers and residents control the Rently Blue lock system. See next page for more details.
- Page 10 Manager Portal (Desktop): Login at www.Rently.com Renter Portal (Mobile) Manager Portal (Mobile)
- Page 11 NOTES:...
-
Page 12: Fcc Statement
To learn more about Rently Blue, visit www.RentlyBlue. com. For any questions please contact Rently using the information below. Email: support@rently.com Phone: 888-659-9596 8am - 5pm PST. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
