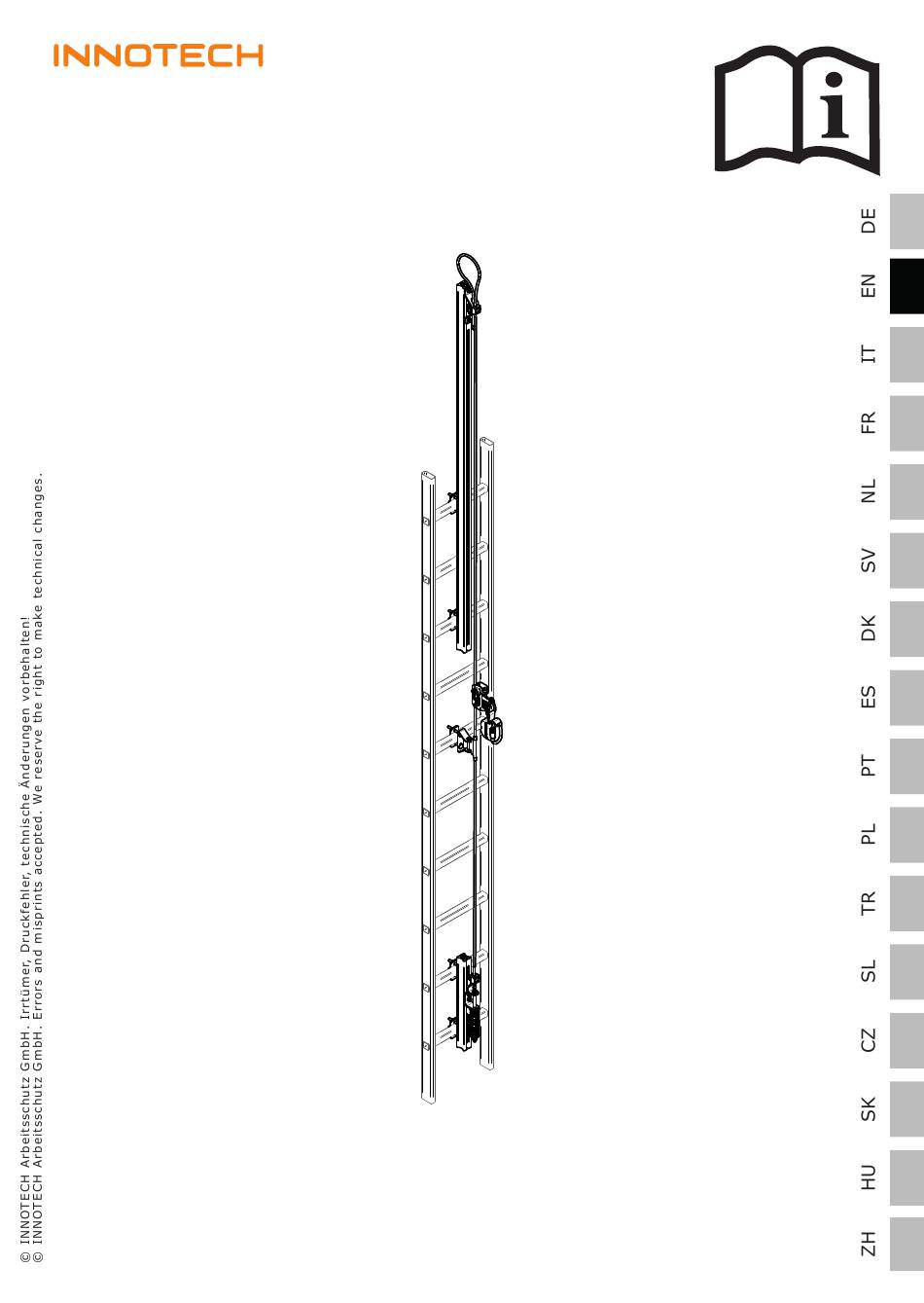

VERT-SET-50
Instruction manual
DE – ACHTUNG: Die Verwendung des INNOTECH-Produkts ist erst zulässig, nachdem die
Gebrauchsanleitung in der jeweiligen Landessprache vollständig gelesen und verstanden wurde.
EN – ATTENTION: Use of the INNOTECH product is only permitted after the instruction
manual has been read and fully understood in the respective language.
IT – ATTENZIONE: L'utilizzo del prodotto INNOTECH è permesso solo previa lettura e
comprensione dell'intero manuale di istruzioni nella lingua del relativo paese di utilizzo.
FR – ATTENTION : L'utilisation du produit INNOTECH n'est autorisée qu'après avoir
entièrement lu et compris la notice d'utilisation dans la langue du pays concerné.
NL – ATTENTIE: Dit INNOTECH-product mag pas gebruikt worden nadat u de gebrui-
kershandleiding in de taal van het betreffende land gelezen en begrepen hebt.
SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på
respektive lands språk har lästs igenom och förståtts.
DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået
brugsvejledningen i fuldt omfang i dit lands sprog.
ES – ATENCIÓN: Se autorizará el uso de los productos INNOTECH una vez que se hayan
leído y entendido las instrucciones de uso en el idioma del país.
PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e
compreendido na totalidade as instruções de uso na respetiva língua nacional.
PL – UWAGA: Produkty firmy INNOTECH mogą być używane dopiero po dokładnym
zapoznaniu się z całą instrukcją obsługi w ojczystym języku.
TR – DİKKAT: INNOTECH ürününün kullanımına ancak ilgili ülkenin dilinde sunulmuş
olan kullanım kılavuzunun tamamen okunmasından ve anlaşılmasından sonra izin verilir.
SL – POZOR: Uporaba izdelka INNOTECH je dovoljena šele po tem, ko ste navodila pre-
brali v celoti v ustreznem jeziku svoje dežele in jih tudi razumeli.
CZ – POZOR: Práce s výrobkem INNOTECH je povolena teprve po kompletním přečtení a
porozumění návodu k použití v jazyku daného státu.
SK – POZOR: Produkt INNOTECH môžete používať až po prečítaní a porozumení celého
návodu na použitie pre príslušnú krajinu.
HU – FIGYELEM: Az INNOTECH termékek használata csak azt követően engedélyezett,
hogy saját nyelvén elolvasta és megértette a teljes használati utasítást.
注意:只有在仔细阅读并完全理解了当地语言的使用说明后,才能使用 INNOTECH 公司的产品。
ZH –

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERT-SET-50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Innotech VERT-SET-50

  • Page 1 SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på respektive lands språk har lästs igenom och förståtts. DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået brugsvejledningen i fuldt omfang i dit lands sprog.
  • Page 2: Table Of Contents

    SIGNS & MARKINGS DIMENSIONS [10] INSTALLATION NOTICE [11] INSTALLATION SUBSTRUCTURE [12] FASTENING OPTIONS [13] INSTALLATION TOOLS [14] INSTALLATION [15] DISPOSAL [16] ACCEPTANCE REPORT [17] SAFETY SYSTEM NOTICE [18] TESTING REPORT [19] DEVELOPMENT & SALES VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 3: Symbol Description

    For a POTENTIALLY dangerous situation which could lead to minor injury or property damages CAUTION Wear protective gloves! Wear protective glasses! Additional Information/Instructions  ü correct incorrect Follow the manufacturer's instructions / appropriate user manuals VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 4: Safety Instructions

    A plan must be in place that includes lifesaving measures for all possible emergenci- es (e.g. at least two INNOTECH "VERT-GLEIT-50‟, ...). Before beginning work, measures must be taken to ensure that no objects can fall down from the working area. The area under the working area (sidewalk, etc.) must be kept clear.
  • Page 5 The installers must ensure that the substructure is appropriate for the anchoring of the INNOTECH "VERT-SET-50" safety system. In case of doubt, consult a structural engineer. It is also essential that the mounting ladder on which the safety system is installed is sufficiently stable.
  • Page 6: Components/Material

    OPTIONAL: A) User Manual B) Lubricant: Weicon AntiSeize ASW10000 C) "VERT-SET-50" Top anchor: Stainless steel AISI 304; Aluminium 6063 D) "VERT-SET-50" Bottom anchor: Stainless steel AISI 304; Aluminium 6063 E) "VERT-SET-50" Clamp plate: Stainless steel AISI 304 F) "VERT-SET-50" Slot nut: Stainless steel AISI 304...
  • Page 7: Product Application/Approval

    The user is connected to the safety system by a body harness in accordance with EN 361, as well as by the INNOTECH "VERT-GLEIT-50‟ vertical glider. In order to minimise the fall stress for the user, the INNOTECH "VERT-GLEIT-50‟ is equipped with a shock absorber.
  • Page 8: Inspection

    INSPECTION INSPECT BEFORE EACH USE INNOTECH "VERT-SET-50‟ is to be checked visually before each use for visible flaws. DANGER OF DEATH from damage to INNOTECH "VERT-SET-50". INNOTECH "VERT-SET-50‟ must be in flawless condition. DANGER INNOTECH "VERT-SET-50‟ must be free of dirt and grease.
  • Page 9: Guarantee

    INSPECTION ANNUAL INSPECTION Have the INNOTECH "VERT-SET-50‟ examined at least once annually by an experienced professional who is familiar with the safety system. The safety of the user is dependent upon the effectiveness and durability of the equipment. Depending upon the intensity of use and the environment, shorter examination intervals can be necessary (e.g.
  • Page 10: Signs & Markings

    Annual maintenance L) Name & address of installation company: Installed by INSTALLED BY ANNUAL MAINTENANCE C 0408 VERT-SET-50 EN 353-1:2014 MINIMUM DISTANCE BETWEEN THE USERS FALL BREAKER VERT-GLEIT-50 INSTALLATION DATE 2016 2017 2018 JJJJ-..-... 06-06-50-AUFKLEBER-EN-B VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 11: Dimensions

    DIMENSIONS [mm] VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 12 DIMENSIONS VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 13: Installation Notice

    Connection to the ladder Few ladder rungs can bear the necessary force of 16 kN (as per EN 353-1). The INNOTECH "VERT-SET-50‟ safety system can therefore be complemented by a backup anchor for additional safety, "VERT-SAFE-50‟ (not included in standard set), which allows for attachment to a static load-bearing construction.
  • Page 14: Fastening Options

    Use products from other manufacturers only if their technical specifications are equivalent (compare product data sheets). The fastening elements mentioned here are NOT included. INSTALLATION TOOLS [mm] SW = 5 SW = 13 SW = 13 VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 15: Installation

    INSTALLATION MORTAL DANGER if NOT assembled correctly. INNOTECH "VERT-SET-50‟ must be installed correctly according to the DANGER user manual. EYE INJURY possible from dust/splinters/liquids. Wear eye protection/protective glasses for installation work. CAUTION INJURIES from sharp edges of components. Wear gloves for installation work.
  • Page 16 INSTALLATION 14.1 "VERT-SET-50‟ TOP FIXING & BOTTOM FIXING Order the anchors, depending upon rung width, as closely together as possible. Attach them at the desired position to the slot. [mm] Order the anchors, depending upon rung width, as closely together as possible.
  • Page 17 INSTALLATION Install the "VERT-SET-50‟ top anchor at the top end over at least 3 ladder rungs (beginning with the top one) with a maximum spacing of 750 mm. SW = 13 2 x 10 Nm 2 x 10 Nm Observe tightening torque.
  • Page 18 INSTALLATION 14.2 INNOTECH "VERT-SET-50‟ STAINLESS STEEL CABLE SW = 5 4 x 10 Nm Observe tightening torque. VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 19 4 x 10 Nm Observe tightening torque. Spring length (after applying tension) 80 - 90 mm. By checking the spring length, the possible fall load can be determined before using the INNOTECH "VERT-SET-50‟ safety system. VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 20: Disposal

    BETWEEN THE USERS FALL BREAKER VERT-GLEIT-50 INSTALLATION DATE 2016 2017 2018 JJJJ-..-... 06-06-50-AUFKLEBER-EN-B DISPOSAL Do NOT dispose of the safety system with household waste. Collect the used components according to national regulations and recycle them appropriately. VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 21: Acceptance Report

    Delivery of: (e.g.: Cable glider, Personal protective equipment (PPE), storage cabinet) Pcs. Pcs. Pcs. Pcs. The installation has been integrated is not integrated into the existing lightning protection system Name: Customer Vertical cable system installer Date, company seal, signature Date, company seal, signature VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 22: Safety System Notice

    In case of stress on the system from a fall or if any doubts arise, the safety system is to be removed from use immediately and sent to the manufacturer or a qualified professional workshop for examination and repair. This also applies if anchor components are damaged. VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 23: Testing Report

    Inspection according to manufacturer's indications Date of expiry periodic annual examinations conducted not examined (no authorisation) STAINLESS STEEL CABLE optical check cable threads INTERMEDIATE BRACKETS: clamping not bent BOTTOM ANCHOR: Cable tension adequate Anchor plate not warped VERT-SET-50 / Version 170201 / www.innotech.at...
  • Page 24 Not soiled Laser engraving Original karabiner (Closure, Corrosion, ..) Activating mechanism: Place the INNOTECH "VERT-GLEIT-50" on the cable (as described) and attach the original karabiner. Move the INNOTECH "VERT-GLEIT-50" (including (karabiner) upwards and let go. The INNOTECH "VERT-GLEIT-50" must lock immediately (after approx.
  • Page 25: Development & Sales

    DEVELOPMENT & SALES INNOTECH Arbeitsschutz GmbH, Laizing 10, 4656 Kirchham/Austria www.innotech.at VERT-SET-50 / Version 170201 / www.innotech.at...
