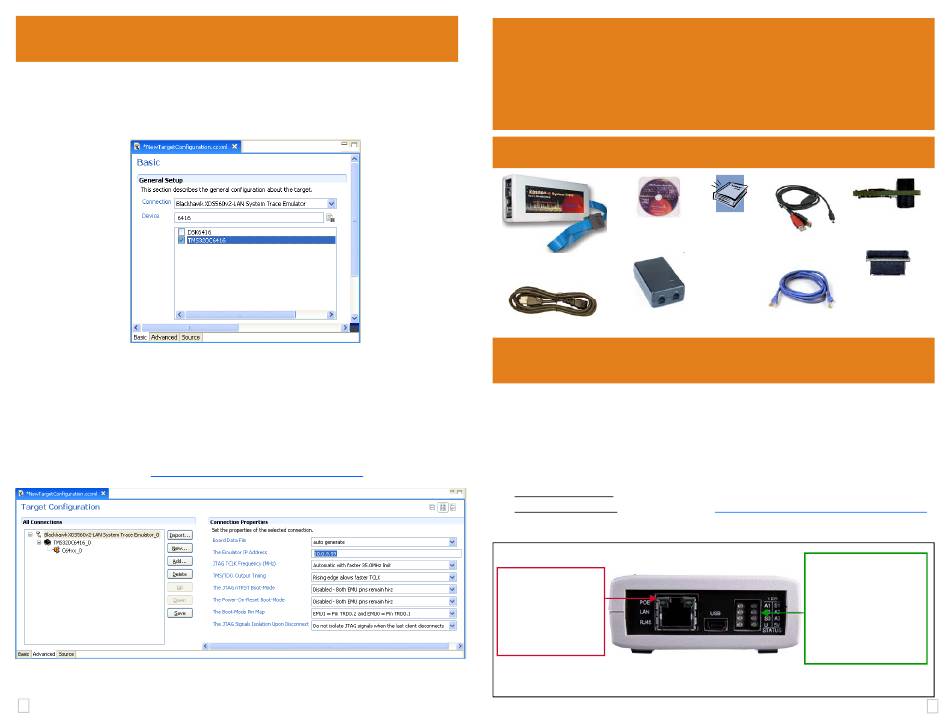

BLACKHAWK! BH560v2 Quick Start Manual

6 CCStudio
Setup
CCStudio v4.2 and later
•
In the CCSv4 Target Configuration General Setup window (see figure 5 below) simply
select the Blackhawk XDS560v2-LAN System Trace Emulator connection.
•
Type your device or board in the device list and check the box on the left.
FIGURE 5 - CCS v4 Basic Target Setup
•
Choose the "Advanced" tab.
•
Highlight the Emulator Connection Name.
•
Type in "The Emulator IP Address" Box your emulator Static or DHCP IP address.
(see figure 6 below)
•
Save this setting and launch the TI Debugger.
For more information on CCS v4, please visit the TI Wiki site:
http://www.tiexpressdsp.com/index.php/CCSv4
FIGURE 6 - CCS v4 Advanced Target Configuration
Blackhawk
123 Gaither Drive, Mt. Laurel, NJ 08054-1701
4
www.blackhawk-dsp.com
Blackhawk is a registered trademark of EWA Technologies, Inc.
BH560v2-QS-02
QUICK
START
GUIDE
Related Items
CD ROM
BH560v2 Emulator &
Target Cable
PoE injector
AC Wall Cord
Power Supply
1 Software Installation
DO THIS FIRST!
Install CCStudio v4.2 or later before connecting the emulator hardware to the PC
or network.
All the files needed to use the
BH560v2
lation from TI. This includes the necessary Windows device drivers for both 32 and 64 bit
operating systems.
For software updates: use the automated CCS v4 update tool under the help menu.
For CCS v4 questions: visit the TI Wiki Site:
RJ45 Connector
with LED Indicators
Connector is POE Com-
pliant for use with POE
power supply injector.
(IEEE802.3af compliant)
FIGURE 1 - BH560v2 Host End Panel & Indicators
Blackhawk™
XDS560v2
System Trace
Emulator
(BH560v2)
Target Cable
Quick Start
Buffer Board
Guide,
Warranty
USB Cable
and
Registration
cards
MIPI 60
Pin Converters (4)
ARM 20
CAT5e Network
Cables (2)
TI 60 - trace
are installed as part of the CCS v4.2 or later instal-
http://www.tiexpressdsp.com/index.php/CCSv4
LED Status Area
A1: Reserved
A2: HOST Activity
A3: Target Activity (STM)
S1: CCS Connected
S2: FPGA Programmed
S3: DTC Ready
U: USB Enum/Activity
5V: Unit is powered
TI 14
cTI 20
