User's Manual

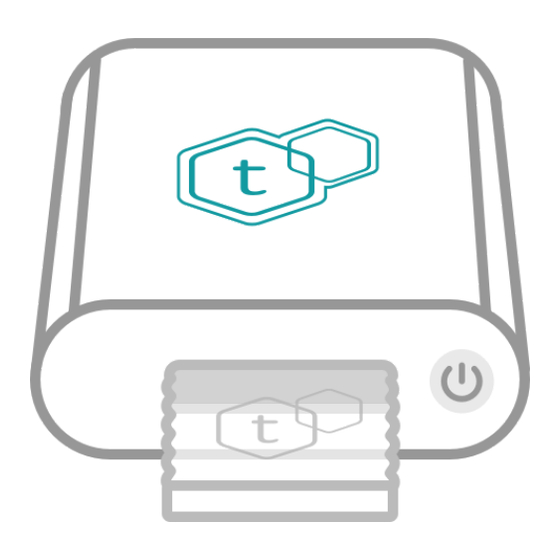

tCheck makes it easy to measure the potency of your infused oils and create recipes
with exactly the strength that you need. With the addition of the flower & concentrate
testing kit, you can also use tCheck 2 to measure the potency of your plant material** &
concentrates.
tCheck's patented technology measures infusions in:
● Ghee / Clarified Butter
● Olive Oil
● Coconut Oil / MCT Oil
● Alcohol
Oils such as coconut oil and butter must be warmed to a clear liquid state before
measurements can be performed. Do not place the tray on a hot surface, or in the
microwave. Excessive heat can cloud the tray or damage the surface. Boiling
liquids may damage the tray.
When measuring butter, please be sure to only use the clear butter fats. Milk solids will
throw off the measurements.
Mobile App
tCheck2 requires Bluetooth Low Energy (BLE) connectivity to a mobile device in order
to function. Apps are available for both iOS and Android. Please download the apps
from the respective apps stores.
<< Add links here >>
How to pair the device to your phone
<< Figure this out >>
How to run a test
Ensure the sample tray is not inserted into device when powering on. tCheck
performs power-on self diagnostics and a tray may interfere with these self
checks.
Place tCheck on a flat level surface and turn on by pressing the power button.
1. Open the sample tray by separating the top and bottom halves.
2. The top half can be identified by the tCheck logo, put this aside for now.
Advertisement
Table of Contents
Summary of Contents for tCheck tCheck
- Page 1 With the addition of the flower & concentrate testing kit, you can also use tCheck 2 to measure the potency of your plant material** & concentrates.
- Page 2 3. Place the bottom half of the test tray on a level surface, place approximately 4-5 drops of infused oil into the circular well area. A little excess oil is OK. 4. Now place the top half of the tray onto the bottom, it’s OK if a small amount overflows out of the circular well area.
-
Page 3: Interpreting Your Results
Due to the physics that tCheck uses to make measurements, there are certain limits to what it can measure. This is like using a ruler to measure the length of a dinner table. -
Page 4: Firmware Updates
● Do not wash sample tray in dishwasher, high temperature water will deform the plastic. ● Never store a used tray or clean tray in the tCheck unit. Always remove the tray and store both the tray and tCheck in a clean, dry place. Try to keep your tCheck device free of internal dust as well. -
Page 5: Troubleshooting
The given result has an error of ±10%. This means that a reading of 10 mg/ml could have an actual value ranging between 9-11 mg/ml. With proper use, and following all directions, your tCheck should never test outside of this range. Most labs test at a +/- 5% variance. -
Page 6: Rf Exposure Compliance
While exposure is unlikely, avoid placing your eye against the sample tray slot opening during device operation. ● If you do not plan on using tCheck for an extended period of time, we recommend removing the batteries to prevent leakage. -
Page 7: Important Safety Instructions
[US 21 C.F.R. 101.93(c)]. 7. Do not overfill test sample tray. Leakage out of the tray into the tCheck device may damage internal electronics. See warranty details. 8. Do not install tray upside down. Leakage into the device may occur and damage internal electronics.
