  • Page 3 Congratulations on the purchase of the Lifebuoy Pool Alarm System We at Lifebuoy love pools and believe that pools can and must be safer for children and toddlers. The system was tested in accordance with the ASTM F2208 Standard and is intended to warn of falling into the pool and when the cover is removed.
  • Page 4 Read this guide fully prior to use. Do not leave objects in the pool Lifebuoy is exclusively a safety device when the system is activated. and is not a lifesaving product. The system warning when opening...

  • Page 5: Package Contents

    Package Contents 1. Floating unit The package was uniquely designed to provide protection for the lifebuoy system until it is purchased. Check the integrity of the packaging prior to initial opening. The package contains: 2. Transparent balancing cone • User’s guide including the warranty certificate.

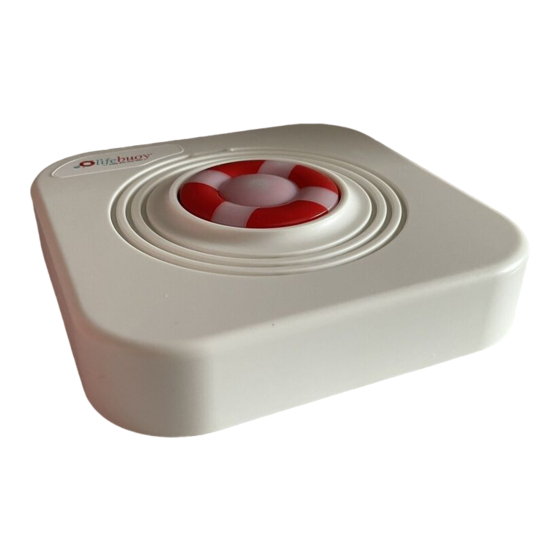

  • Page 6 with the floating unit. Definitions and Manner • The control unit contains a of Action in Principle broadcasting and receiving processor that serves for The Floating unit communications with a cellular device (smartphone). • The floating unit contains an • The control unit contains a button alarm serving as a warning and for in the shape of a life buoy, and...

  • Page 7: Installation

    Installation Pay attention to the proper Connect the cone to the floating unit, direction of installation (polarity) of as shown in the illustration (make the battery. Incorrect installation sure cone is securely connected), could cause harm to the device and place the system in the pool. and void the warranty.
  • Page 8 Repeat communication between the units: this stage until proper result Install the Lifebuoy application obtained. (Lifebuoy Alarm mobile app). Turn off the device by a long Secure the floating unit at the...

  • Page 9: Operating The System

    Pool with a cover: From a fully shut Operating the System down state (not stand-by) a long push on the control unit button will activate it. The floating unit must be in the pool • Push on the button for 3 seconds when the system is activated.

  • Page 10: Shutting Down The System

    operation similarly to regular Shutting Down the operation (see page 12). System The system will reactivate to • regular mode, also if prior to the button being pushed When the system is operating (with/ operational state of the system without a cover) or during an active was that of a covered pool.
  • Page 11 by mode. • When the unit is raised the system will sound a warning and will cease after a few seconds in a vertical position. • Both the floating unit and the control unit will sound 2 beeps, and on the control unit red and green lights will...

  • Page 12: Warning Alarm

    Neutralization of the system during Warning Alarm the sounding of the alarm can be performed by means of each of the In the event of a warning the alarm 3 ways of switching the system off: will sound continuously for 3 minutes Transfer to stand-by mode by a from both the control unit and the short push on the control unit...
  • Page 13 1. Operating the system when the floating unit Operating the system when the is not horizontal floating unit is not horizontal If the floating unit is not in the pool or encounters a physical obstruction (causing it not to be horizontal) the system cannot be operated properly.

  • Page 14: Communication Test

    unit must be replaced. Automatic Testing when • If the voltage level in the floating the System is Activated unit drops below 7 volts, the control unit will sound two beeps every 15 minutes. If this occurs In order to ensure that the system is the floating unit must be delivered working properly,...
  • Page 15 different places around the pool. Testing Good Working • Perform this working order test Order prior to the initial operation of the system and in each of the Mandatory prior to initial operation following instances: If the user of the system or replacement of chooses to secure the system by the pool anchoring it to a specific area of...
  • Page 16 • Operate system Testing Working Order covered pool mode, as described when Operating with a on page 9. Pool Cover • Wait for 20 seconds after activation and then raise the cover to open it Mandatory prior to initial operation partially, as shown in illustration of the system or replacement of the on page 11.
  • Page 18 Following are the Adjusting and Calibrating instructions for changing the System's Sensitivity the sensitivity grade from the control unit: If the working order test fails (see chapter “Testing good working order”), Operating the system – a green it is possible to calibrate the system’s flash should be seen every 2 sensitivity and adjust it for the pool.
  • Page 19 new sensitivity grade to indicate The location of the securing must be that the new sensitivity was set. distanced from source obstruction in the pool. If the button is pressed for more than 10 seconds, a double beep Attach nylon string to one of the will be sounded and the system holes at the side of the unit as will enter stand-by mode (green...
  • Page 21 Page Name of mode Initial mode Entry into mode 9 Switching on Switched off; no sound; no lights; Short push on the (Without a cover) The system is horizontal in the pool control unit button 9 Switching on Switched off; no sound; no lights; Long push on the (With a cover) The system is horizontal in the pool...
  • Page 22 Red flashing Beep Loud beep/alarm Green flashing Indication sound and voice Control unit – Short single beep; green flashing every 2 seconds Floating unit – Short single beep; green flashing every 20 seconds Control unit – 4 Beeps; green flashing every 6 seconds Floating unit –...

  • Page 23: Warranty

    Warranty The Lifebuoy Company Ltd is hereby behalf of the company, or as a result responsible for the proper working of incorrect usage, as explained in the instruction manual. order of the aforementioned device according to the following conditions: This warranty does not confer any...
  • Page 24 Download LifebuoyAlarm Mobile App Please visit our website for more information www.lifebuoyalarm.com Date of purchase Serial no. Stamp and signature Invoice no. of the seller...
  • Page 25 -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Lifebuoy Ltd.) could void the user’s authority to operate the equipment.
  • Page 26 LTD www.lifebuoyalarm.com info@lifebuoyalarm.com Made in Israel LifeBuoyAlarm LifeBuoyAlarm...
