Dear user:

Thank you for your purchase of the CUBE SPEAKER. Your purchase is highly appreciated.

We recommend you: read the manual carefully before your first use and store it in a safe place

for future reference since it includes the safety precautions and statement, warranty policy and

Ce Declaration Of Conformity stipulated by applicable laws.

I. CUBE SPEAKER 2.1 Speciﬁcations

1. Power supply: DC 24V

2. Max output power:

L/R channel 50W + 50W 4Ω

Treble/bass 50W + 50W 4Ω

3. Frequency response: 55Hz-26KHz

4. Drive units: 3" * 4

5. Signal-to-noise ratio (SNR@1kHz)

Analog: 85dB

Digital: 90dB

6. Impedance: 4Ω

7. Distortion: 0.03%@1W/ch

8. Dimensions:

L/R channel: L 116 X W 116 X H 116 mm*2

Treble/bass channel: L 232 X W 116 X H 116 mm

9. Gross weight: 5.2kg

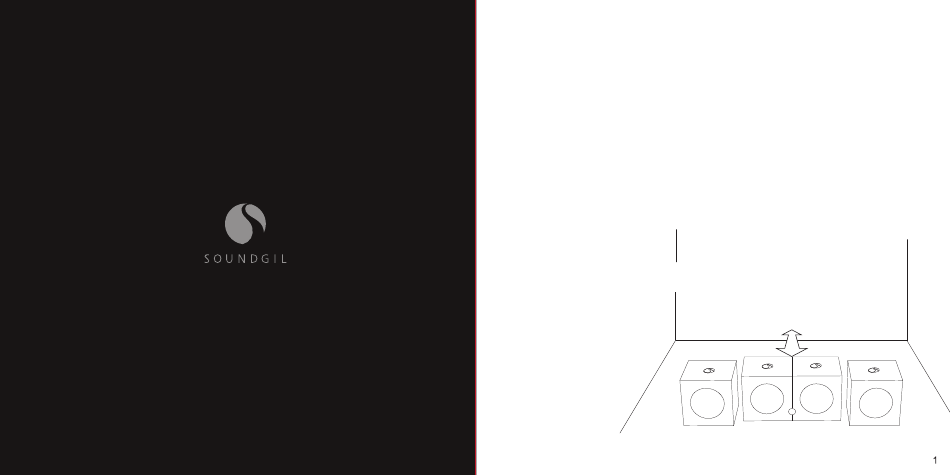

Recommend setting position:

1.Set up The Cube Speaker at 20 from

a solid wall for better bass

2.Set up The Cube Speaker in 2m room

space at least

3.Set up The Cube Speaker on a solid

wood surface

Table of Contents

Need help?

Do you have a question about the CUBE SPEAKER and is the answer not in the manual?

Page 1 Dear user: Thank you for your purchase of the CUBE SPEAKER. Your purchase is highly appreciated. We recommend you: read the manual carefully before your first use and store it in a safe place for future reference since it includes the safety precautions and statement, warranty policy and CE Declaration of Conformity stipulated by applicable laws.
Page 2 II. Parts Introduction (2) Power Adapter and Cables: 1. AC cable (1) Main unit: 2. Power supply 3. Speaker cable (118mm*2) 1. Main Unit Ports Introduction 4. Speaker cable (400mm*2) 5. 3.5mm to 3.5mm stereo audio cable (1800mm) 6. 3.5mm to optical cable (1800mm) 3.5mm stereo audio / fiber / coaxial port Right channel Left channel...
Page 3 Use genuine or supplied supports, brackets, stands and covers. When moving the device with the support, make sure not to flip the device over and cause damage. 1. For application notes, visit www.soundgil.com. Set up the device properly to avoid collision.
Page 4 Do not set up the device in the vicinity of a heat source, e.g. lit candle. VI. CE Declaration of Conformity Use the provided power supply. The power supply is intended for the device only. Do not use it beyond We hereby declare the product conforms to: its specifications.
