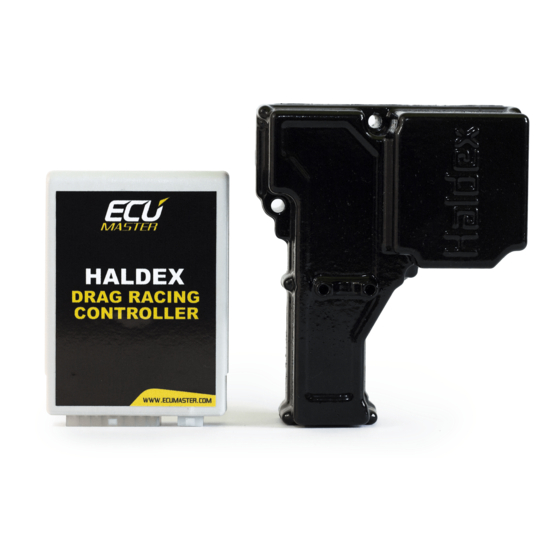

Ecumaster HALDEX Wiring Diagram

Hide thumbs
1
2
3

Advertisement

Table of Contents

+12V
+12V
10K/A

IMPORTANT !

1) Flyback diode for oil pump control must be conected ! Otherwise the device will fail.
2) Power ground (terminal 15) should be connected with separate wire.
3) +12V must be switched power.
4) Use 3A fuse for switched +12V and 10A fuse for Oil Pump power.
5) If you use VSS input, connect pullp resistor to VSS input (10K)

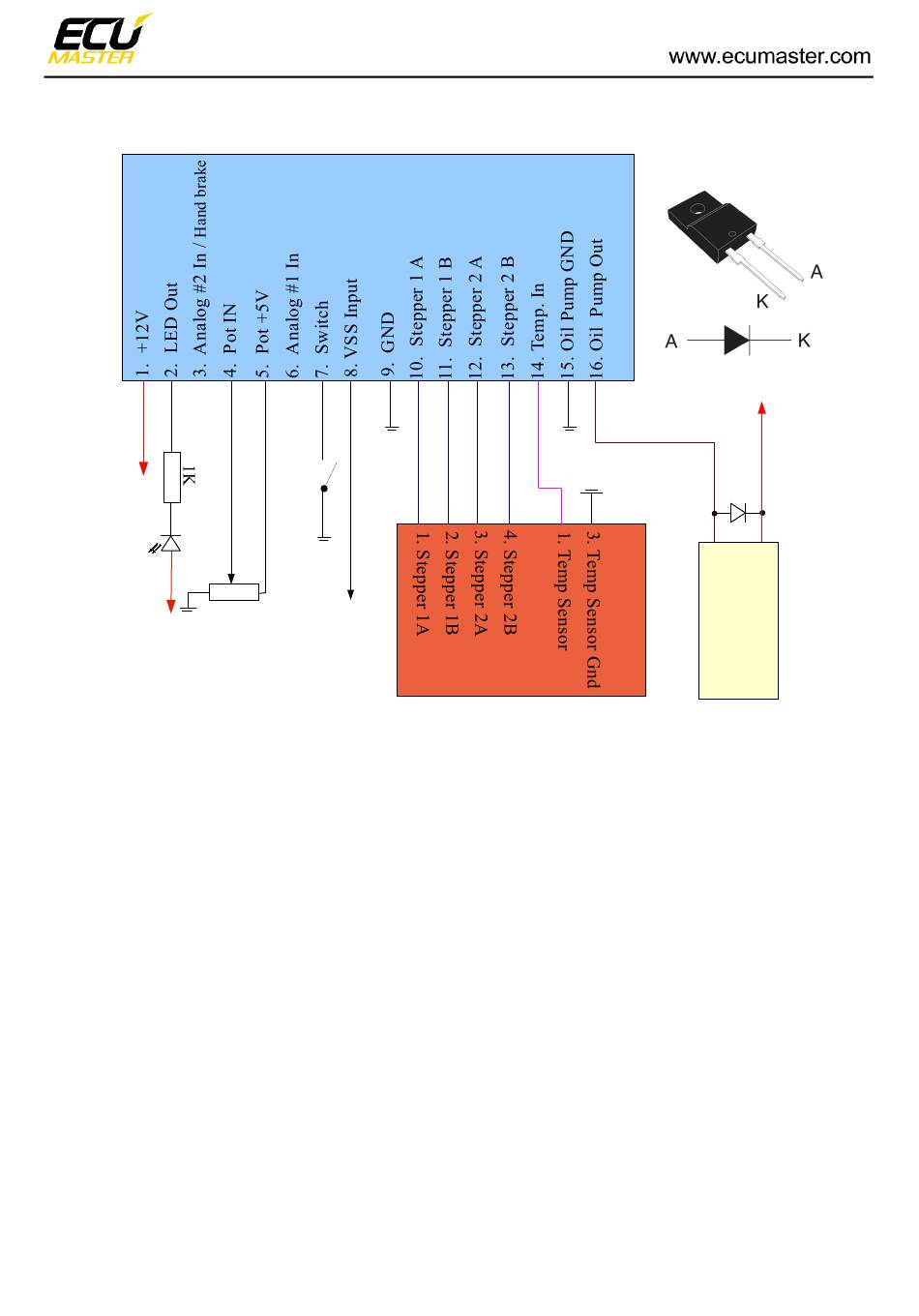

HALDEX – WIRING DIAGRAM
VSS
HALDE
X
+12V
2
1
OIL
PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HALDEX and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecumaster HALDEX

  • Page 1 HALDEX – WIRING DIAGRAM +12V +12V +12V 10K/A HALDE PUMP IMPORTANT ! 1) Flyback diode for oil pump control must be conected ! Otherwise the device will fail. 2) Power ground (terminal 15) should be connected with separate wire. 3) +12V must be switched power.
  • Page 2 Vss freq. Max oil temperature – if the temperature of Haldex module oil is greater that this parameter the controller switch the Haldex module off, and the torque transfer is set to 0%. Advanced settings (only for advanced users!) Step scale –...
  • Page 3 Logged parameters The device monitors and log the following parameters Oil temp. - current Haldex module oil temp., Req. pos - required torque transfer in % Curr. Pos – current torque transfer in % Freq. In - frequenct on VSS input Analog #2 –...
