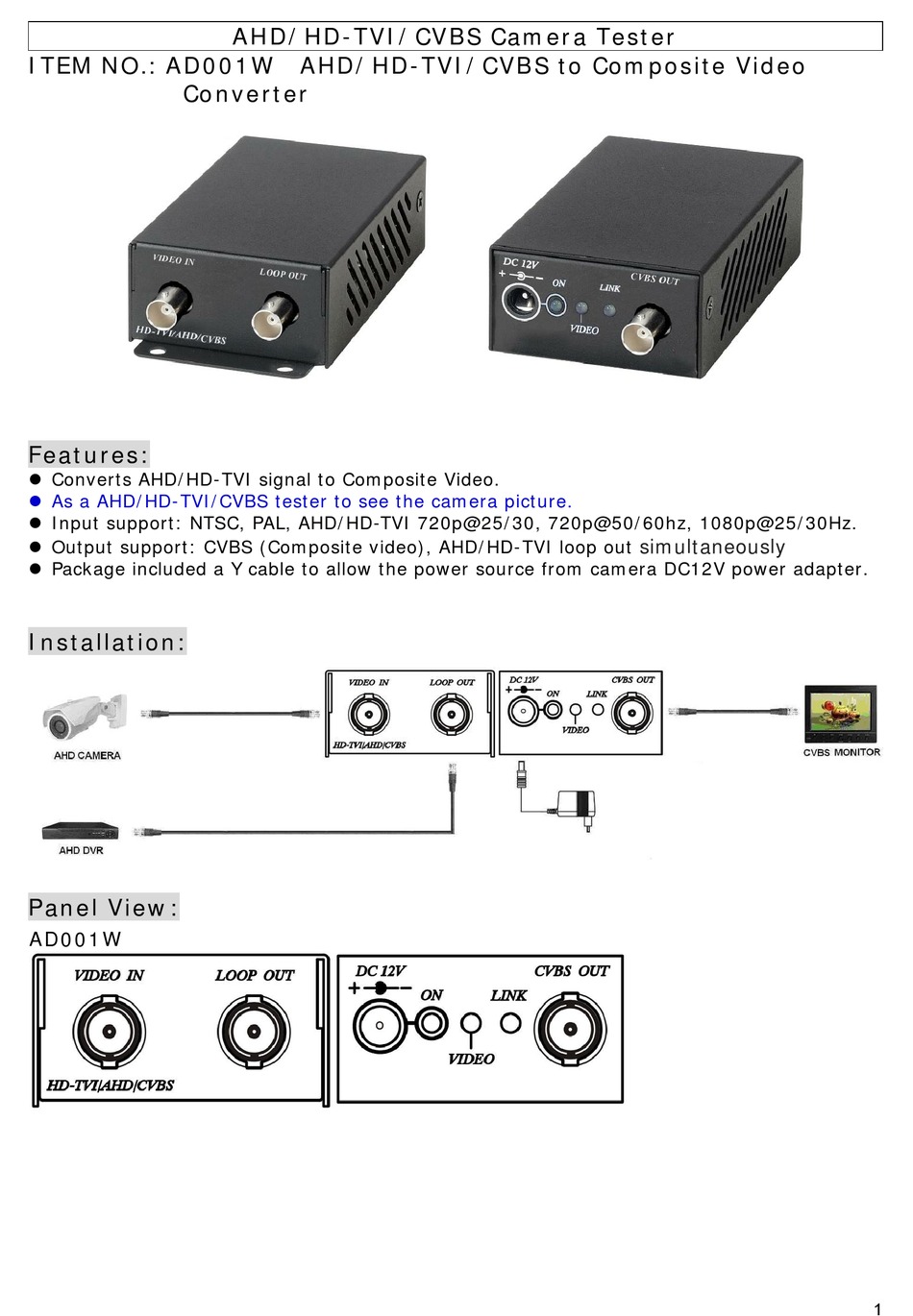

AHD/HD-TVI/CVBS Camera Tester
ITEM NO.: AD001W AHD/HD-TVI/CVBS to Composite Video
Converter
Features:
Converts AHD/HD-TVI signal to Composite Video.
As a AHD/HD-TVI/CVBS tester to see the camera picture.
Input support: NTSC, PAL, AHD/HD-TVI 720p@25/30, 720p@50/60hz, 1080p@25/30Hz.
simultaneously
Output support: CVBS (Composite video), AHD/HD-TVI loop out
Package included a Y cable to allow the power source from camera DC12V power adapter.
Installation:
Panel View:
AD001W
1
Advertisement
Table of Contents
Summary of Contents for Foresight CCTV AD001W
- Page 1 AHD/HD-TVI/CVBS Camera Tester ITEM NO.: AD001W AHD/HD-TVI/CVBS to Composite Video Converter Features: Converts AHD/HD-TVI signal to Composite Video. As a AHD/HD-TVI/CVBS tester to see the camera picture. Input support: NTSC, PAL, AHD/HD-TVI 720p@25/30, 720p@50/60hz, 1080p@25/30Hz. simultaneously Output support: CVBS (Composite video), AHD/HD-TVI loop out ...
- Page 2 Normal mode OFF: ISP Mode for firmware update Caution Before use Y cable with camera’s power adapter, please make sure the power adapter is enough for camera use plus AD001W DC12 500mA Specification: ITEM NO AD001W NTSC, PAL, Video Support Resolution...
