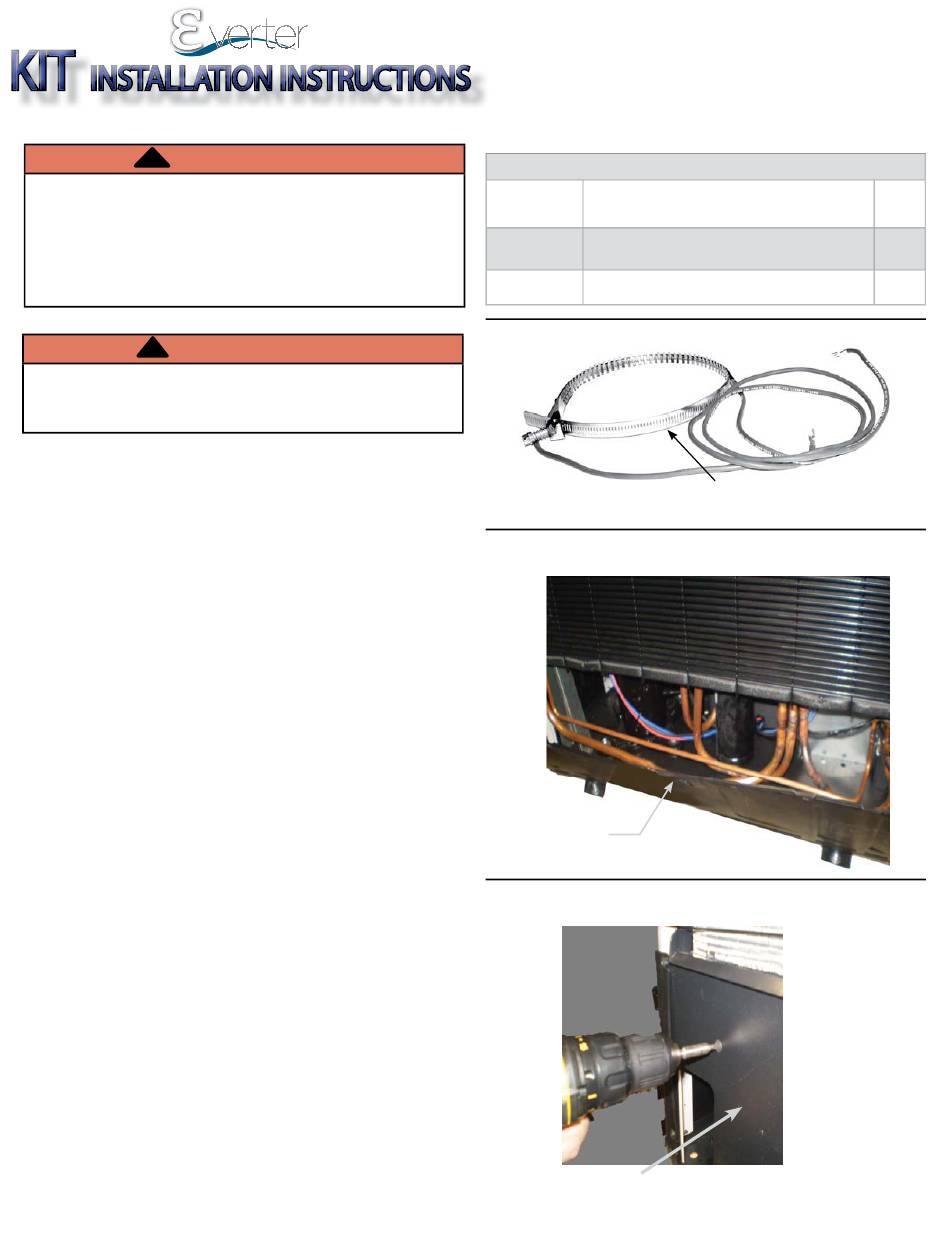

EMI S1CV Installation Instructions

WARNING
!
Electrical shock hazard. Improper installation
could result in death or serious injury. Read this
instructions and understand all requirements before
beginning installation. Installation is not complete
until appliance operation is verifi ed per Installation,
Operation & Maintenance Manual provided with unit.
WARNING
!
Electrical shock hazard. Turn OFF electrical power
supply at service panel. Failure to do so could result
in death or serious injury.
Kit installation shall be completed by a qualifi ed
service agency.
This kit is required for cooling operation below 60° F
(15° C).
Tools
• Screwdriver
• 5/16" Nut-driver
• Needle Nose Pliers
Installation Instructions
1.
Disconnect Power Supply.
2.
Remove front panel. See Figure 1.
A. Remove screws from front of left and right side
panels.
B. Remove screws from front of panel.
C. Remove front panel forward to access compressor
compartment.
3. Access electrical connections and wiring diagram:
A. Remove all screws on back panel adjacent to line
set side. See Figure 2.
B. Remove control box cover to access electrical
connections and wire diagram on inside of panel.
See Figure 3.
INVERTER S1CV
CRANKCASE HEATER
KIT # 550002575
[for 9,000-24,000 Btu 208/230V ]
KIT #550002575
Part
Number
240001773
Crankcase Heater - 208/230V
207000010
Wire Ties
Figure 1 - Crankcase Heater
Figure 2 - Remove Front Panel
Remove panel by
bringing forward
Figure 2 - Back Panel
BACK PANEL
Description
Crankcase Heater
S1CV S1CV
Shown Shown
240009304 REV B [7/2012]
QTY
1
5
