Summary of Contents for Jofemar BT-11

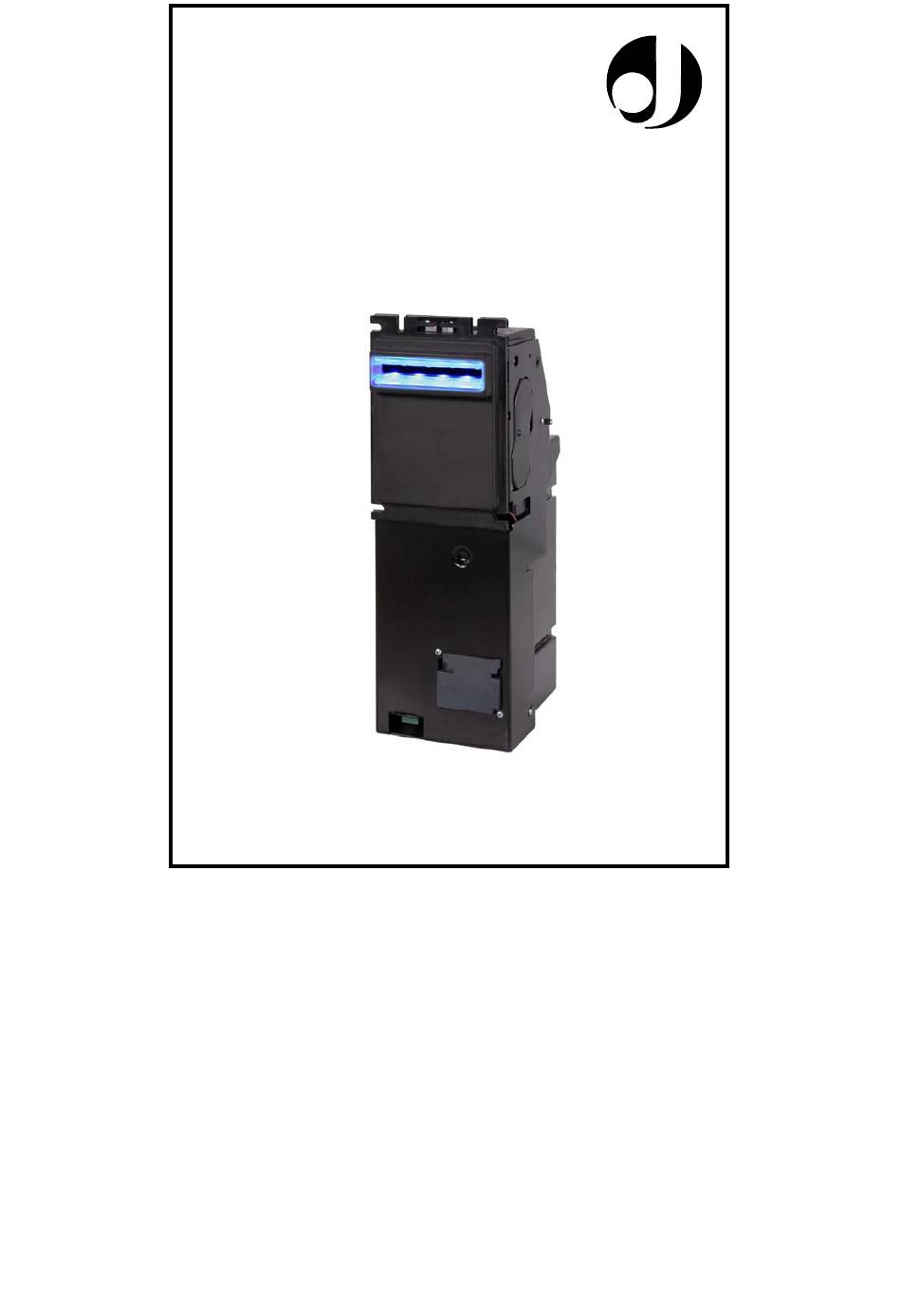

- Page 1 English Jofemar BANKNOTE READER BT-11 User’s Manual MNP85ENV00 Rev.02 (2014-01-07) Page 1 of 20...
- Page 2 This symbol means that the material should not be thrown away with domestic waste This symbol means that the material is recyclable Jofemar S.A. Ctra. de Marcilla Km.2, 31350 Peralta. Navarra, Spain. http://www.jofemar.com Tel.+34 948-751212. Fax +34 948-75 04 20 MNP85ENV00 Rev.02 (2014-01-07)
-
Page 3: Table Of Contents
TABLE OF CONTENTS: GENERAL DESCRIPTION Banknote reader structure Mechanical characteristics of the banknote reader Dimensions of the banknote reader Electronic characteristics of the banknote reader BANKNOTE READER STATUS LEDS ... -
Page 4: General Description
This document aims to provide the necessary information for proper handling and operation of the BT11 banknote reader, and for solving simple problems. However, for more complex problems, you should contact your nearest Jofemar technical support service. This BT11 banknote reader is available on this different model: - With MDB protocol, quite common in vending machines, tobacco and snacks. -
Page 5: Electronic Characteristics Of The Banknote Reader
Once the reader is initialized, the blue LEDs follow one of the different cadences established by Jofemar that can be selected by the dip switches . If only one blue LED is on, in the left end of the line, it means the reader is in programming position. -
Page 6: Using Dip Switches
When a banknote is rejected, once it rejected, the red LEDs will blink a number of times, which will depend on the reason for the rejection. The numbers of blinks mean the following: Number of blinks Meaning Banknote not recognised Banknote inhibited by host machine Banknote inhibited by banknote reader 3. -
Page 7: Reader Behaviour When A Jam Is Detected
3.2 Reader behaviour when a jam is detected The following configurations of switches allow you to choose how the banknote reader should behave when there is a jam. To configure either one of them, the banknote reader should be off. Select the suitable switch configuration, turn on the reader and wait until all blue LEDs are on. -
Page 8: Bill Inhibition And Software Information
3.6 Bill inhibition and software information To access the banknote inhibition options turn the reader off and choose the following dip switch setting: Once it is on, the blue LED on the left flashes 3 times after the boot sequence (all blue LEDs at once and then the red LEDs again). -
Page 9: Front Led Lighting Control Without Mdb Communication
The functionality of leaving the last note in escrow position before making the sale is available only if the firmware of the machine supports this capacity. For the banknote reader to work properly, most Jofemar machines require that the following operation options be modified: Maximum return: The value should be at least the value of the biggest banknote you want to use. -
Page 10: Bt11 Mdb Communications Connection
Removing and placing the stacker while the bill reader it is switched on. Calibrating the reader by using the dip switches is explained in section 3. This method should be used with new control cards provided by Jofemar or when the calibration by removing the stacker does not work. -
Page 11: Programming Banknote Inhibition
If the note is not inserted for the next 5 minutes after the first phase is over, the reader will consider that the calibration is over, but it won´t be a correct one and it will be necessary to do it again. If the calibration note gets stuck during calibration, after removing it, all the LEDs will be on, and once the note is introduced again, the phase where the note was stuck will start again. -
Page 12: Troubleshooting
Please consult your local authorities about recycling information. When the customer wants to throw out the equipment, Jofemar has established a waste management system with an Integrated Management System. Check for information on recycling. -
Page 13: Appendix

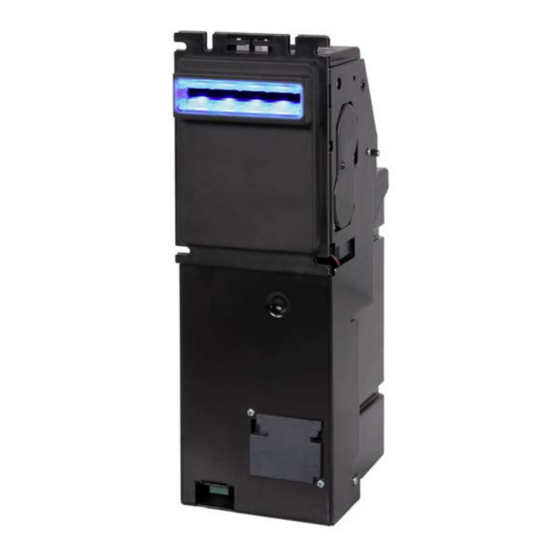

7. Appendix Figure 1: General view of the banknote reader. MNP85ENV00 Rev.02 (2014-01-07) Page 13 of 20... - Page 14 Stacker 200 Stacker 375 Stacker 500 Figure 2: Possible stackers for BT11 banknote reader Figure 3: Reader with Stacker 200 (measures in mm) MNP85ENV00 Rev.02 (2014-01-07) Page 14 of 20...
- Page 15 Figure 4: Reader with Stacker 375 (measures in mm) Figure 5: Reader with Stacker 500 (measures in mm) MNP85ENV00 Rev.02 (2014-01-07) Page 15 of 20...
- Page 16 Figure 6: Switches in OFF position. Figure 7: Image of the readers cover showing the MDB software and sensor software version. In this case it is the 8 version of the MDB software and the 3 version of the sensors. MNP85ENV00 Rev.02 (2014-01-07) Page 16 of 20...
- Page 17 Figure 8: Front view control card BT11 MDB Figure 9: Tab to be pushed to clean the readers head. MNP85ENV00 Rev.02 (2014-01-07) Page 17 of 20...
- Page 18 Figure 10: Metal shaft to be pushed to remove stacker MNP85ENV00 Rev.02 (2014-01-07) Page 18 of 20...
-
Page 19: Notes
8. Notes ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ MNP85ENV00 Rev.02 (2014-01-07) Page 19 of 20... - Page 20 JOFEMAR S.A. Reserves the right to introduce improvements in this model arising from its continuous research without prior notice. MNP85ENV00 Rev.02 (2014-01-07) Page 20 of 20...
