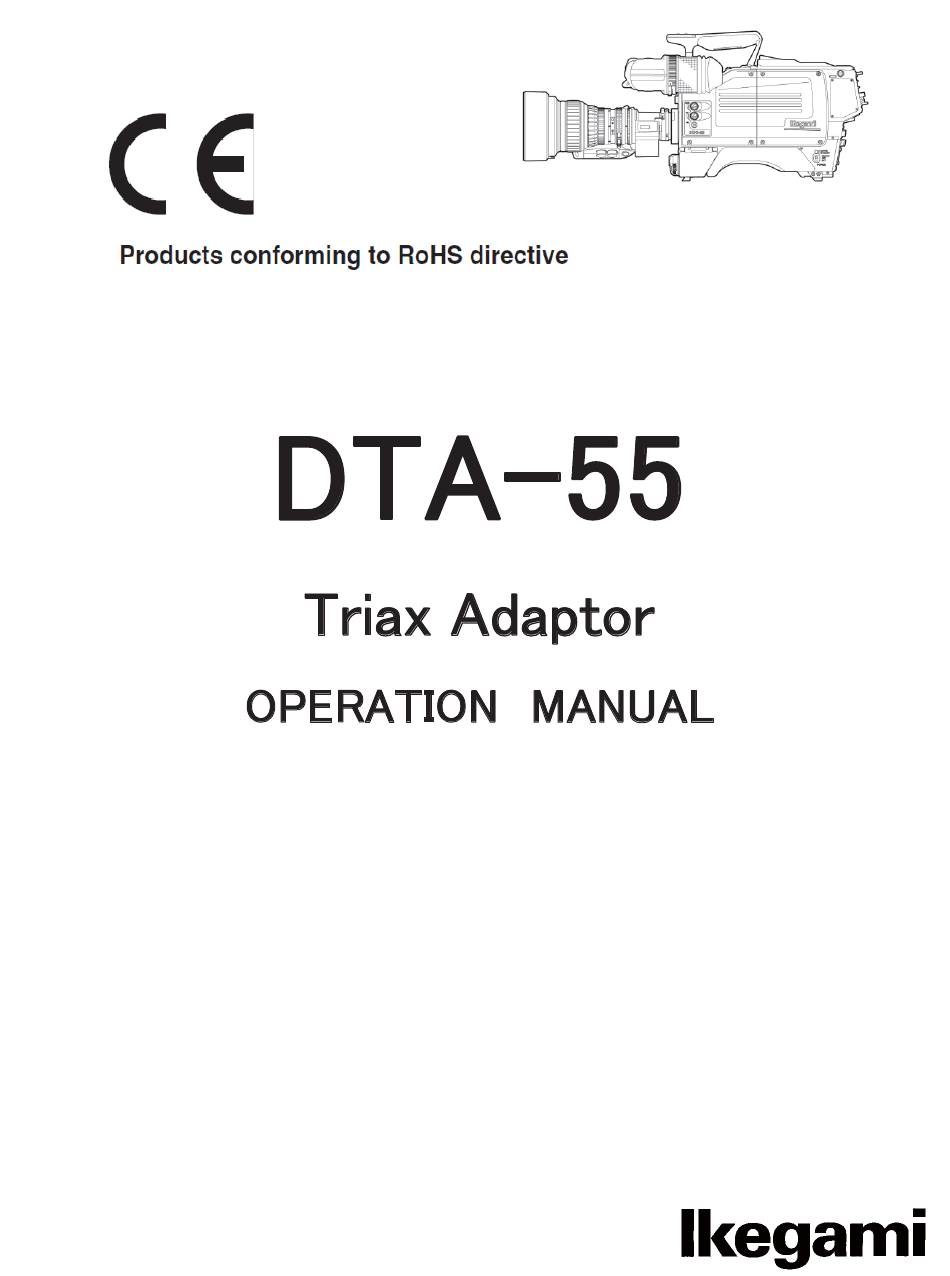

Ikegami DTA-55 Operation Manual

Triax adaptor

Hide thumbs

page of 72

/ 72
Bookmarks

Available languages

Quick Links

Download this manual

Need help?

Do you have a question about the DTA-55 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ikegami DTA-55

Page 5 DTA-55 Triax Adaptor...
Page 6 - If the customer mixed the lead-solder with the main body wiring or the circuit board, it becomes guarantee off the subject. Ikegami doesn’t guarantee to do the repair work. Because the solder polluted with lead cannot be removed. Be sure to use conforming to RoHS directive.
Page 7 3. Please use it by less than 10m, when you use cable of MIC1 OUT, MIC2 OUT, and INTERCOM. 4. We carried out a test in accordance with EN55103-1 Annex B. As a result, the value of the inrush current is as follows. Inrush current BST-55 + HDK-55 + DTA-55 + VF421HD + OCP-200 : 16.6A...
Page 8 This manual describes the precautions using various pictorial symbols for you to use the product safety. Please read these precautions thoroughly before use. The symbols and e¥meanings are as follows.
Page 11 This page explains general notes on reading the DTA-55 Operation Manual, and symbols and notations used in the manual. - This manual is written for readers with a basic knowledge of handling a broadcast camera, BS, or MCP. - The contents of this manual are subject to change without notice in the future.
Page 12 DTA-55 Camera Adaptor Operation Manual is intended to both safety and smoothly operating the DTA-55. Operation Manual consists of six chapters. By reading it in sequence, you can smoothly perform a series of steps, from connection to operation. Explains the features and the specifications of this product.
Page 17 SDTV systems where the TRIAX cable is already equipped, such as a sports stadium. DTA-55 uses the same body as FA-97 fiber camera adaptor. Accessories, such as large viewfinder is common with FA-97 fiber adapto RET signal is 4:2:2 HD-SDI, and Q-TV signal is 4:2:2 SD-SDI.
Page 18 External DC DC11V to 16V Input voltage XLR type 4pin connector External Dimensions W141×H228×D196mm not including projections) Mass Approx. 3kg Temperature Operating temperature -20 to +45 Storage temperature to +60 Humidity 30% to 90 (No condensation) Applied Standard EN60950-1 Quality control ISO9001 Within the practical life zone (Excluding places where an electric field or a magnetic Usage condition...
Page 19 Microphone -60dBs to -40dBs w/wo +48V Phantom Power MIC-1/MIC-2 -20dBs w/wo +12 AB power XLR type 3pin connector 2channels Intercom -60dBs (Dynamic microphone) Microphone HDST-1/HDST-2 -14dBs w/wo +9V power (carbon microphone) XLR type connector 2channels Data trunk signal RS-422 1channel Return signal HD-SDI 1channel...
Page 25 Green: Indicates power is ON. DTA-55 is active. Red : Indicate power is standby. The switch to select the power source to DTA-55. BS : A power supply is supplied through a Triax cable from BST-55. EXT: A power supply is supplied through DTA-55 DC IN connector.
Page 26 When Green Tally is asserted, this indicator is illuminated. Accessories, such as 9 inches Viewfinder, are attached. When Red Tally is asserted, this indicator is illuminated. It also lights up while the CALL button on any control panel is pressed.
Page 27 1: Intercom channel 1 and PGM-1 volume controls are moved to the camera head. Intercom channel 2 and PGM-2 volume control remains. OFF: DTA-55 Intercom volume control knob is enabled for intercom channel 1 & 2. 2: Intercom channel 2 and PGM-2 volume controls are moved to the camera head.
Page 28 Controls the volume of PGM-2 for headsets. Controls the intercom microphone of INC-1 and INC-2. Auto: Detection of sound, such as voice, turns ON a microphone circuit automatically. OFF: The microphone circuit turns OFF. Connects the headset-1. Connects the headset-2. Outputs the Q-TV (4:2:2 SD-SDI) signal that is sent from BST-55.
Page 29 Connects a microphone for MIC-2. Outputs the camera head monitor signal. (HD-SDI) The kind of the monitor signal can be selected by camera head menu. Connects a remote control panel, when the camera is operated without BST-55. Inputs external power supply (+12V DC), when the camera is operated without BST-55. Outputs the return video signal, when the camera is operated together with BST-55.
Page 30 Connects here a Triax cable. The cable clamp for protection of the Triax cable.
Page 33 This section explains the HDTV formats displayed on the menu and the self-diagnosis. Vertical scanning frequency (59.94Hz in this case) Scanning mode (I: interlace/P: progressive) Number of effective scanning lines (1080 lines in this case) DTA-55 is supporting the following formats.
Page 36 Please read THE SAFETY PRECAUTIONS in the beginning of this document and follow the precautions for use. Combine DTA-55 with a camera head. Slide DTA-55 toward the camera head from back of the camera head to connect the connectors on each other. Tighten upper setscrews and lower setscrews alternately.
Page 37 Please make sure that the power switch is “OFF” before connecting this product and peripheral equipment such as the Base station.
Page 39 Connect the CAMERA connector on the rear of the BS to the CAMERA connector on the DTA-55 via a camera cable.
Page 40 Connect the OCP/CCP connector on the rear of the BS and the COMM connector of the OCP with a CP cable.
Page 41 BST-55 is started, and lights the BS MAIN POWER indicator. The power supply of BST-55 is turned on and lights the BS MAIN POWER indicator. In addition, the condition of the camera cable between DTA-55 and BST-55 is automatically checked. When the cable condition is detected as normal, the NORMAL indicator is illuminate.
Page 42 This power control is only the camera head. The power supply of BST-55 is still "ON".
Page 44 *1 For the maximum and minimum extension length of the cables, refer to “BSH-200/CPH-200 setup Manual”. *2 For network operation, commands can be selected from an OCP or MCP. For video signals, the operating configuration to select the signals from the CSU-110 is also accepted. However, an external power supply (DC voltage) is required when the MCP-200 is used and the extension length of the cables is long.
Page 46 The number of camera head to be selected varies according to the MCP to be used.
Page 47 This connection configuration is available for the BST-55.
Page 48 Used to connect DTA-55 to BST-55 by Triax cable. A customer can specift the maker of CAMERA connector.
Page 49 Receptacle DTA-55 Cable Insertion side Receptacle DTA-55 Cable Insertion side...
Page 50 Receptacle The maximum current is 0.5A. DTA-55 Cable Insertion side Receptacle DTA-55 Cable Insertion side...
Page 51 The connector type is different according to the intercom headset. The carbon or dynamic intercom microphone can be used. The switching of carbon and dynamic microphone is able to control from a camera head Receptacle DTA-55 Cable Insertion side...
Page 52 Receptacle Receptacle DTA-55 Cable Insertion side Receptacle DTA-55 Cable Insertion side...
Page 55 There is an item which should be set up before using when DTA-55 is combined to a camera for the first time. Also, this should be set up when DTA-55 is combined to a different camera. This setup uses the menu of the camera.
Page 56 The menu function can set up the items to display in the viewfinder and other various status of the camera. And the setup contents are stored in the camera head.
Page 59 Select the signal for MON SDI output. (MON SDI BNC: on the rear of DTA-55.) Enter the Main menu (2/3). Select “VIDEO OUTPUT” and enter the Submenu. Select “MON SDI OUTPUT” and choose from items. *Initial value is "VF". (HDK-55)
Page 63 When the temperature inside the camera or adaptor increases abnormally, a warning indicating an abnormal temperature rise flashes on the viewfinder screen. When this warning is displayed, take the measures which lower the internal temperature of a camera promptly If a fan stops due to some failure, a warning indicating an irregular fan stop flashes on the viewfinder screen. To prevent temperature increase inside the camera, cooling fans are provided at the top of the camera and adaptor.
Page 64 If DTA-55 does not turn on even if the peripheral equipments were connected correctly, the fuse may have blown. If so, replace the fuse in the following procedures. The automotive fuse (ATO fuse) is used for DTA-55. ATO fuse is classified by colour, and "15A" type is Blue.
Page 65 The fuse has blown if the portion enclosed with a circle has melted. If so, exchange the fuse. (same or an equivalent.)
Page 67 This chapter contains the revision information of user-specific request design that requested from users.
