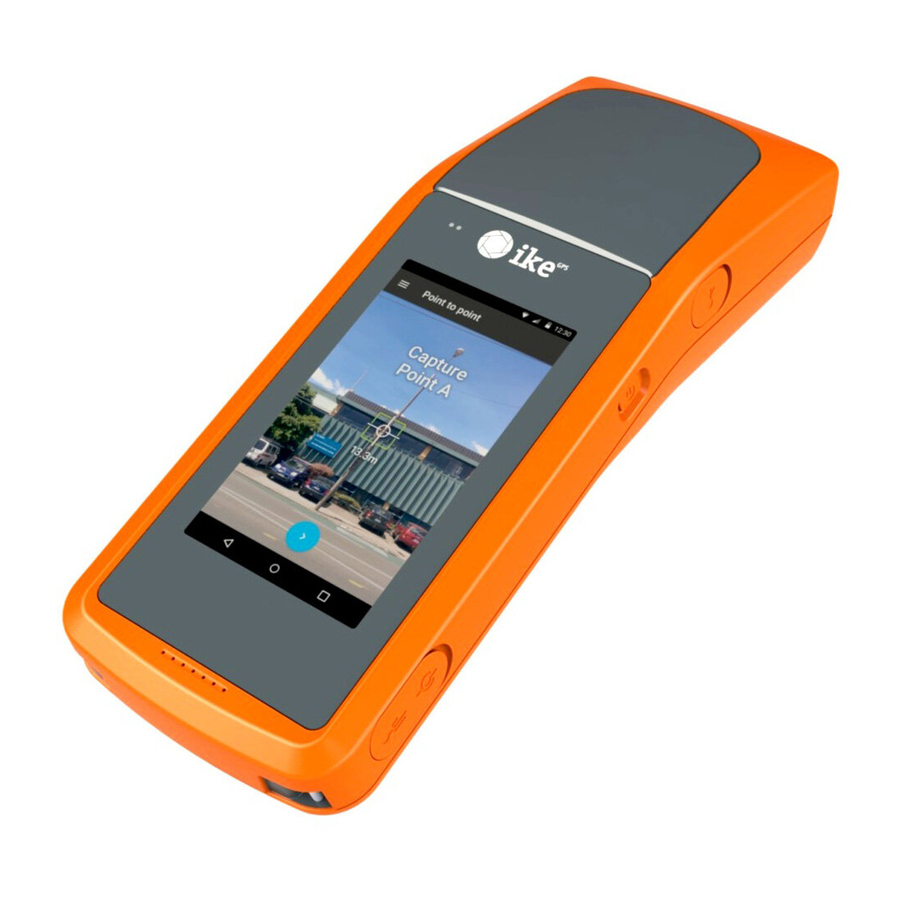

IKE 4 Setup Manual

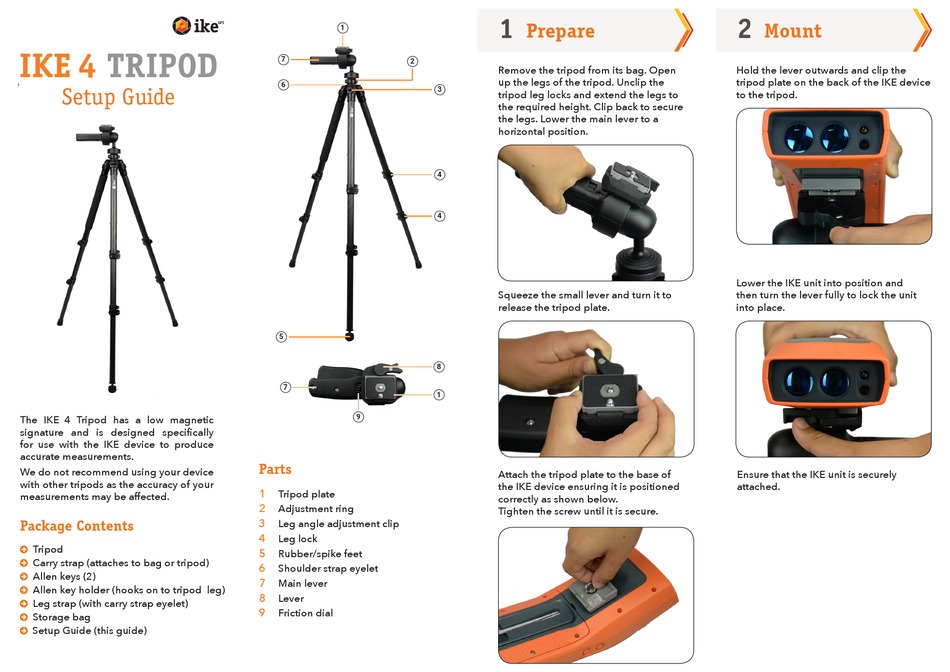

IKE 4 TRIPOD
Setup Guide
The IKE 4 Tripod has a low magnetic
signature and is designed specifically
for use with the IKE device to produce
accurate measurements.
We do not recommend using your device
with other tripods as the accuracy of your
measurements may be affected.

Package Contents

Tripod

Carry strap (attaches to bag or tripod)

Allen keys (2)

Allen key holder (hooks on to tripod leg)

Leg Strap (with carry strap eyelet)

Storage bag

Setup Guide (this guide)

1
7
2
6
3
4
4
5
8
7
7
1
9

Parts

1
Tripod plate
2
Adjustment ring
3
Leg angle adjustment clip
4
Leg lock
5
Rubber/spike feet
6
Shoulder strap eyelet
7
Main lever
8
Lever
9
Friction dial
1

Prepare

Remove the tripod from its bag. Open
up the legs of the tripod. Unclip the
tripod leg locks and extend the legs to
the required height. Clip back to secure
the legs. Lower the main lever to a
horizontal position.
Squeeze the small lever and turn it to
release the tripod plate.
Attach the tripod plate to the base of
the IKE device ensuring it is positioned
correctly as shown below.
Tighten the screw until it is secure.
2

Mount

Hold the lever outwards and clip the
tripod plate on the back of the IKE device
to the tripod.
Lower the IKE unit into position and
then turn the lever fully to lock the unit
into place.
Ensure that the IKE unit is securely
attached.
