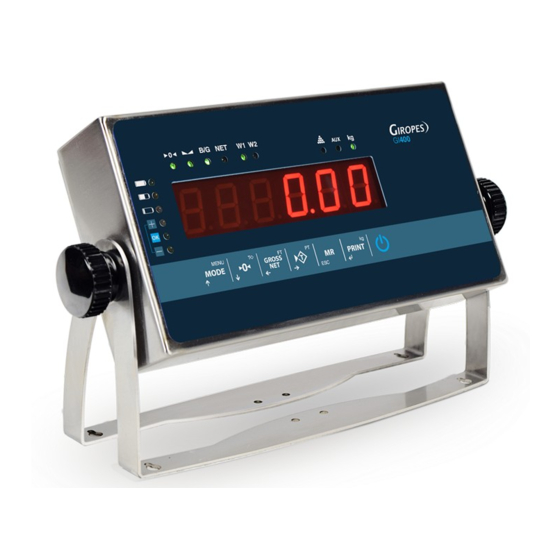

Giropes GI400 LCD User Manual

Industrial weighing indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

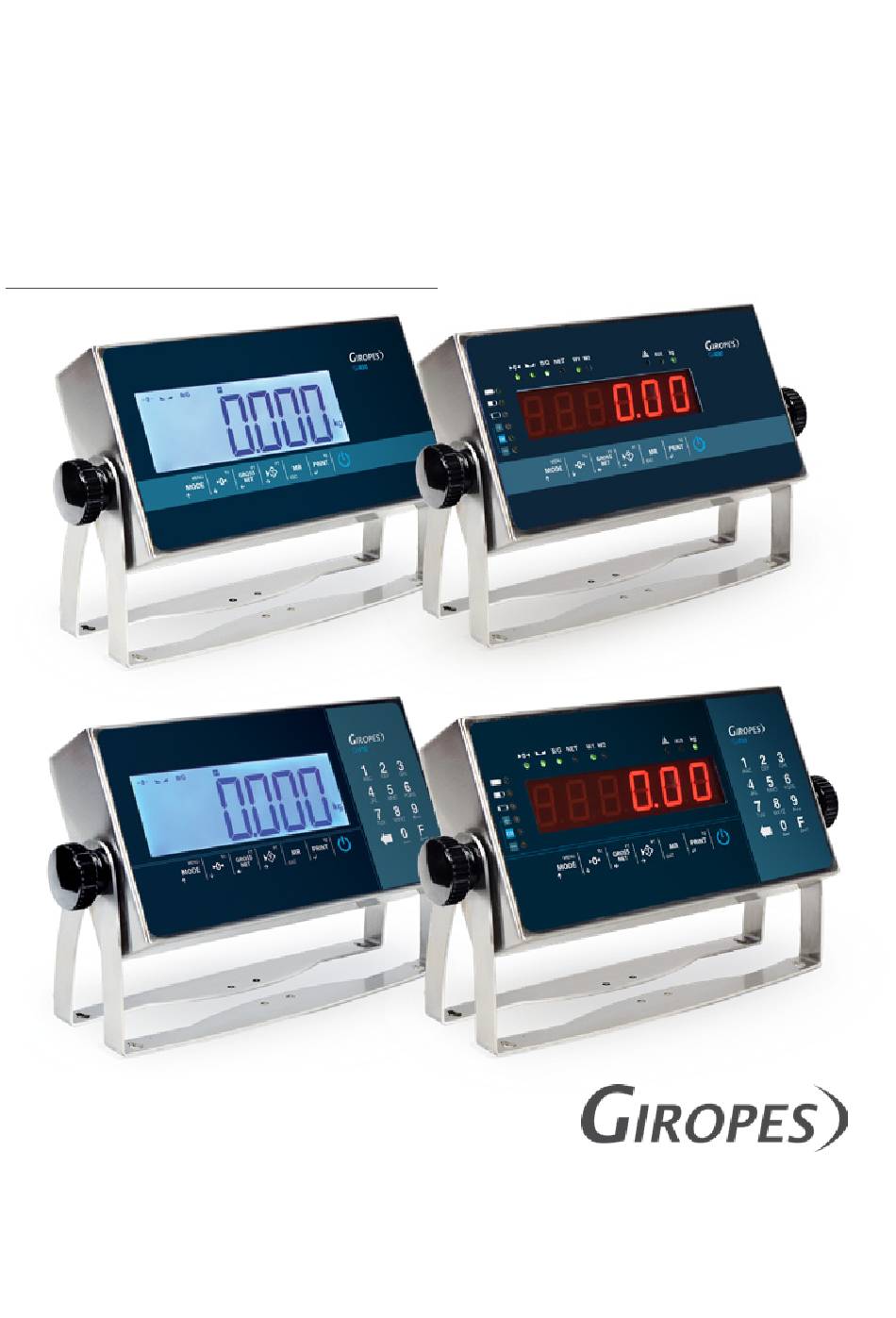

GI 400 - GI 410
USER MANUAL
EN
INDUSTRIAL WEIGHING INDICATOR
V.4.5_29/11/2018
GI410 LCD
El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas
regulaciones oficiales./Le constructeur se réserve le droit de modifier les caractéristiques de ses produits en vue d'y apporter des améliorations techniques
ou de respecter de nouvelles réglamentations./The manufacturer reserves the right to modify the specifications of its products in order to make technical
improvements or comply with new regulations.
GI400 LCD
GI410 LCD
GI410 LED
Pol. Empordà Internacional Calle F. Parcela 15-16
17469 VILAMALLA - (Girona) SPAIN
T. (34) 972 527 212 - F. (34) 972 527 211
GI400 LED
GI410 LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GI400 LCD and is the answer not in the manual?

Questions and answers

Related Manuals for Giropes GI400 LCD

Summary of Contents for Giropes GI400 LCD

  • Page 1 GI 400 - GI 410 USER MANUAL INDUSTRIAL WEIGHING INDICATOR V.4.5_29/11/2018 GI400 LED GI400 LCD GI410 LCD GI410 LED GI410 LED GI410 LCD Pol. Empordà Internacional Calle F. Parcela 15-16 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 - F. (34) 972 527 211 El fabricante se reserva el derecho de modificar sin previo aviso las características de sus productos para introducir mejoras técnicas o cumplir con nuevas...

  • Page 2: Table Of Contents

    USER MANUAL GI400 / GI410 1. MECHANICAL DESCRIPTION 1.1 FRONT PANEL 1.2 BACK PANEL 2. CONNECTION 2.1 TEST PHASE 2.2 DISPLAY OF THE SERIAL NUMBER 2.3 SETTING THE INITIAL ZERO 3. EXECUTABLE FUNCTIONS 3.1 SETTING THE SCALE TO ZERO 3.2 WEIGHT 3.3 TARE, CONSECUTIVE TARAS, GROSS-NET 3.4 BLOCKING/UNBLOCKING TARE 3.5 MANUAL TARE...

  • Page 3: Mechanical Description

    USER MANUAL GI400 / GI410 1. MECHANICAL DESCRIPTION 1.1 FRONT PANEL SIGNS Signal of limits (checkweigher) Signal of level of battery (work with battery optional) Signal of zero Signal of steady weight Gross weight Net weight Weighing range Piece counting Units of measure Numerical keyboard (only 410 models)
  • Page 4 USER MANUAL GI400 / GI410 KEYBOARD DEFINITION Short Press: Access to User Menus Long Press: Technical Menu Short Press: Do zero Long Press: Remove tare Short Press: Show Gross/Net Long Press: Set tare Short Press: Do the tare Long Press: Introduce tare manually Short Press: Weight totalization and total accumulation print...

  • Page 5: Back Panel

    USER MANUAL GI400 / GI410 1.2 BACK PANEL INOX IP54 INOX IP65 Power connector IEC PG9 for power cable Connector RS232-Com1 (SubD 9 male tracks) PG7 for RS232-COM1 Connector RS232-Com2 (SubD 9 male tracks) PG7 for RS232-COM2 Connector Load cell (SubD 9 female tracks) PG7 for load cell cable Calibration switch Calibration switch...

  • Page 6: Connection

    USER MANUAL GI400 / GI410 2. CONNECTION Connect the terminal to the platform through a DB9 connector. To switch on the terminal you must press for some seconds the key . To switch off the terminal it is necessary to press for some seconds the key ;...

  • Page 7: Executable Functions

    USER MANUAL GI400 / GI410 EXECUTABLE FUNCTIONS 3.1 SETTING THE SCALE TO ZER0 When the user presses the key assumes the metrological function of weight zeroing, in the modality described below, in reference to the current regulations. 1.Steady weight (the bright sign of steady weight is on);...

  • Page 8: Weight Totalization

    USER MANUAL GI400 / GI410 3.7.1 SUCCESSIVE MANUAL ACCUMULATIONS Select the accumulation and printing in manual mode. Place the weigh on the scale, press key when stable indication turns on. If we want to accumulate again, press the key again. The indicator will continue memorizing if: the scale has been discharged previously or tare is done or addicional weigh has been added.

  • Page 9: Calculation Of The Average Unit Weight Calauu

    USER MANUAL GI400 / GI410 THE AVAILABLE FUNCTIONS ARE: CALCULATION OF THE AVERAGE UNIT WEIGHT CAL AUU PIECE COUNTING CHECKWEIGHER CHECt CHECKWEIGHER SIMPLE CCt SI IT SHOWS THE WEIGHT WITH ONE MORE DECIMAL FOR MORE ACCURACY by 10 ACCUMULATION ACCUMU SUBTOTAL Subtot SET PRODUCT CODE...
  • Page 10 USER MANUAL GI400 / GI410 4.3.1 TARGET TYPE 1 T.TYPE 1 If the user chooses the T. TYPE 1 it allows to choose the inferior limits and the superior ones with a porcentage of the TARGET value. Exemple: -PC. 010 (We chose how lower limit 10% below the Target) PC.

  • Page 11: Checkweigher Simple Cct Si

    USER MANUAL GI400 / GI410 4.3.3 TYPE BIP bEEPt First we choose the area in which we want the beep to sound, this will occur when entering the selected zone: no tAr : When it’s not in the target range. LoU: Below the target range.

  • Page 12: Accumulation Accumu

    USER MANUAL GI400 / GI410 4.6 ACCUMULATION ACCUMU This function carries out the process of auto accumulation and ticket printing TO MAKE THE AUTO-ACCUMULATION FUNCTION WORK, IT IS NECESSARY TO SELECT FIRST THE PROTOCOL PRINT IN COM1 OR COM2, AS IT IS DESCRIBED IN THE SECTION 5 “PARAME” (POINT 6.1) DISPLAY STEPS ACUMUL...

  • Page 13: Number Of Ticket Ntic

    USER MANUAL GI400 / GI410 4.10 NUMBER OF TICKET NTIC With this function the user can print in the ticket a ticket number which is going to increase automatically at the end of the weight, (number of delivery or number of ticket). Use the cursor keys for change the value and enter escape to exit or memorize.. 4.11 WEIGHT MODE WHEiGt The user access the normal mode of weighing again.

  • Page 14: Limits Limit

    USER MANUAL GI400 / GI410 Z.DISC • (weight): This option programs the weight within which the equipment determines that the dosage has been finished, (maximum of possible waste weight that may stay without the alarm ringing) • (timer): Time waste of material, if the weight on the screen does not vary in this space of time, it is going to activate the relais of alarm (RL4).

  • Page 15: Activity Control 2 Rel

    USER MANUAL GI400 / GI410 DISPLAY Goes to next parameter without erase the information. RESET It places at 0 all the relays so that it deactivates all of them. START It programs the value, every value above this one is going to activate the relays of the L.INF, RELAYS 1 (S xx.xxx) It programs minimum value, every value below this one is going to activate the relays of the L:INF, RELAYS 1 L.LoU...

  • Page 16: Memorized Taras Tlu

    USER MANUAL GI400 / GI410 4.16 MEMORIZED TARAS TLU • The visor has 5 memorized tares: TLU 1, TLU 2, TLU 3, TLU 4, TLU 5. • Before you can use this function you must edit and activate the desired tare from the user menu/TLU •...

  • Page 17: Function Menu Funcio

    USER MANUAL GI400 / GI410 EXAMPLE We are going to take as example a hopper scale with a back of scale of 300kg. Of this scale we only use the range up to 200kg for the exit of 20mA as this is the maximum capacity of the hopper. In F.S we will introduce 200kg and we will adjust the value of An_Max so that in the exit we can register 20mA with a multimeter or an automaton.
  • Page 18 USER MANUAL GI400 / GI410 DIRECT KEYS FUNCTION Pr. File 2 Filxxx (Select File 2) XXXXXX CODEE Edit item 2 menu DESCRI 24 alphanumeric characters Activates the item 2 Deactivates the item 2 PrTare Select tare Number or edit DIRECT KEYS FUNCTION Edit pretare menu TARAXX...
  • Page 19 USER MANUAL GI400 / GI410 DIRECT KEYS FUNCTION TOTAL FILE 1 Filxxx It shows the total of the weighing associated to the item 1 Gross Tare It shows the totals of the weighing Pieces associated to the item2 TotWeigh FILE 2 Filxxx Gross Tare...
  • Page 20 USER MANUAL GI400 / GI410 CHANGE THE NAME OF THE ITEM1 AND THE ITEM 2 Enter the technical no metrological menu, inside the menu CONFIG, select the option CODES. Choose the items that you need to change the name from FILE1, FILE2. Write the new name of the item in the numerical keyboard.
  • Page 21 USER MANUAL GI400 / GI410 CONNECT WEIGHING TO ITEMS AND TARE Each weighing can be connected to one or more items and/or a stored tare, to do so the user first needs to activate them. To do it first introduce the activation code of each one of them.
  • Page 22 USER MANUAL GI400 / GI410 LIST FILTERED PER ITEM1, ITEM2 AND DATE By using the combination of the keys , the user can select the number of item2 (PRO001 ),, then the number of the item1 (CAM001) and decided not to filter by date ( date NO) FILTERED LIST Report: Weighing...
  • Page 23 USER MANUAL GI400 / GI410 FILTERED LIST PER ITEM2 In this case we use the keys and we select the number of item2(PR0001) FILTERED LIST PER ITEM2 Report: Weighing 11/04/16 --------------------------------- Product number: Product code: 005508 Product: Gross Total: 3.000 kg Tare Total: 0.200 kg Net Total:...

  • Page 24: No Metrological Technical Menu

    USER MANUAL GI400 / GI410 DELETING ÍTEM1 This operation can be done by using the combination of the keys , we can delete the information related to an item. To do so the user must select the desired item CAM001 and then choose between ALLCAM (it deletes all the information which refers to CAM001 including the item CAM001 ) and TOTCAM( it deletes the cumulated total referring to CAM001 , without deleting the item CAM001 ) DELETING ITEM2 This operation is done using the combination of the keys...

  • Page 25: Menu Parame : Com1, Com2, Rs485 Y Com4

    USER MANUAL GI400 / GI410 6 Technical menu NO metrologic Parameters (Parame) COM1, COM2, RS485, COM4 Frame Baud Protoc Addres Delive Configuration (Config) Filter Date Time I.COUNT Language CA.PASS AUTARB Stand.by (solo para LED) BLIGHT (only for LCD) Print Codes Power Repeat Tcheck (visible only in open calibration)
  • Page 26 Currently the terminal includes different protocols of communication that can be used through the port of RS-232: nInGUn No protocol Enabled GrAVIT Protocol – GRAVIT Printer Protocols ALIbI Fiscal Memory Protocol GIPEs Giropes Protocols GICoNF Communication protocol with GISCALE SPI2 Protocol – SIPI II rAFEL Protocol - RAFELS tol dS Protocol –...

  • Page 27: Ethernet Menu

    USER MANUAL GI400 / GI410 ADDRESS AddrES It allows to adjust the direction of the terminal when the RS485 is used in the protocols that contemplate it (SSCAR and MULTIP). SEND (Mode of transmission) dELiuE It allows the configuration of the terminal to send the information to the PC through one of the following modes: Pc request PcrE: the terminal sends the chain of information, depending on the protocol, when the order from the PC has been received.
  • Page 28 USER MANUAL GI400 / GI410 In the “TCP / UDP mode” tab you can change the port. You can change the username and / or password in the Misc Config If you forget them, you have to open the device and press the RST pads for 5s to reload the factory settings.

  • Page 29: Configuration Menu

    USER MANUAL GI400 / GI410 6.3 MENU CONFIGURATION ConFIG Once the PIN has been introduced, the user is in the mode of restricted programming, move up to . By using this function the user can program the following NO METROLOGICAL parameters: filters FiLtEr date...

  • Page 30: Abt Vm

    USER MANUAL GI400 / GI410 6.4 ABT VM Shows the different versions of the program. 6.5 DEFAUL Restore factory defaults. 7. PRINTER The available printers are the following ones: IMP05 IMP27 IMP28 The working of the printer is described below: When the user presses the key the weight is printed, with its number of weighing and its corresponding tare if the mode of transmis- sion is manual (5.1.15).
  • Page 31 USER MANUAL GI400 / GI410 FORMATS COUNTING F. Imp. 2 F. Imp. 2 (numeric keypad only) Date: 28/02/2018 Time: 11:32:35 Weighing Number: PMU: 20000.001953 g Date: 28/02/2018 Time: 11:15:12 Gross: 654 kg T code: 123 Tare: 0 kg Truck: Volquete 654 kg Grain: Piedras Units...
  • Page 32 USER MANUAL GI400 / GI410 FORMATS FOR ACCUMULATION (MANUAL OR AUTOMATIC) WITH TOTALITZATION F. Imp 4 (Linea a linea) F. Imp 5 3 header lines of 40 characters editable with the software 3 header lines of 40 characters editable with the software “configuration tool”...

  • Page 33: Error Messages

    USER MANUAL GI400 / GI410 LEGEND The initial value of the editable counter from which each new ticket is added (in the 1-3 format, the weighing number = ticket number. If the ticket number is at zero, it will not appear). 2- Fixed editable number (if we have the value to 0, will not appear in the ticket) 3- Fixed editable field (if we have the value to 0, will not appear in the ticket.

  • Page 34: Connections

    USER MANUAL GI400 / GI410 9. CONNECTIONS 9.1 CONNECTION SCHEME IP54 9.1.1 LOAD CELL The device is completely supplied for the connection of the transducer (load cell). The kit includes: • 1 male connector to be welded (9 tracks) • 1 coverage/blocking cable protected The cable that comes from the transducer or transducers is connected by welding it to the device.
  • Page 35 USER MANUAL GI400 / GI410 9.1.2 INTERFACE SERIE RS-232 COM1 Y COM 2 The instrument has serial outputs type RS232 Description of the connector pin-out male exit series RS232-com1 n° pin Description Direction TX (RS232c - transmitter) Exit RX (RS232c - receiver) GND (signal common) 9.1.3 ADDITIONAL BOARD RS-485 COM2 (DB9) n°...
  • Page 36 USER MANUAL GI400 / GI410 9.2 CONNECTION SCHEME IP65 / IP68 9.2.1 LOAD CELL CELL CABLE CONNECTOR J19 pin 1 IN+ (out célula) pin 2 IN- (out célula) pin 3 SENSE+ pin 4 SENSE- pin 5 EXC+ pin 6 EXC-...
  • Page 37 USER MANUAL GI400 / GI410 9.2.2 SERIAL INTERFACE RS232 COM 1 Y COM 2 COM 1 COM 2 RS232 RS232 CONNECTOR J9 CONNECTOR J10 pin 1 pin 1 pin 2 pin 2 pin 3 pin 3 pin 4...
  • Page 38 USER MANUAL GI400 / GI410 9.2.3 OPTIONAL SCHEME RS485 4-20mA pin 1 RTX + pin 2 RTX - pin 5 EARTH 9.2.4 OPTIONAL SCHEME 4-20MA/ 0-10V ANALOGIC (DB9) 9.2.5 OPTIONAL SCHEME 4I/4O (RELÉS) RELES 4-20mA P1 P2 P3 P4 P5 P6 P7 P8 P9 P1 P2 P3 P4 P5 P6 P7 P8 P9 CONNECTOR J2 4-20mA...

  • Page 39: Dsd Memory

    USER MANUAL GI400 / GI410 10. DSD MEMORY IP54 / IP65 / IP68 It is possible to increase the operation of the weight indicator with the additional plate that performs the function of FISCAL MEMORY; It consisted in filing all the weight values transmitted to a computer for a subsequent processing or integration of the data transmitted by the COM serial channel.

  • Page 40: Removal Of Electronic Equipment

    USER MANUAL GI400 / GI410 11. REMOVAL OF ELECTRONIC EQUIPMENT For the European Union customers All the products that have arrived to its ending in their life cycle must be restored to their builder so that they can be recycled. For further information about the restoring modalities, please contact your supplier.
  • Page 41 USER MANUAL GI400 / GI410 NOTES...
  • Page 42 USER MANUAL GI400 / GI410 NOTES...
  • Page 43 USER MANUAL GI400 / GI410 NOTES...
  • Page 44 USER MANUAL GI400 / GI410 Pol. Empordà Internacional Calle F. Parcela 15-16 17469 VILAMALLA - (Girona) SPAIN T. (34) 972 527 212 - F. (34) 972 527 211...
