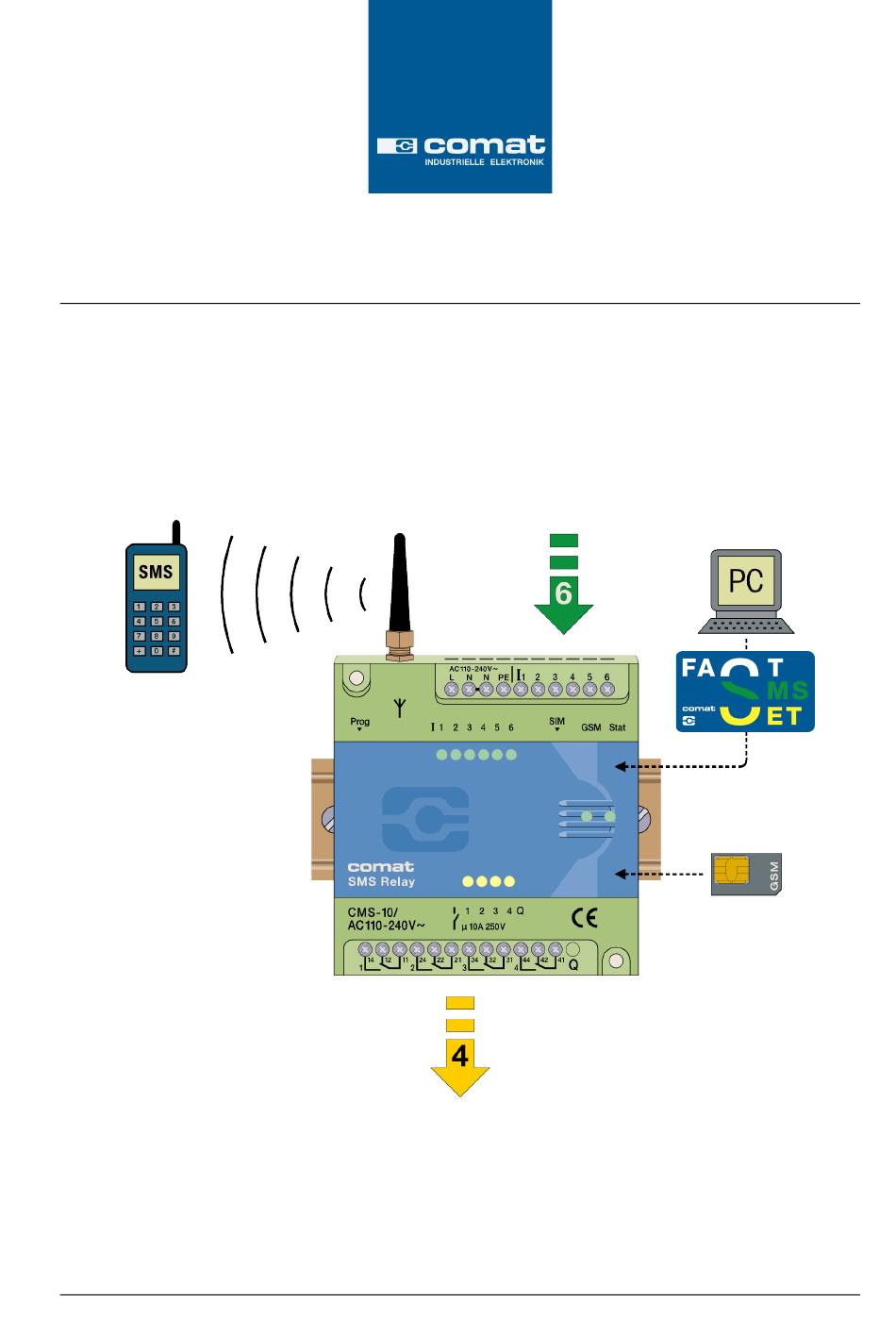

- Page 1 Comat SMS Relay Operating Instructions Kühn Controls AG, Gräfenhäuser Str. 14, D-75305 Neuenbürg, Germany Tel. +49 (0)7082-94 00 00 sales@kuehn-controls.de www.kuehn-controls.de Fax +49 (0)7082-94 00 01 ba_smsrelay_0706e.doc...
-
Page 2: Table Of Contents
5.1.2 Status-LED........................8 5.1.3 Inputs / Outputs........................8 5.2 Power failure........................9 5.3 Diagnose..........................9 6 Configuration of the SMS Relay with the „FAST SMS Set“ ™ Software........9 6.1 General..........................9 6.2 Create connection....................... 9 6.3 Edit Telephone book......................10 6.4 Settings..........................10 6.4.1 Automatic provider search..................... -
Page 3: Sms Relay Operating Instructions
The same thing happens if there is a power loss, whereby the SMS relay sends out a last message. If the power is restored, the CMS 10 sends back a further message. All these options can of course be switched on and off if required. -
Page 4: Application Examples
Voltage monitoring Safety instructions The electrical installation of the SMS relay must be carried out by a competent person. Please read the complete operating instructions before installation and commissioning. This device is not suitable for monitoring sensitive installations or time critical processes. -
Page 5: Installation Details/ Scope Of Supply
When connecting to the 230VAC mains it is absolutely necessary to ensure that the power supply and the inputs power supply originate from the same phase i.e. a voltage above 240VAC must not arise on the device. The SMS relay must be connected according to the following schematic:... -
Page 6: Software
To avoid this, change the screen resolution of your computer system. Select “Start” – “System controls” – “Display” and then the register “Settings”. Please set the screen resolution to 1024 x 768 pixels in minimum. Operating instructions SMS Relay ba_smsrelay_0706e.doc... -
Page 7: Installation
Please follow the set-up programme instructions during installation. The SMS relay starts up automatically once power has been supplied. When the signal is strong enough the device will register itself in the GSM network (according to the SIM card settings, depending on provider). -
Page 8: Run Mode
Comat SMS Relay Run Mode LED status display The SMS relay has two LEDs, the GSM LED und the status LED. Both LEDs can be seen from the outside and are located below the cover. The following states are displayed: 5.1.1 GSM-LED... -
Page 9: Power Failure
The SMS Relay together with the programming software „FAST SMS Set “ allow to display the actual signal quality. For that function the SMS Relay has to be connected with a PC / laptop via the programming cable. To get to the diagnose select “Configuration – Diagnose”... -
Page 10: Edit Telephone Book
SIM card after three incorrect inputs of PIN1 is described. In order to do this the SIM card must be removed from the SMS Relay and inserted into a mobile phone. Now the card can be unblocked according to the network providers details. -
Page 11: Automatic Provider Search
SIM card. This number depends on the GSM provider. In the „SMS Relay description“ field a name for the SMS relay can be entered. All outgoing messages from this SMS Relay are provided wit this name for identification. The available number of characters for a message will be shortened according to the number of characters of the name. -
Page 12: Status Messages
The message contents can be edited. • Messages in case of power failure In case of voltage failure the SMS relay sends a last signal to receiver No.1 to 5 of the status messages. The message contents can be edited. •... -
Page 13: Parallel Message Handling
If the confirmation code word is not activated, the phone number identification is carried out as a security check and it is sufficient to send an empty SMS to the SMS Relay. PLEASE NOTE The display of special characters in the GSM network can cause problems. -
Page 14: Delayed Switching On
Input configuration 6.6.3 Delayed switching on If there is an input signal, the respective message can be time delayed, i.e. the SMS relay only sends the pre-defined message after expiry of the preset time, if the signal is still there. -
Page 15: Output Configuration
Switching commands are only accepted from numbers which are in the telephone book . This means, an output can be switched on or off per SMS. The SMS Relay acknowledges this after carrying out the actions. Text messages for switching on and off can be entered. -
Page 16: Language Selection
Language selection General The SMS Relay configuration software, Fast SMS Set, has the possibility to change the language. The languages can be chosen from a library. It is not necessary to re-start the programme after selecting the language. In order to do this select “Language – Select language“... -
Page 17: Technical Items
Comat SMS Relay Technical items Dimension SMS Relay - Dimension Technical datas Operating voltage AC 110-240V~ 50/60Hz DC 12-48V max. 10% Power consumption 8VA / 6W Switching capacity 4x 10A 250V Temperature range Temp: -25…+55°C Rel. humidity: 5…95% (non condensing)
