FL20X Operations Guide
This manual outlines the operating procedures for all FL20X series products

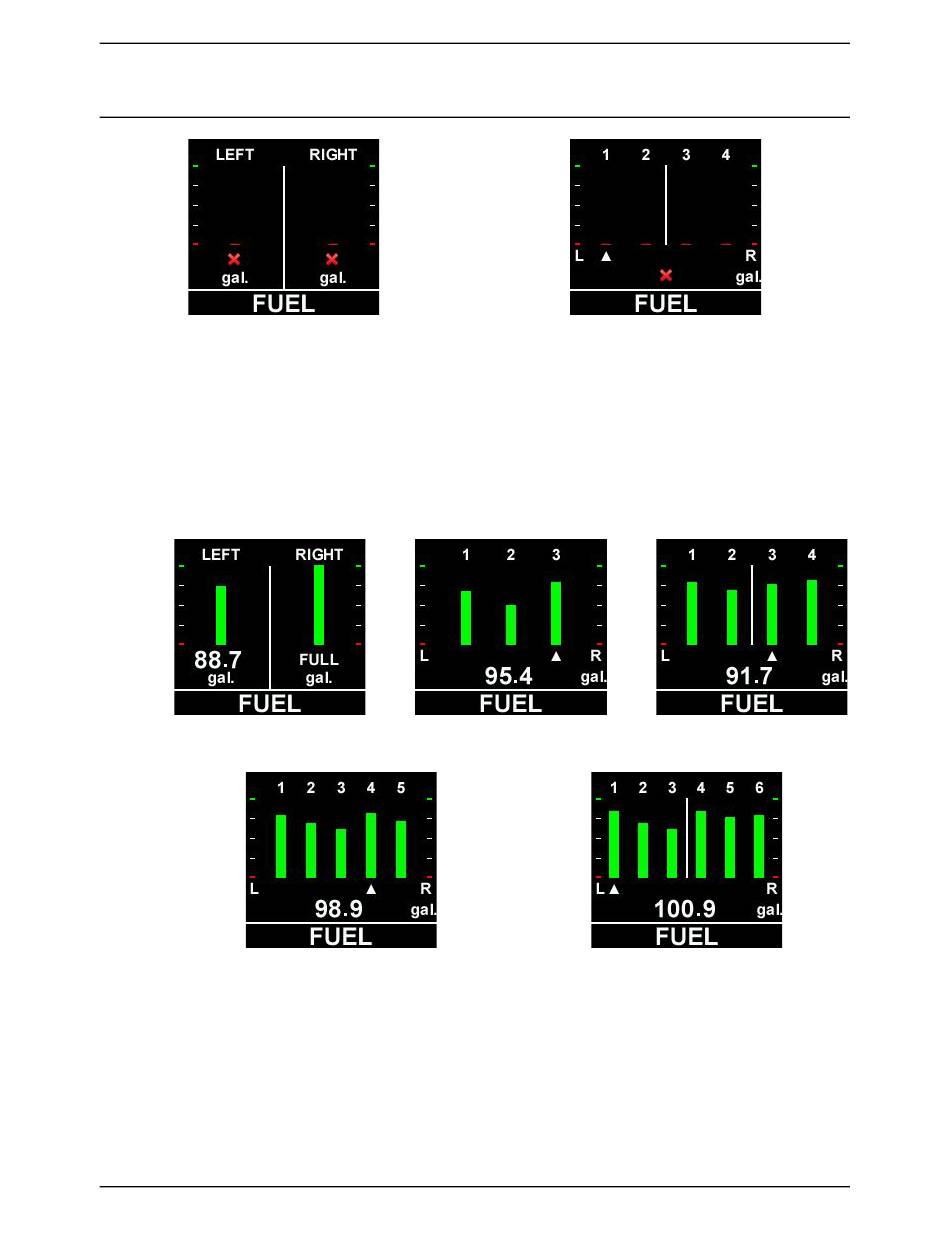

FUEL INSTRUMENT NOT INSTALLED CORRECTLY
FLIGHT PROHIBITED

1. Power Up / Default Screen

Displays the fuel level in each tank. Colors are determined by the range values
as set during installation. Tanks are indicated from leftmost to rightmost.
FL202
FL203
FL204
FL205
FL206
For the FL202 instrument, the quantity in each tank is permanently displayed
beneath each indicator bar. For all other instruments, use the bottom button to
scroll between tanks. The fuel quantity displayed corresponds to the tank number
with the arrow beneath the bar indicator.
Press the top button to move to the next display screen.
Aerospace Logic Inc.
Document # S200-FL20X-005
Tel. 416-628-0725
Rev 1.3 02/28/2017
www.aerospacelogic.com
Page 1 of 2
